iManager NetEco 6000
Device Installation and Commissioning Guide
4 Connecting Monitoring Cables to Devices
Copyright © Huawei Technologies Co., Ltd.
108

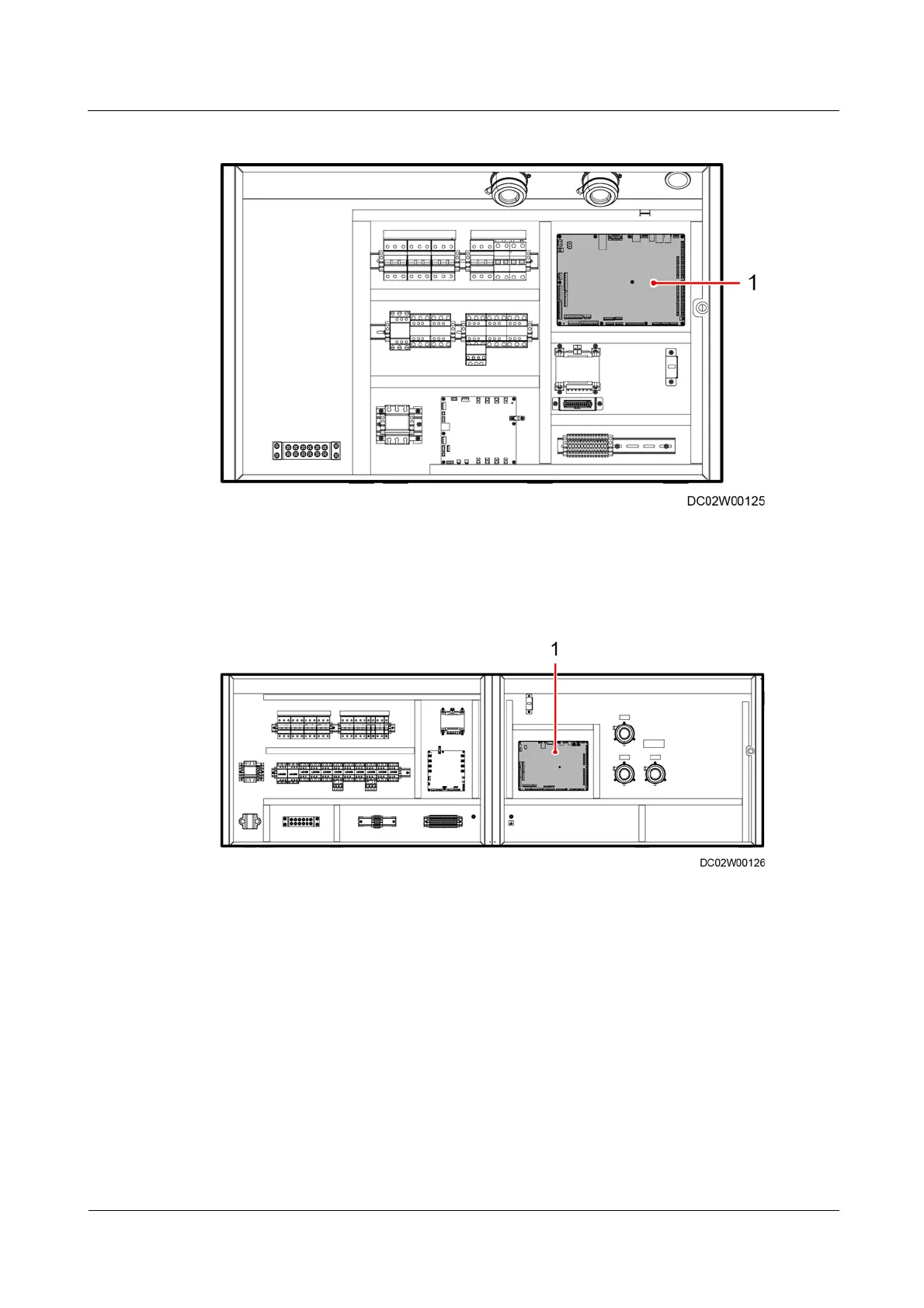

Figure 4-49 Main control board of the NetCol8000-A050
(1) The main control board
Figure 4-50 Main control board of the NetCol8000-A100
(1) The main control board
