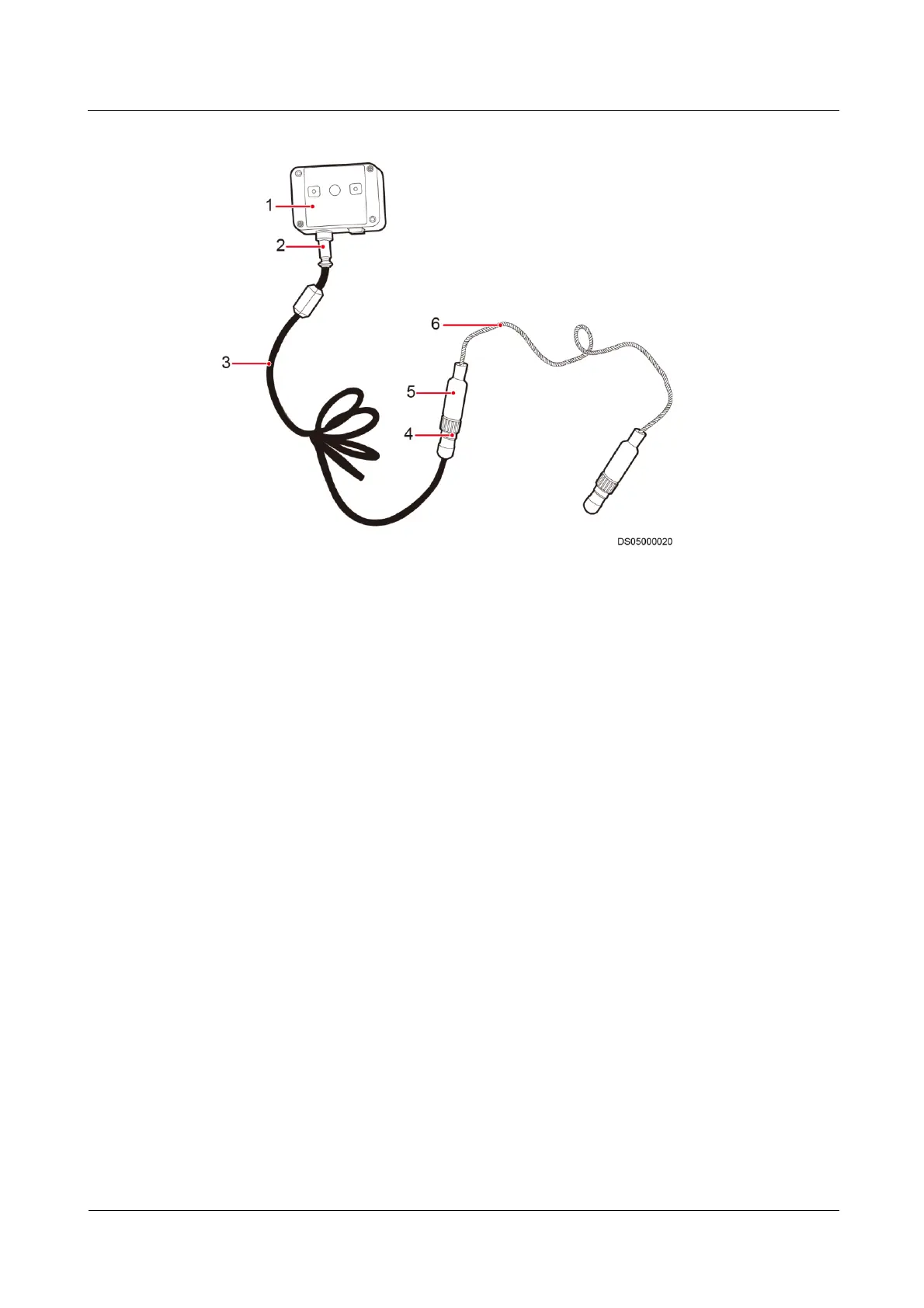

Figure 7-10 Water sensor components
(2) Conversion cable end A,
connecting to the water detector
(4) Conversion cable end B,
connecting to water the
detection cable
(5) Water detection cable end A,
connecting to the conversion
cable
(6) Water detection
cable
Recommended tool and material: crimping tool
Procedure
Step 1 Replace the water sensor.
1. Remove the conversion cable at the conversion port for the water sensor and conversion
cable.
2. Connect a new water sensor to the conversion cable, as shown in Figure 7-11.
3. Secure the new water sensor.
