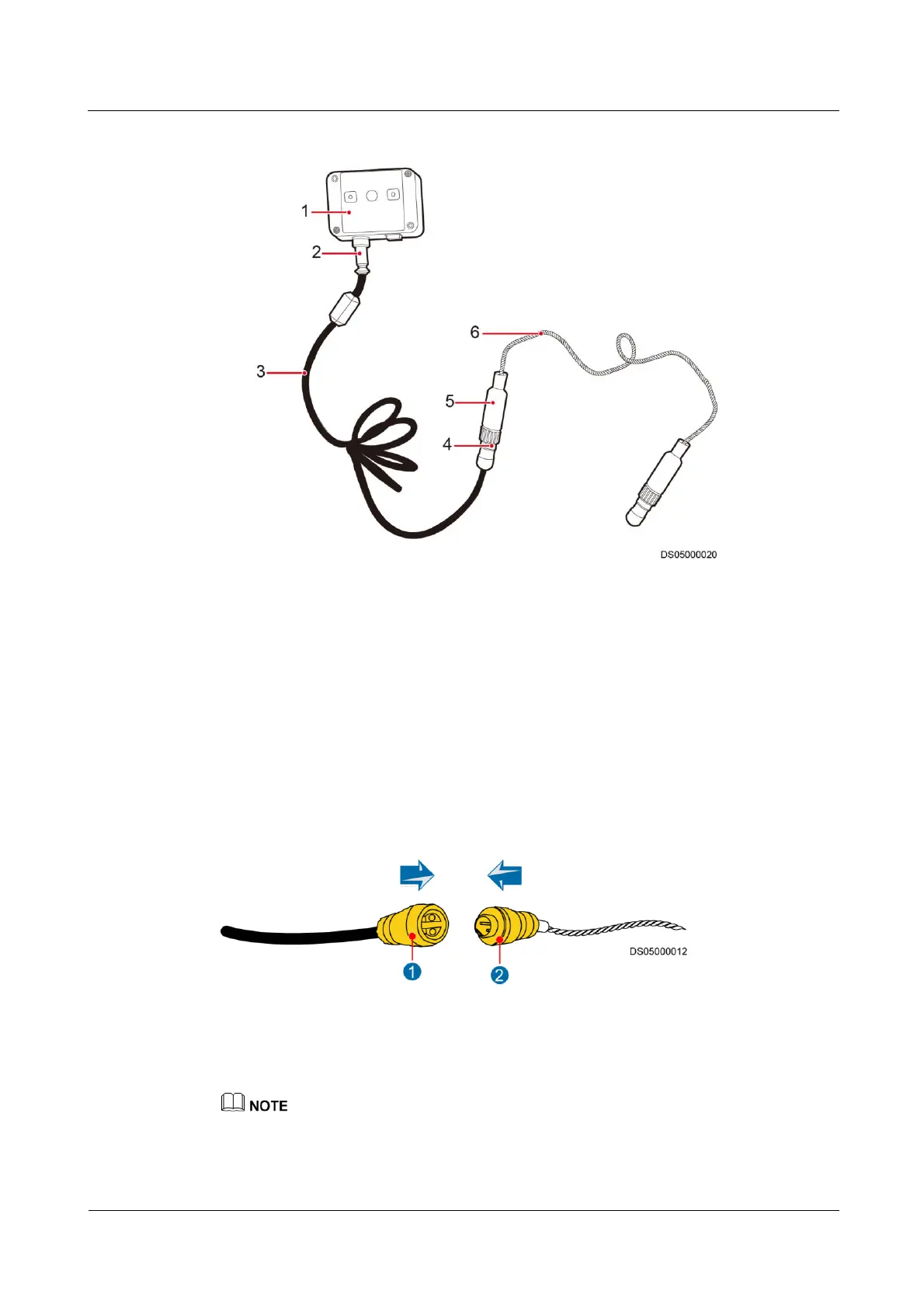

Figure 3-20 Water sensor components
(1) Water detector
(2) Conversion cable end A,
connecting to the water detector
(3) Conversion
cable
(4) Conversion cable end B,
connecting to the water detection
cable
(5) Water detection cable end A,
connecting to the conversion cable
(6) Water
detection cable
Procedure
Step 1 Connect the water detection cable to the conversion cable.
Figure 3-21 Connecting the water detection cable to the conversion cable
(1) Conversion cable end B, connecting to
the water detection cable
(2) Water detection cable end A, connecting
to the conversion cable
The water detection cable and conversion cable are interconnected through the male and female
connectors.
