Prevent it against metal filings, grease, pipe paint, and other contaminants.
Step 3 The location-type water sensor consists of a water leakage locator, tieline, and water leakage
location cable, the connection diagram is as follows.

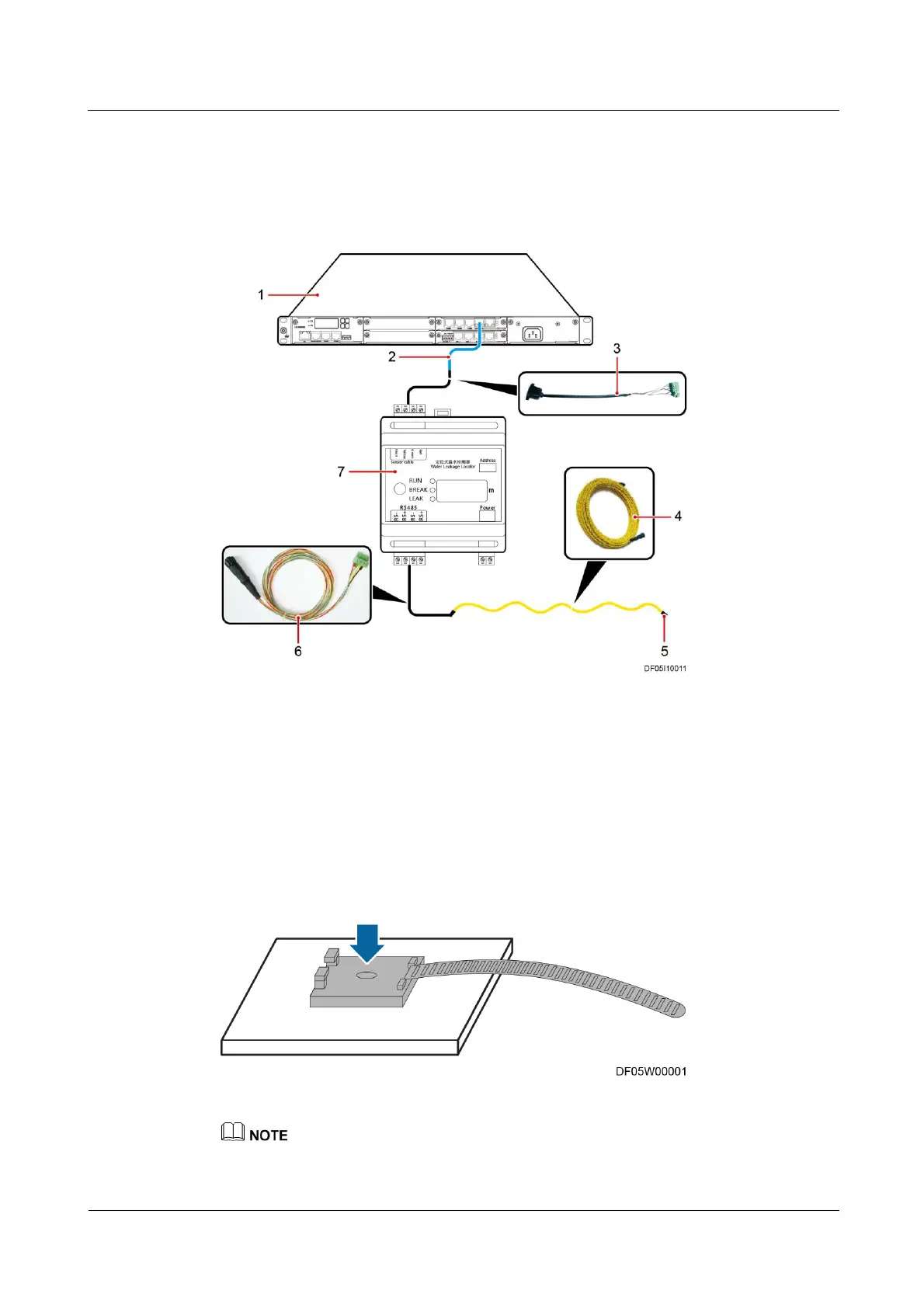

Figure 3-27 Connection diagram for location-type water sensor components
(4) Water leakage location
cable
(7) Water leakage
locator
Step 4 Tear off the protection paper on the rear of the fastener, then securely attach the fastener to
the floor.
Figure 3-28 Installing a fastener
15 fasteners are furnished with the device.
