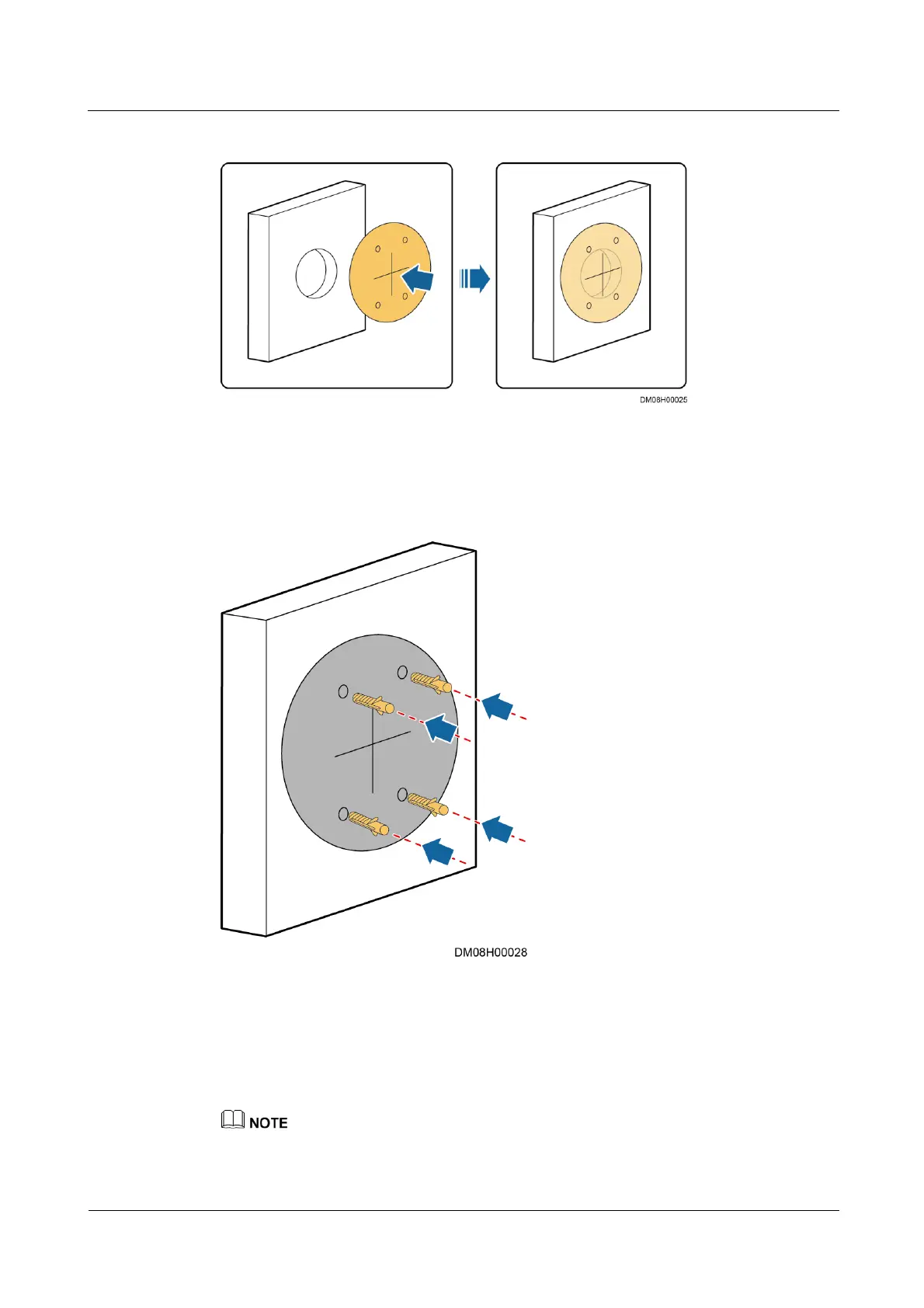

Figure 3-39 Installing an IPC6225 camera
Step 3 Obtain a drill bit with a 5 mm diameter and drill four 35 mm holes in the specified positions
marked by the stickers. Use a claw hammer to install the expansion tubes into the holes.
Figure 3-40 Installing an IPC6225 camera
Step 4 Connect the cables to the tails of the camera, perform insulation operations on the cables
(refer to IPC6225-VRZ&6225-VRZ-SP Quick Start Guide in Download), and put the cables
through the cable entry on the wall. Fasten the ST3.9 tapping screws. The cable outlet at the
camera base must face downward during installation and be sealed with waterproof glue to
prevent water from getting into the camera.
In the preceding method, the tails pass through the wall. If you do not want the tails to pass through the
wall, pass the tails through the cable outlets on the base.
