iManager NetEco 6000
Device Installation and Commissioning Guide
4 Connecting Monitoring Cables to Devices
Issue 03 (2019-03-10)
Copyright © Huawei Technologies Co., Ltd.
67
Connect monitoring cables to the RH2288H V3/RH5885 V3/2288H V5 server,
24-port switch, and ECC800 collector

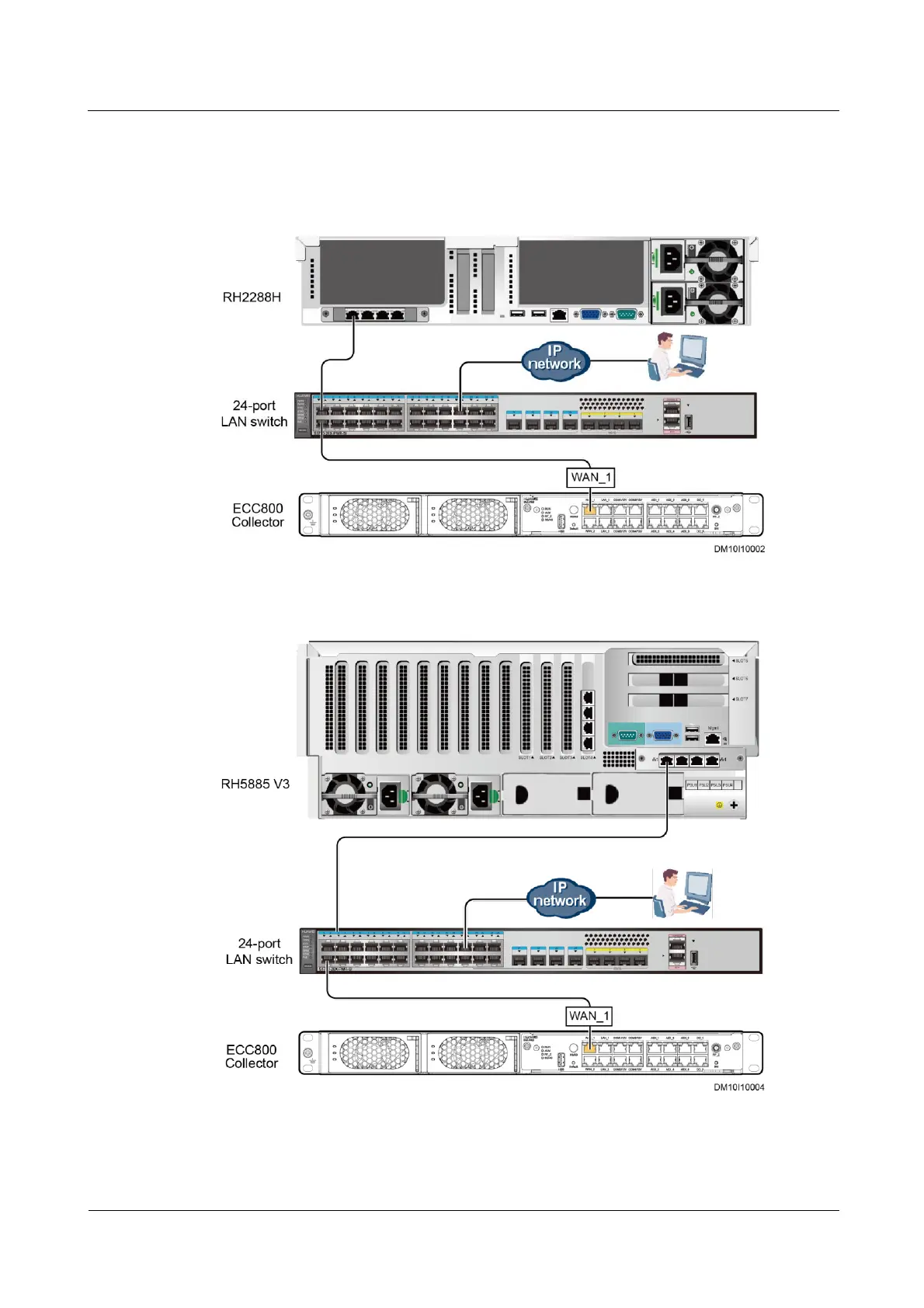

Figure 4-9 RH2288H V3 server wiring diagram (ECC800 collector)
Figure 4-10 RH5885 V3 server wiring diagram (ECC800 collector)
