Huawei iSitePower-M User Manual

Preparing an OT Terminal
NO TICE
● Avoid scratching the core wire when stripping a cable.
● The cavity formed after the conductor crimp strip of the OT terminal is crimped
must wrap the core wires completely. The core wires must contact the OT
terminal closely.
● Wrap the wire crimping area with heat shrink tubing or insulation tape. The
heat shrink tubing is used as an example.
● When using a heat gun, protect the equipment from being scorched.

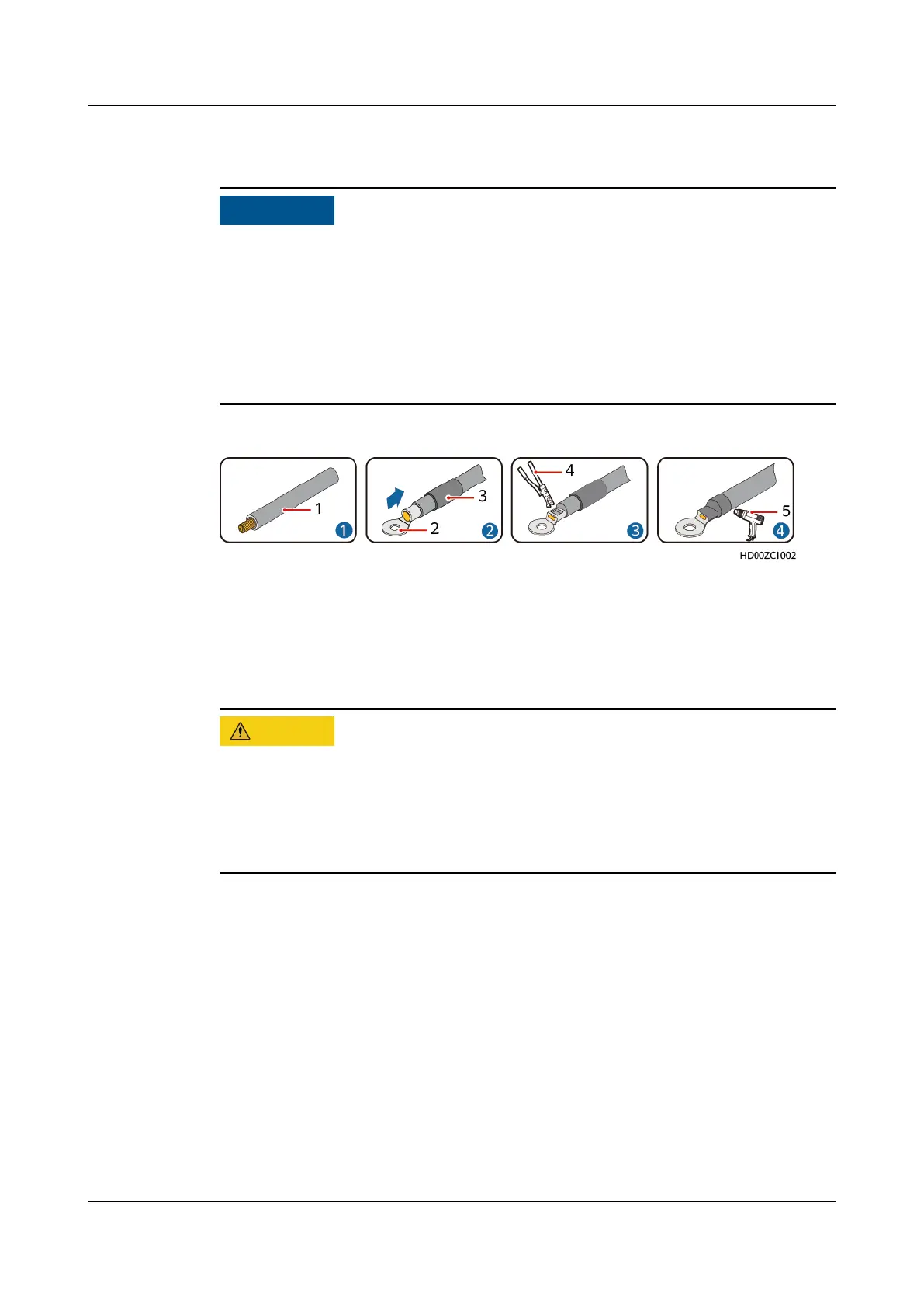

Figure 7-3 Preparing an OT terminal
(1) Cable
(2) OT terminal (3) Heat shrink tubing
(4) Hydraulic pliers (5) Heat gun
Preparing a PV Input Power Cable
CA UTION
● Use the delivered Staubli MC4 EVO2 positive and negative metal terminals and
connectors. Using incompatible positive and negative metal terminals and
connectors may result in serious consequences. The caused device damage is
not covered under any warranty or service agreement.
● Use professional tools to prepare cables.
iSitePower-M (MAP05A1, MAB05B1)
User Manual 7 Electrical Connection
Issue 02 (2021-12-30) Copyright © Huawei Digital Power Technologies Co., Ltd. 61

Huawei iSitePower-M Specifications

General

Storage Temperature	-40°C to +70°C
Product Name	Huawei iSitePower-M
Type	Power System
Efficiency	≥96%
Output Voltage	-48 V DC
Operating Temperature	-40°C to +55°C
Relative Humidity	5% to 95% (non-condensing)
Altitude	Up to 4000 m
Cooling Method	Forced Air Cooling
Protection Features	Overvoltage, undervoltage, overcurrent, short circuit, overtemperature
Certifications	CE, UL, TUV
Input Voltage Range	85 V - 300 V AC
