Huawei iSitePower-M User Manual

No. Cable 1 2
2 AC input power cable 100 mm PE wire: 7 mm
L/N wire: 17 mm
3 AC output power cable 75 mm PE wire: 7 mm
L/N wire: 17 mm
4 Ground cable N/A 7 mm
Table 7-5
Denition of the stripping length of cables for a parallel box (parallel system scenario)
No. Cable 1 2
1 AC input power cable
from the mains input to
the parallel box
L wire: 120 mm
N wire: 120 mm
PE wire: 140 mm
L wire: 16 mm
N wire: 14 mm
PE wire: 14 mm
2 Cable from the parallel
box to the iSitePower-M
AC input port
L wire: 410 mm
N wire: 340 mm
PE wire: 240 mm
L wire: 12 mm
N wire: 7 mm
PE wire: 7 mm
3 Cable from the
iSitePower-M AC output
port to the parallel box
L wire: 115 mm
N wire: 220 mm
PE wire: 370 mm
L wire: 12 mm
N wire: 7 mm
PE wire: 7 mm
4 AC output power cable
from the parallel box to
the load
L wire: 300 mm
N wire: 325 mm
PE wire: 580 mm
L wire: 16 mm
N wire: 14 mm
PE wire: 14 mm
5 Main ground cable of
the parallel box
N/A 14 mm
Preparing a Cord End Terminal

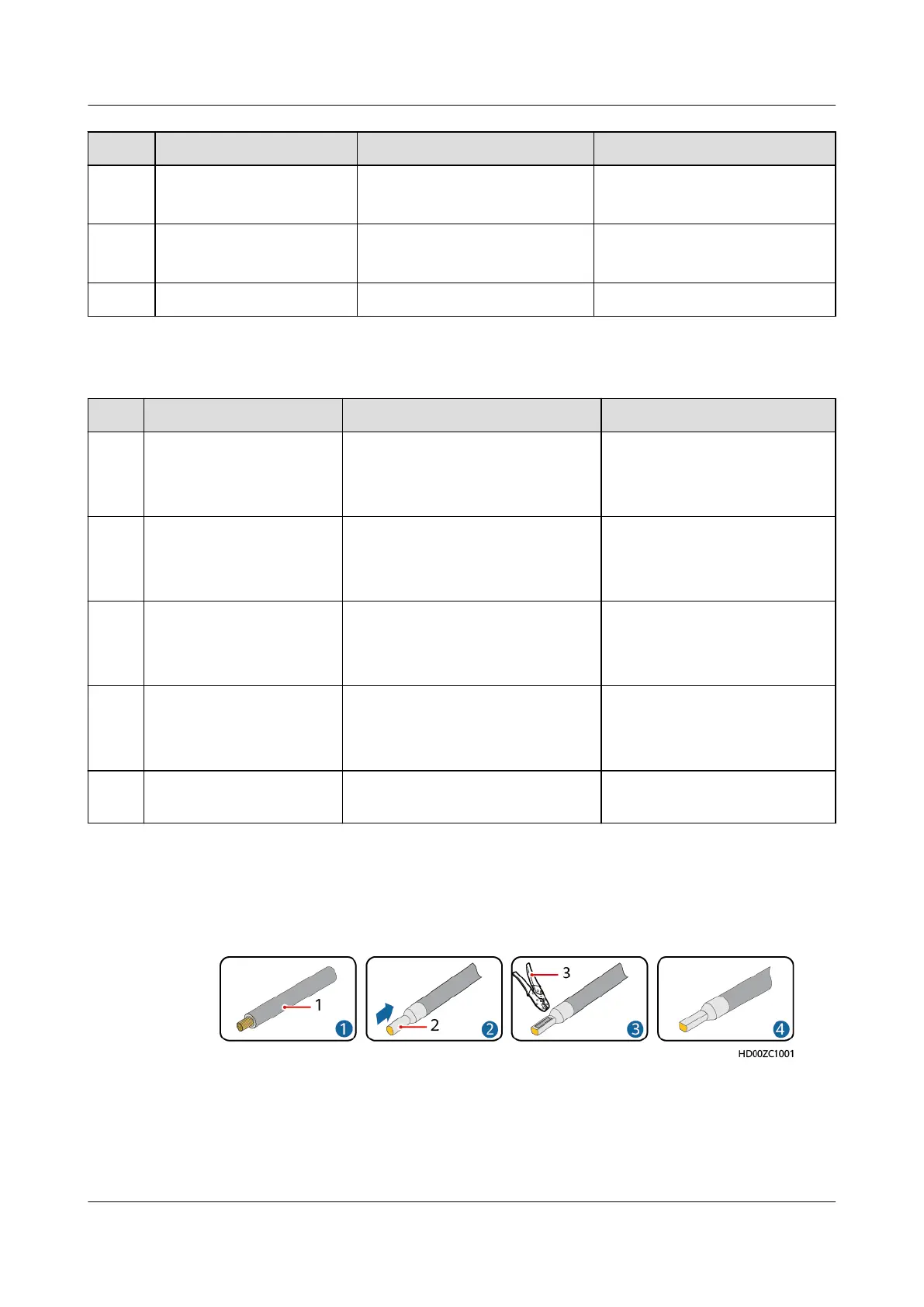

Figure 7-2 Preparing a cord end terminal
(1) Cable
(2) Cord end terminal (3) Crimping tool
iSitePower-M (MAP05A1, MAB05B1)
User Manual 7 Electrical Connection
Issue 02 (2021-12-30) Copyright © Huawei Digital Power Technologies Co., Ltd. 60

Huawei iSitePower-M Specifications

General

Storage Temperature	-40°C to +70°C
Product Name	Huawei iSitePower-M
Type	Power System
Efficiency	≥96%
Output Voltage	-48 V DC
Operating Temperature	-40°C to +55°C
Relative Humidity	5% to 95% (non-condensing)
Altitude	Up to 4000 m
Cooling Method	Forced Air Cooling
Protection Features	Overvoltage, undervoltage, overcurrent, short circuit, overtemperature
Certifications	CE, UL, TUV
Input Voltage Range	85 V - 300 V AC
