Huawei iSitePower-M User Manual

No. Cable Type Recommended Specications Source
4 AC output
power cable
from the
parallel box to
the load
Outdoor
three-core
copper
cable
(L/N/PE)
● Conductor cross-sectional area: 25 mm
2
● Cable outer diameter: 16–26 mm
Prepared
by the
customer
5 Main ground
cable of the
parallel box
Outdoor
single-core
copper
cable
● Conductor cross-sectional area: 25 mm
2
● Cable outer diameter: 8–11 mm
Prepared
by the
customer
Table 7-3 Cables delivered with the product
No. Cable Type Source
1 Battery power cable Common outdoor PV cable in the industry Delivered
with the
product
2 Battery signal cable Outdoor shielded twisted pair cable Delivered
with the
product
3 Ground cable (standard
scenario)
Outdoor single-core copper cable Delivered
with the
product
NO TE
● The minimum cable diameter must comply with local cable standards.
● The factors that aect cable selection include the rated current, cable type, routing
mode, ambient temperature, and maximum expected line loss.
Stripping Length

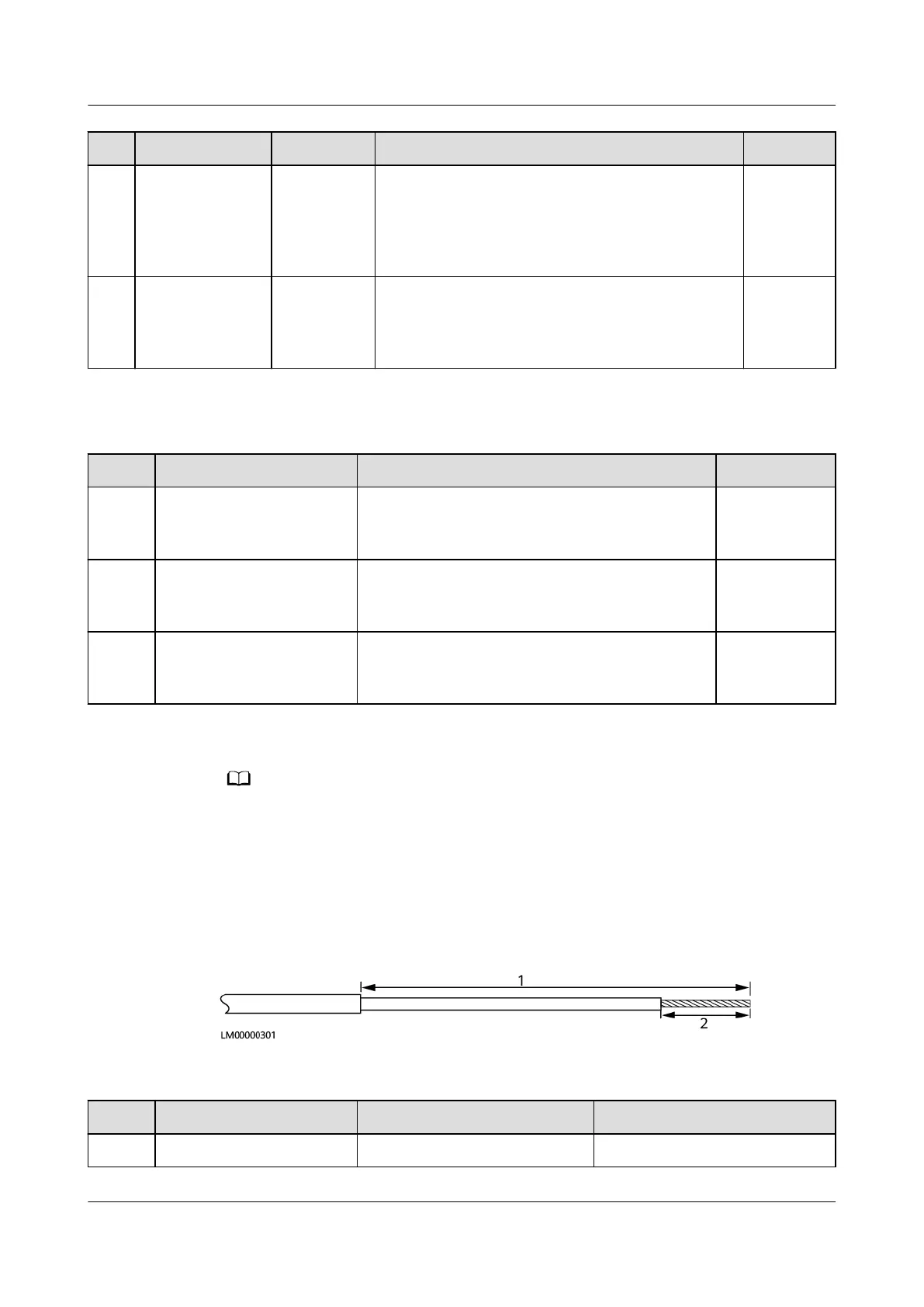

Figure 7-1 Stripping length
Table 7-4 Denition of the cable stripping length (standard scenario)
No.
Cable 1 2
1 PV input power cable N/A 8–10 mm
iSitePower-M (MAP05A1, MAB05B1)
User Manual 7 Electrical Connection
Issue 02 (2021-12-30) Copyright © Huawei Digital Power Technologies Co., Ltd. 59

Huawei iSitePower-M Specifications

General

Storage Temperature	-40°C to +70°C
Product Name	Huawei iSitePower-M
Type	Power System
Efficiency	≥96%
Output Voltage	-48 V DC
Operating Temperature	-40°C to +55°C
Relative Humidity	5% to 95% (non-condensing)
Altitude	Up to 4000 m
Cooling Method	Forced Air Cooling
Protection Features	Overvoltage, undervoltage, overcurrent, short circuit, overtemperature
Certifications	CE, UL, TUV
Input Voltage Range	85 V - 300 V AC
