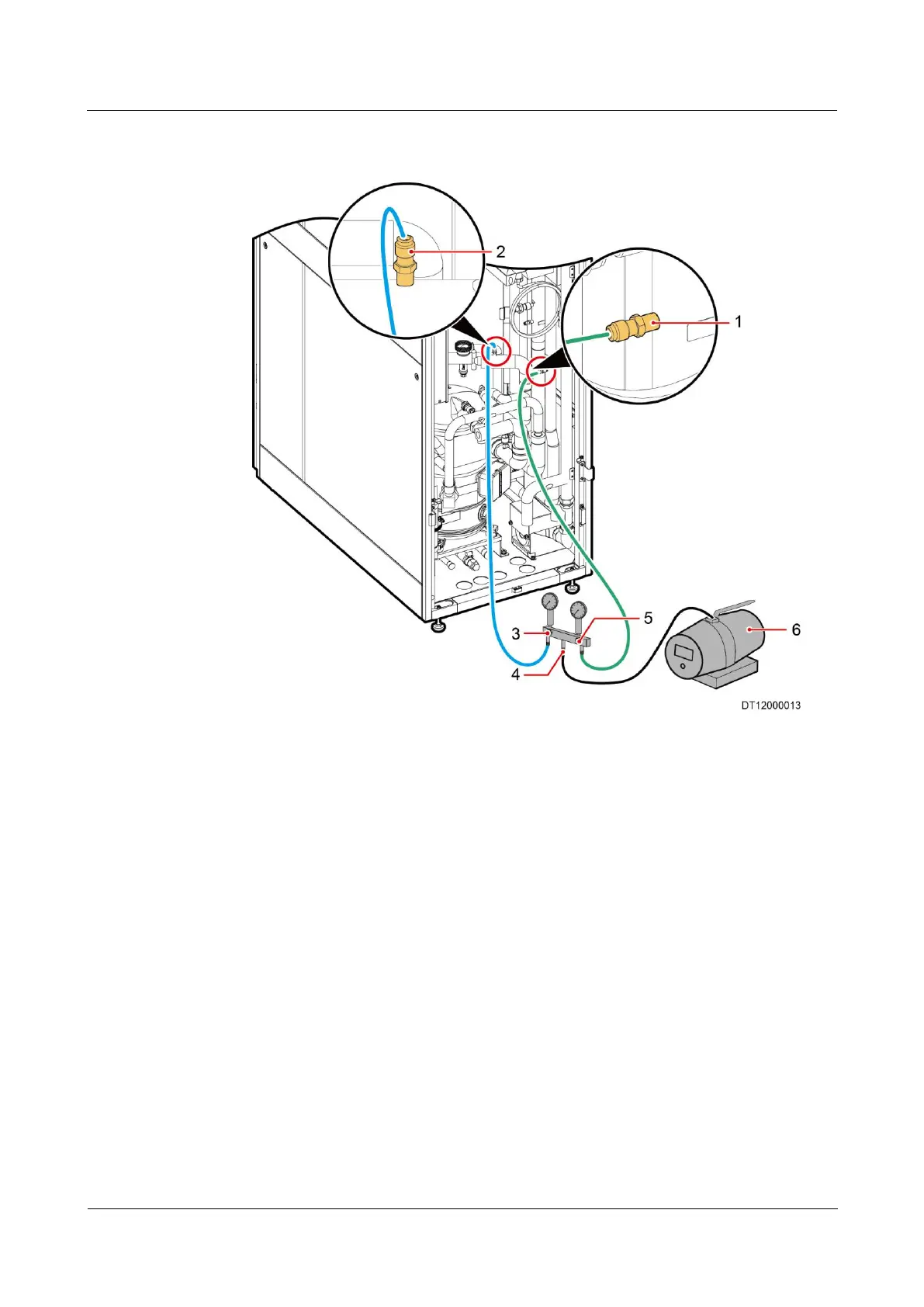

Figure 5-2 Vacuumizing the cooling system without configuring low-temperature
component
(1) Liquid pipe needle
valve
(2) Low-pressure needle
valve
(3) Low-pressure gauge
valve
(4) Nut
(5) High-pressure gauge
valve
(6) Vacuum pump

If the low-temperature component is connected, vacuumize the cooling system from the
three positions (liquid pipe needle valve, low-pressure needle valve, and discharge pipe
needle valve) at the same time, as shown in Figure 5-3.
