B General Layout
The NetCol5000-A consists of an indoor unit and an outdoor unit that are connected over
refrigerant pipes. Figure B-1 shows the cooling component layout.

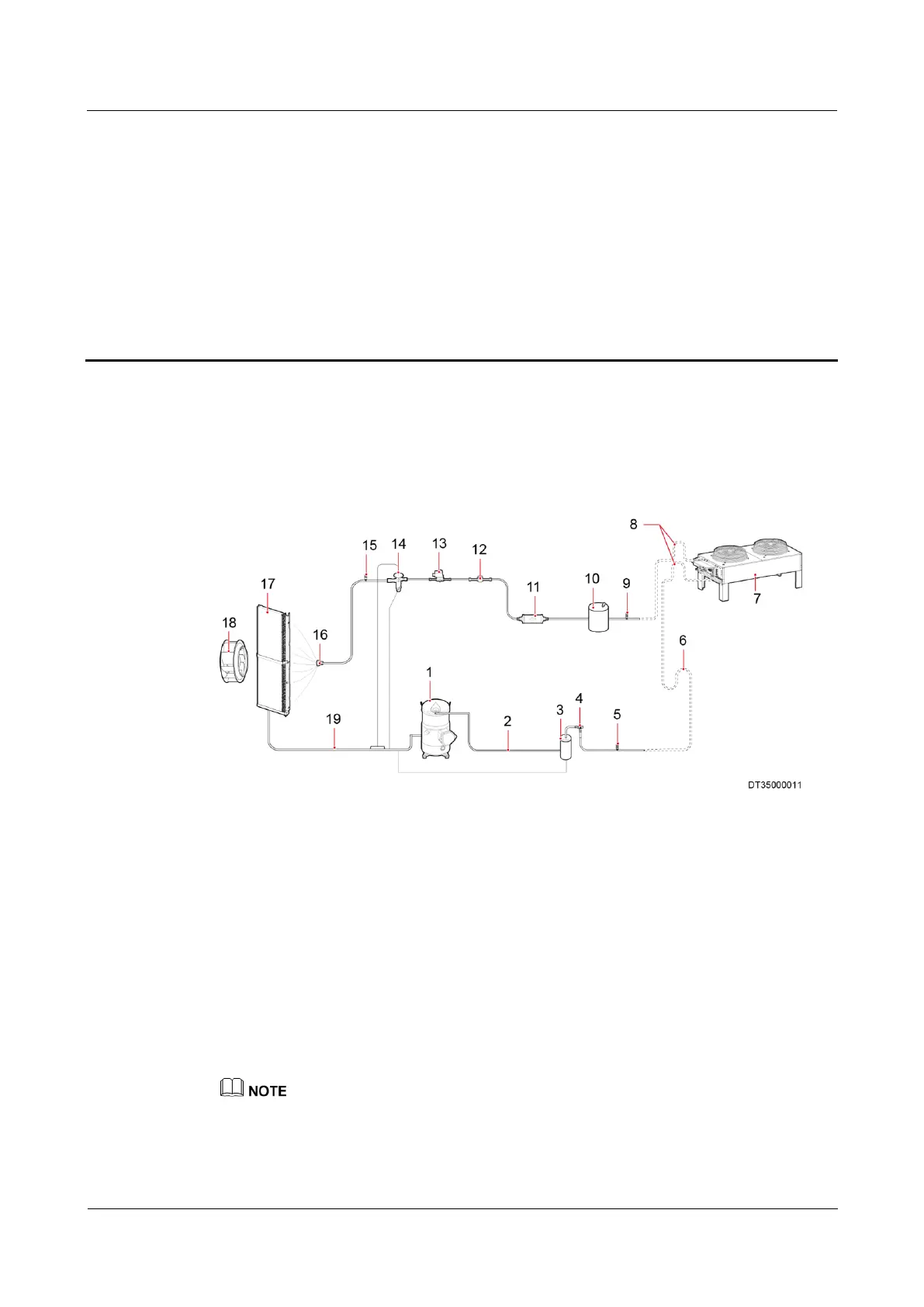

Figure B-1 Cooling component layout
(1) Compressor
(2) Discharge pipe
(3) Oil separator
(4) Check
valve
(5) Discharge pipe
needle valve
(6) Oil trap
(7) Outdoor unit
(8) Inverted
trap
(9) Needle valve on
liquid pipe
(10) Liquid storage tank
(11) Dry filter
(12) Sight
glass
(13) Solenoid valve
(14) Thermostatic
expansion valve
(15) Low-pressure
needle valve
(16)
Distributor
(17) Evaporator
(18) Indoor fan
(19) Suction pipe

In Figure B-1, the pipes in real line are installed by Huawei before delivery; the pipes in dotted line
are to be routed onsite by technical personnel.
