Procedure
Step 1 Connect one end of the water sensor cable to the water sensor.
Step 2 Route the other end of the sensor cable through the hole at the bottom of the cabinet and the
hole (the higher one) at the side of the electric control box and connect the two terminals to
the terminal block (X2.9 and X2.10 positions) of the electric control box, as shown in Figure
3-41.
Step 3 Secure the water sensor cable to the cabinet with cable ties.

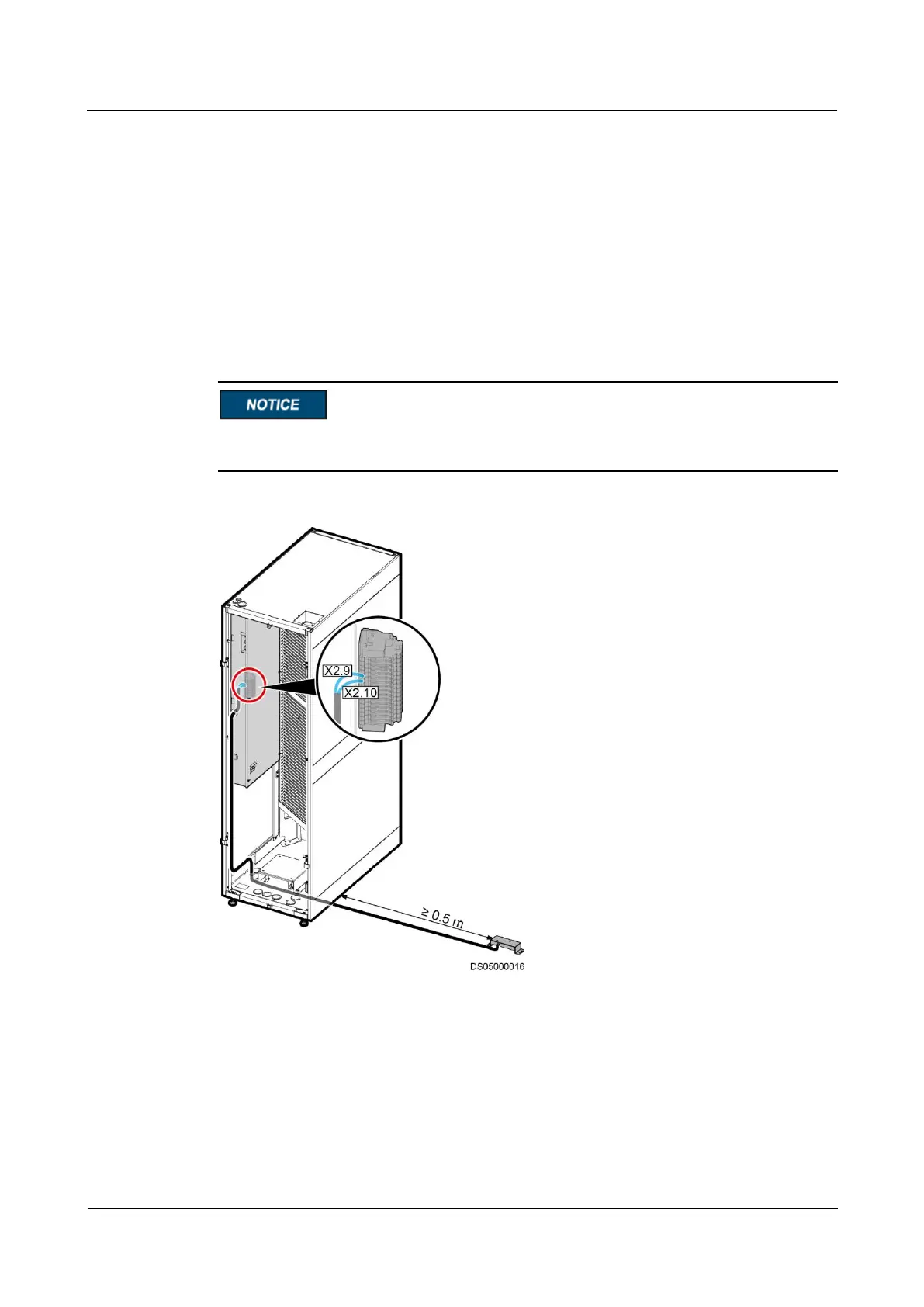

Figure 3-43 shows the water sensor installation position.
Place the sheet metal of the water sensor upwards and its detection board downwards on the
ground.
Figure 3-43 Routing cables of water sensor (unit: m)
----End
