Installation Manual
Quidway R2600/3600 Series Modular Routers
Chapter 2
Appearance and System Features
2-7

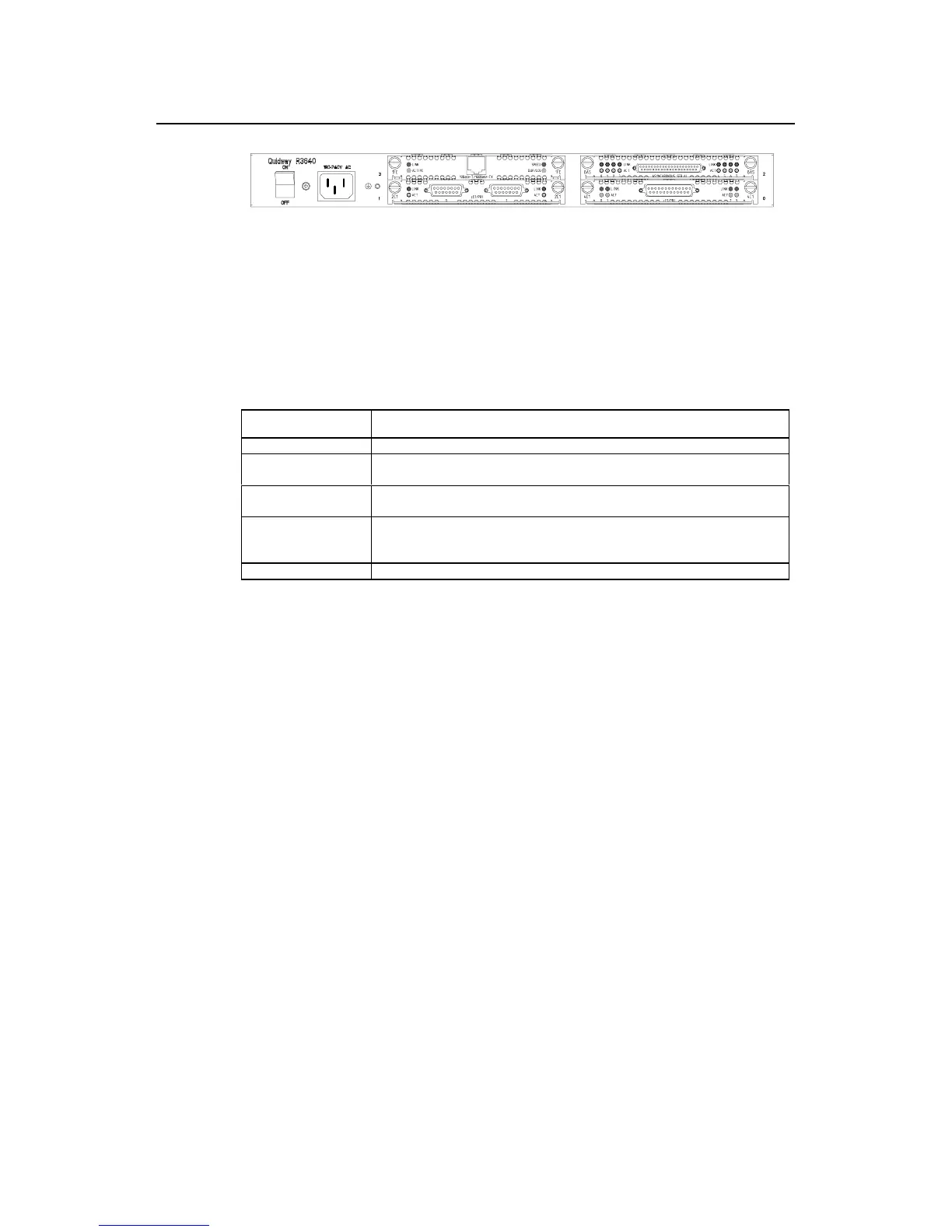

Figure 2-10 Rear panel of R3640
2.4.2 Indicators on Panel
The meanings of indicators on the front panel of R3640/R3640E are shown in the
following table.
Table 2-10 Meanings of indicators on the front panel of R3640/R3640E
Indicator Meaning
POWER System power indicator: Off means power is off. On means power is on.
SYSTEM
Hardware status indicator: Blinking means system is normal. Always on/off means
system is abnormal.
READY
Module indicator. On means the module of the current slot is working normally. Off
means the module is abnormal or no module is installed in the current slot.
ACTIVE
Blinking means data is being received and transmitted by the module in the current
slot. Off means no data is being received or transmitted by the module in the current
slot.
0 - 3 Position of corresponding slots.
2.4.3 System Description
The following table shows the basic configurations, dimensions, operating environment,
etc. of R3640 and R3640E.
