Huawei Quidway R2600 Series User Manual

Installation Manual
Quidway R2600/3600 Series Modular Routers
Chapter 8
Function Modules
8-7

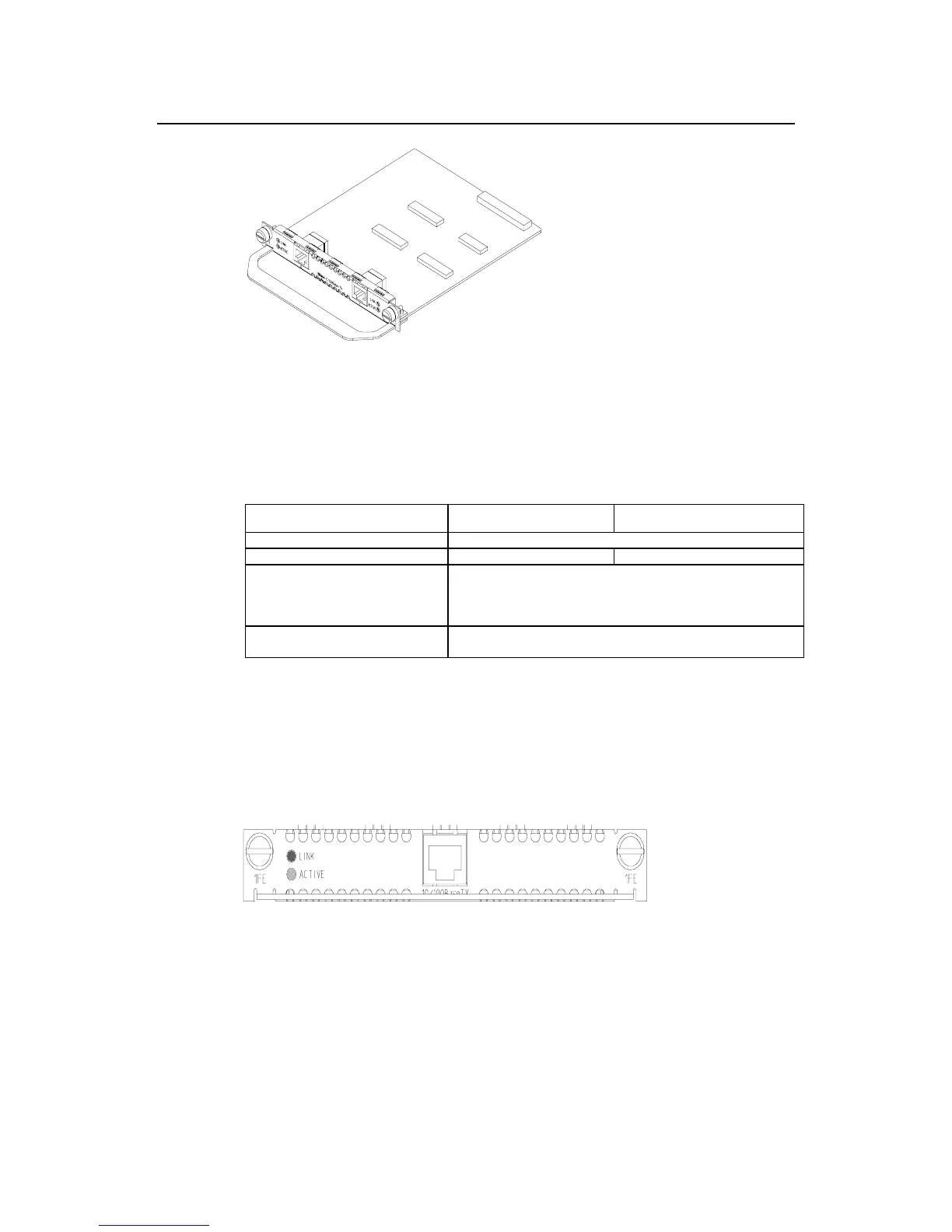

Figure 8-10 Appearance of 2FE
8.5.3 Interface Attributes
Table 8-1 Attributes of 1FE/2FE
Attribute 1FE 2FE
Connector RJ-45
Number of interfaces 1 2
Frame formats supported
Ethernet_II
Ethernet_SNAP
IEEE 802.2
IEEE 802.3
Network protocols supported
IP
Novell IPX
8.5.4 Indicators on Panel
I. Indicators on Panel of 1FE
The front panel of 1FE is shown as follows:
Figure 8-11 Front panel of 1FE
The meanings of the indicators on 1FE are shown in the following table:
