Installation Manual
Quidway R2600/3600 Series Modular Routers
Chapter 8
Function Modules
8-61
Table 8-41 Interface attributes of 8LSA
Attribute Description
Synchronous Asynchronous
Connector DB-200 DB-200
V.24 V.35
Interface standard and
operating mode
DTE
DCE
DTE
DCE
EIA/TIA-232
Minimum baud rate (bps) 1200 1200 300
Maximum baud rate (bps) 64K 128M 115.2K
Services supported
---Dialup via Modem
---DDN
---Terminal access service
---Dialup via Modem
---Backup
Protocols supported
---PPP
---MP
---LAPB
---X.25
---HDLC
---SDLC
---Frame Relay
---PPP
---SLIP
---MP
8.13.4 Indicators on Panel

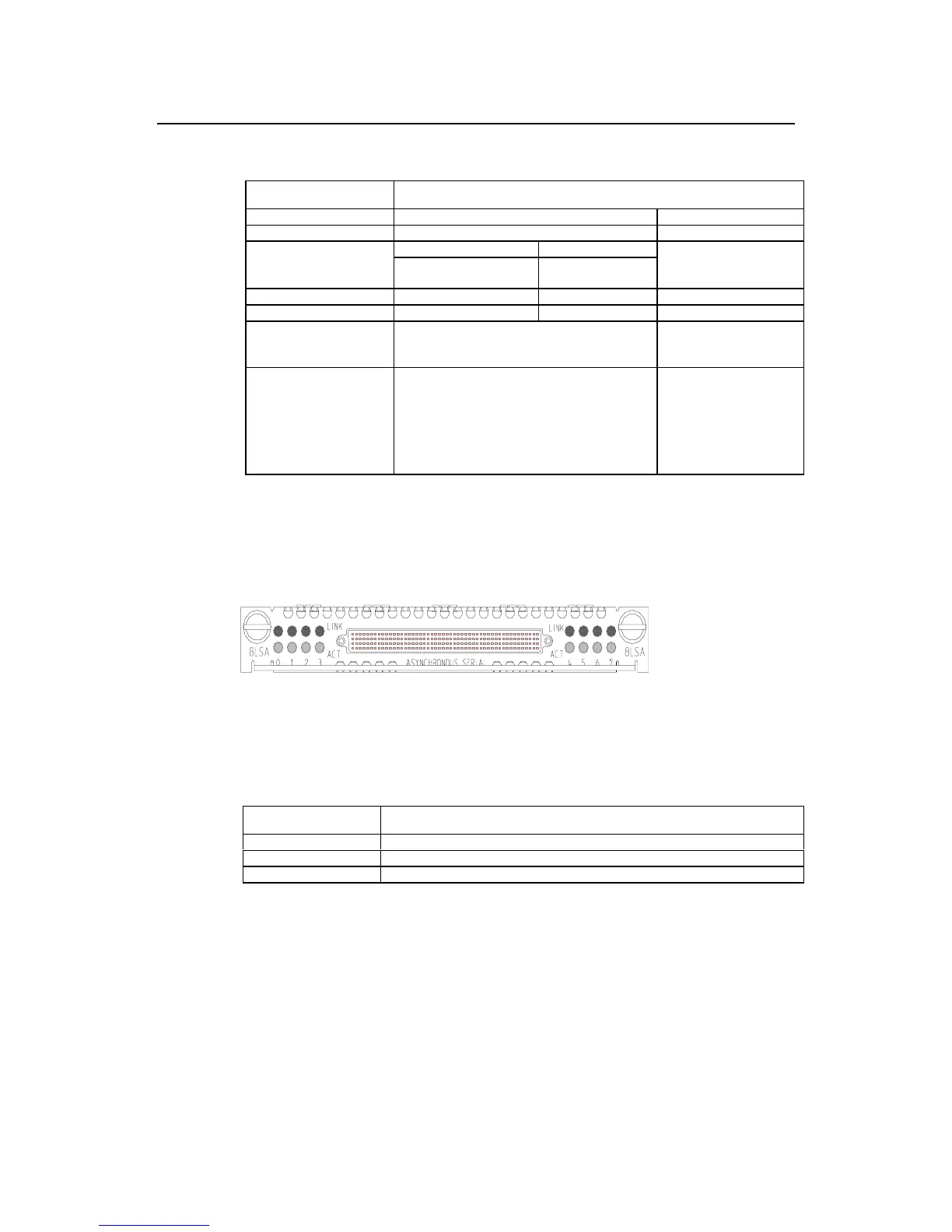

The front panel of 8LSA is shown as follows:
Figure 8-59 Front panel of 8LSA
The meanings of the indicators on 8LSA are given in the following table:
Table 8-42 Meanings of the indicators of 8LSA
Indicator Meaning
LINK Off means the link is not connected. On means the link is connected.
ACTIVE Blink means there is data transmission. On/Off means there is no data transmission.
0 - 7 Corresponding port number.
8.13.5 Interface Cable
The interface of 8LSA module is a 200-pin connector.
Before connecting to 8LSA, confirm the line properties. There are four optional cables
depending on different line properties:
z
V.35 DCE cable
z V.35 DTE cable
