Installation Manual
Quidway R2600/3600 Series Modular Routers
Chapter 8
Function Modules
8-36
8.8.4 Indicators on Panel

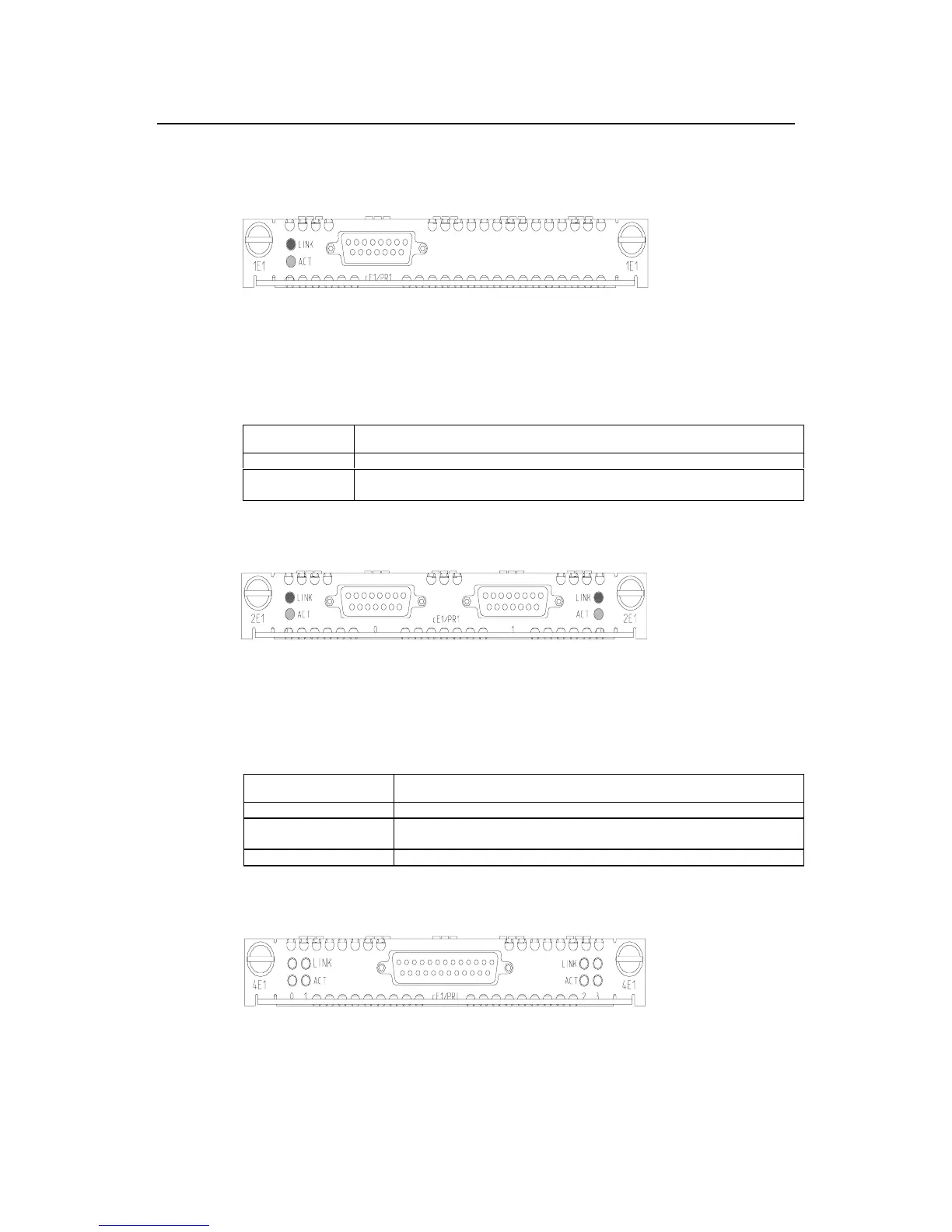

The front panel of 1E1 is shown as follows:
Figure 8-35 Front panel of 1E1
The meanings of the indicators on 1E1 are given in the following table:
Table 8-21 Meanings of the indicators of 1E1
Indicator Meaning
LINK Off means the link is not connected. On means the link is connected.
ACTIVE
Off means no data is being received or transmitted. On means data is being received or
transmitted.
The front panel of 2E1 is shown as follows:
Figure 8-36 Front panel of 2E1
The meanings of the indicators on 2E1 are shown in the following table:
Table 8-22 Meanings of the indicators of 2E1
Indicator Meaning
LINK Off means the link is not connected. On means the link is connected.
ACTIVE
Off means no data is being received or transmitted. On means data is being
received or transmitted.
0 - 1 Corresponding port number.
The front panel of 4E1 is shown as follows:
Figure 8-37 Front panel of 4E1
The meanings of the indicators on 4E1 are given in the following table:
