Installation Manual
Quidway R2600/3600 Series Modular Routers
Chapter 8
Function Modules
8-13
Table 8-7 Baud rate and transmission distance for V.35 cable
Baud rate (bps) Maximum transmission distance (meter)
2400 1250
4800 625
9600 312
19200 156
38400 78
56000 60
64000 50
2048000 30

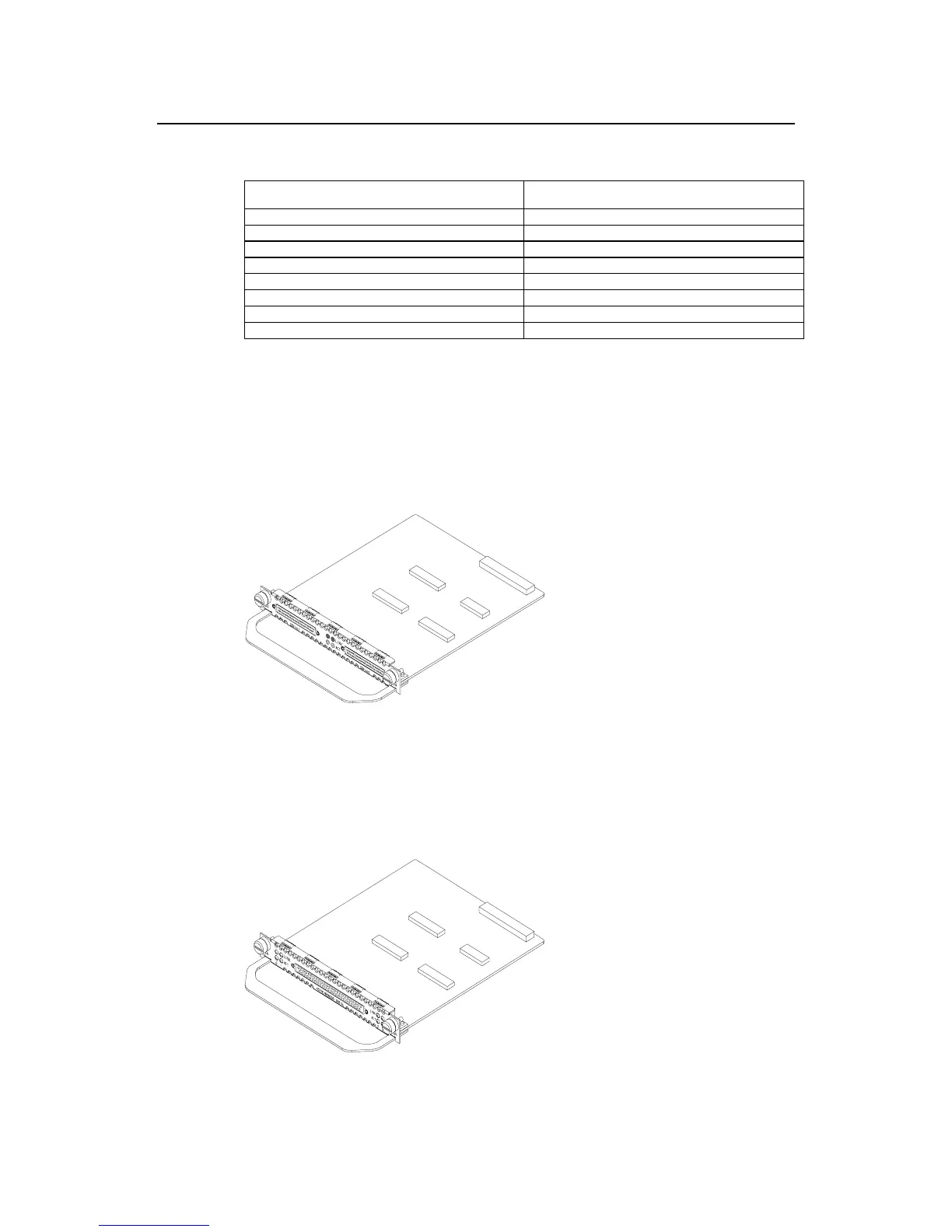

8.6.2 Appearance
I. Appearance of 2SA module
The appearance of the 2SA module is shown in the following figure:
Figure 8-17 Appearance of 2SA
II. Appearance of 4SA module
The appearance of the 4SA module is shown in the following figure:
Figure 8-18 Appearance of 4SA
