Installation Manual
Quidway R2600/3600 Series Modular Routers
Chapter 4
Installation
4-6
4.4.1 Connecting Console Port
I. Introduction to console
R2600/3600 series provide a console in compliance with the EIA/TIA-232
asynchronous serial standard, through which the user can implement the local
configuration of the router.
II. Attributes of console
Table 4-1 Attributes of console
Attributes Description
Connector RJ-45
Interface standard Async EIA/TIA-232
Baud rate 9600bps
Services supported
---Command line interface
---Connection with the character terminal
---Connection with the serial interface of the local PC, and running the terminal
emulation program on the PC
III. Console cable
The console cable is an 8-core shielded cable. One end of it is a pressure crimped
RJ-45 connector, and the other end is a connector with a DB-9-pin and a DB-25-pin.
You can select either of them based on your actual requirement and plug it with the
25-pin or 9-pin at the configuration terminal. The console cable is shown in Figure 4-8:
Enlarged A side
Pos. 25
A
DB 25 Female
8P8C PLUG
Enlarged B side
Pos.1 Pos.8
DB9 Female
Enlarged C side
Pos.1
Pos.9
C
Pos.1
B

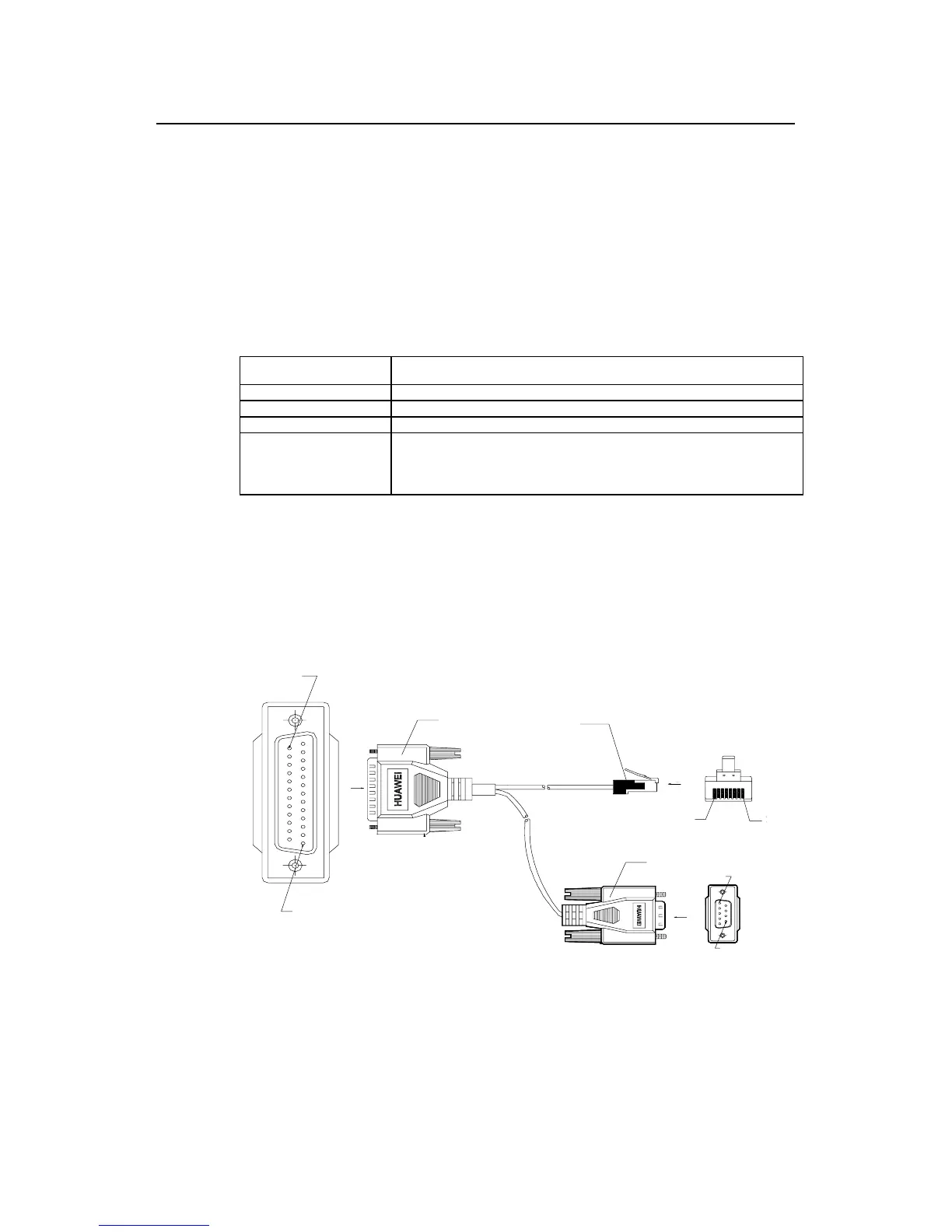

Figure 4-8 Console cable
