Huawei Quidway R2600 Series User Manual

Installation Manual
Quidway R2600/3600 Series Modular Routers
Chapter 8
Function Modules
8-27
Each channel in 16AS has only one indicator. It is on when the link is connected, and it
blinks when the link is active (i.e., receiving and transmitting data).
8.7.5 Interface Cable
I. Connecting 8AS cable
The connection cable of 8AS is an 8-port asynchronous serial interface cable. One end
of it is a 68-pin connector, and the other end is an 8-port DB-25/DB-9 connector. The
appearance of the cable is shown in the following figure.
Caution:
This cable is selected for the 8AS module.
DB25 Male
DB9 Male
C
D B 6 8 M a le
Pos.68
Pos.1
Enlarged C side
P1
P3
P5P7P9P11
P13P15
A
B
P16 P14
P12
P10
P8
P6
P4 P2
Enlarged A side
Pos.1
Pos.25
Pos.9
Pos.1
Enlarged B side
D

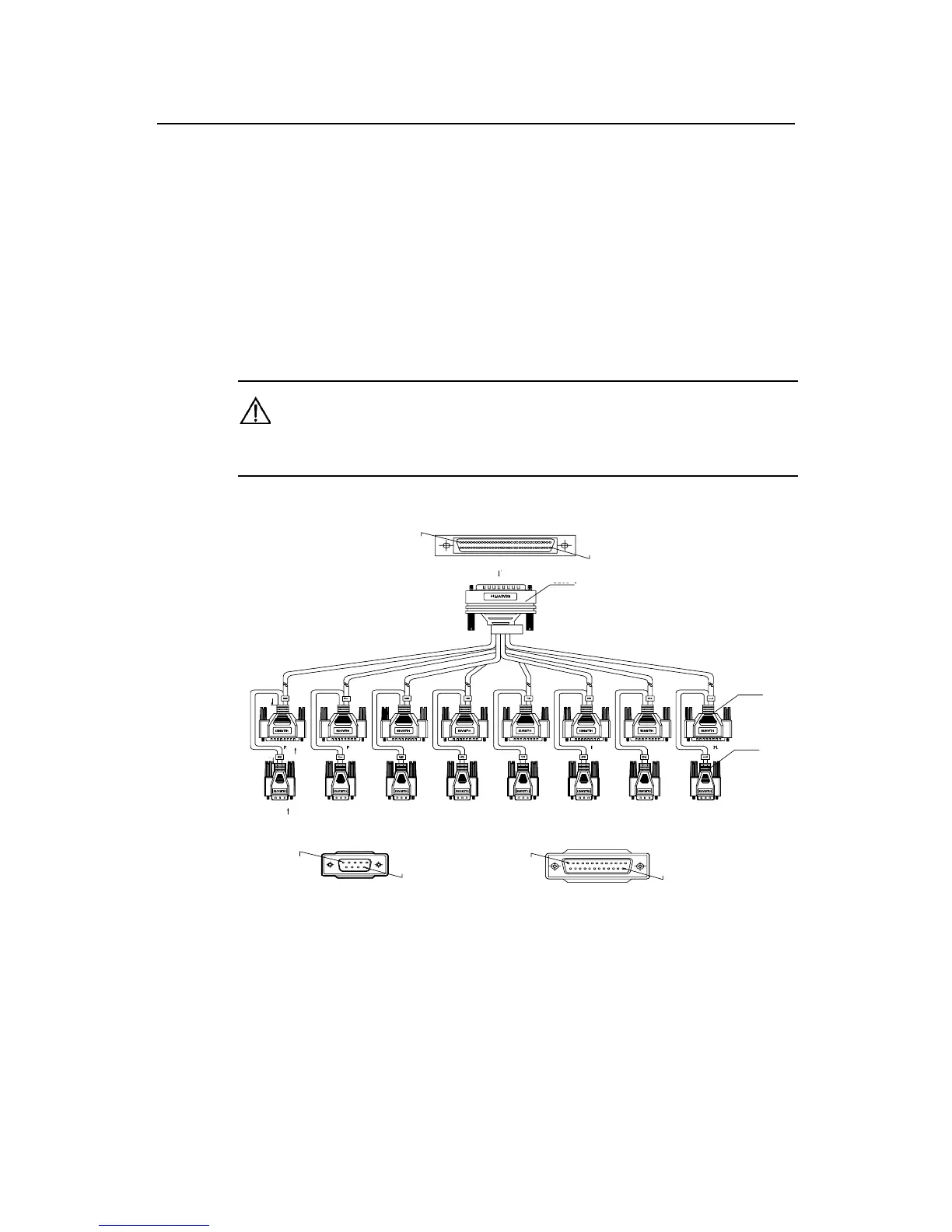

Figure 8-30 Connecting 8AS cable
Based on the above figure, the following table shows the electric connection of the
corresponding pin in 8AS cable connection.
