c. Click Apply to apply the configuration.
4. Configure parameters of the SIP-based voice users.

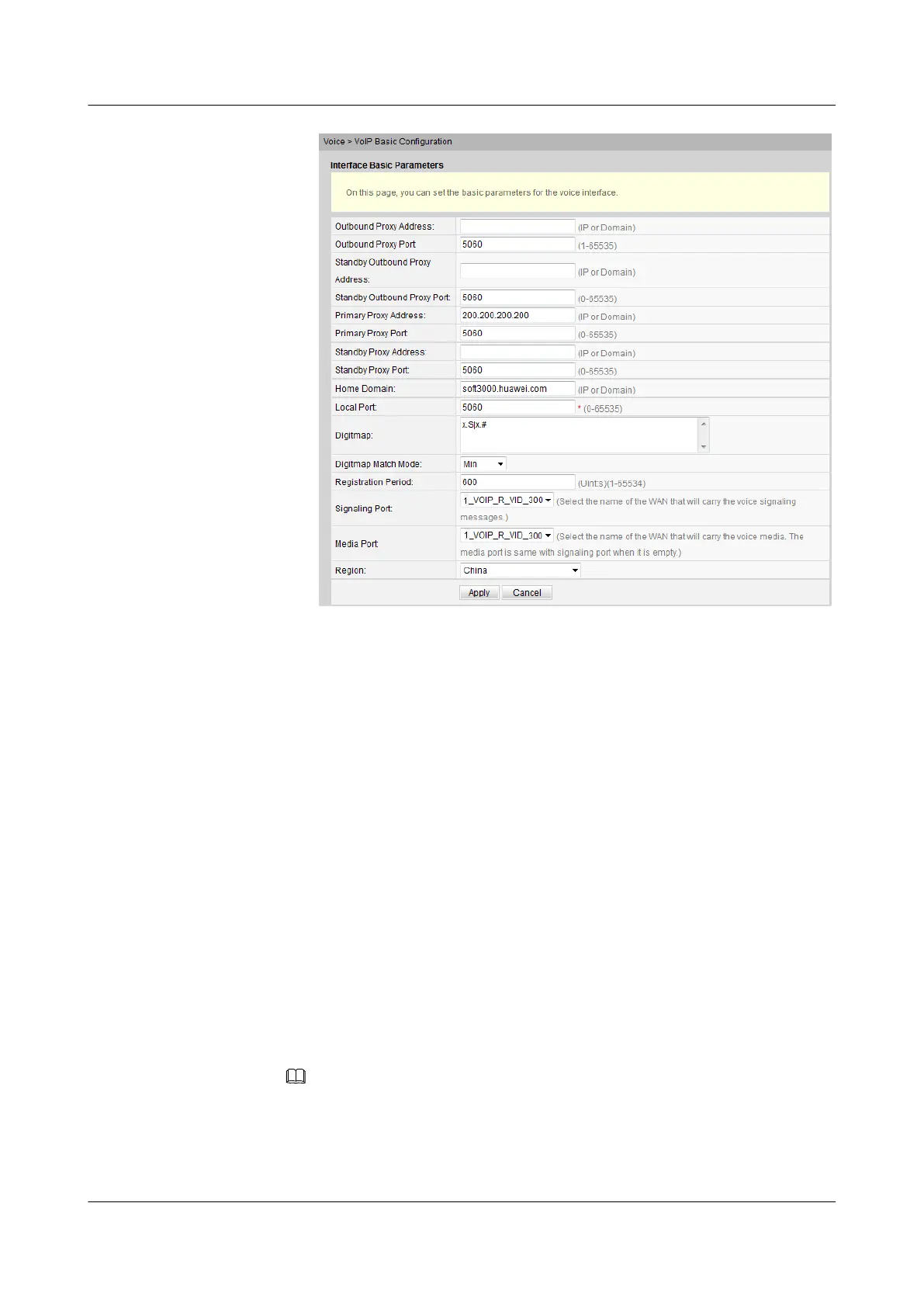

a. In the navigation tree, choose Voice > VoIP Basic Configuration.
b. In the right pane, configure parameters of voice user 1 as follows:
– Register User Name: 80001234
– Auth User Name: 80001234@softx3000.huawei.com
– Password: iadtest1
– Associated POTS: 1 (binding port TEL1 on the ONU)
– Select Enable to enable the voice user configuration.
c. Click Apply to apply the configuration.
d. Register User Name: 80001235
e. Auth User Name: 80001235@softx3000.huawei.com
f. Password: iadtest2
g. Associated POTS: 2 (binding port TEL2 on the ONU)
h. Select Enable User to enable the voice user configuration.
i. Click Apply to apply the configuration.
NOTE
l The parameters of the SIP-based voice user must be consistent with the corresponding
configuration on the softswitch.
l If Associated POTS is 1, port TEL1 on the ONU is bound. If Associated POTS is 2, port TEL2
on the ONU is bound.
SmartAX MA5600T/MA5603T/MA5608T Multi-service
Access Module
Commissioning and Configuration Guide
12 FTTO Configuration(SOHO and SME)
Issue 01 (2014-04-30) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
1214
