14.1 Overview of Base Station Access Service
Before configuring the base station access service, acquire the following basic knowledge.
14.1.1 Basic Concepts
Many concepts are involved in the base station access solution. The following only provides
major concepts involved in the network diagram of base station access service.

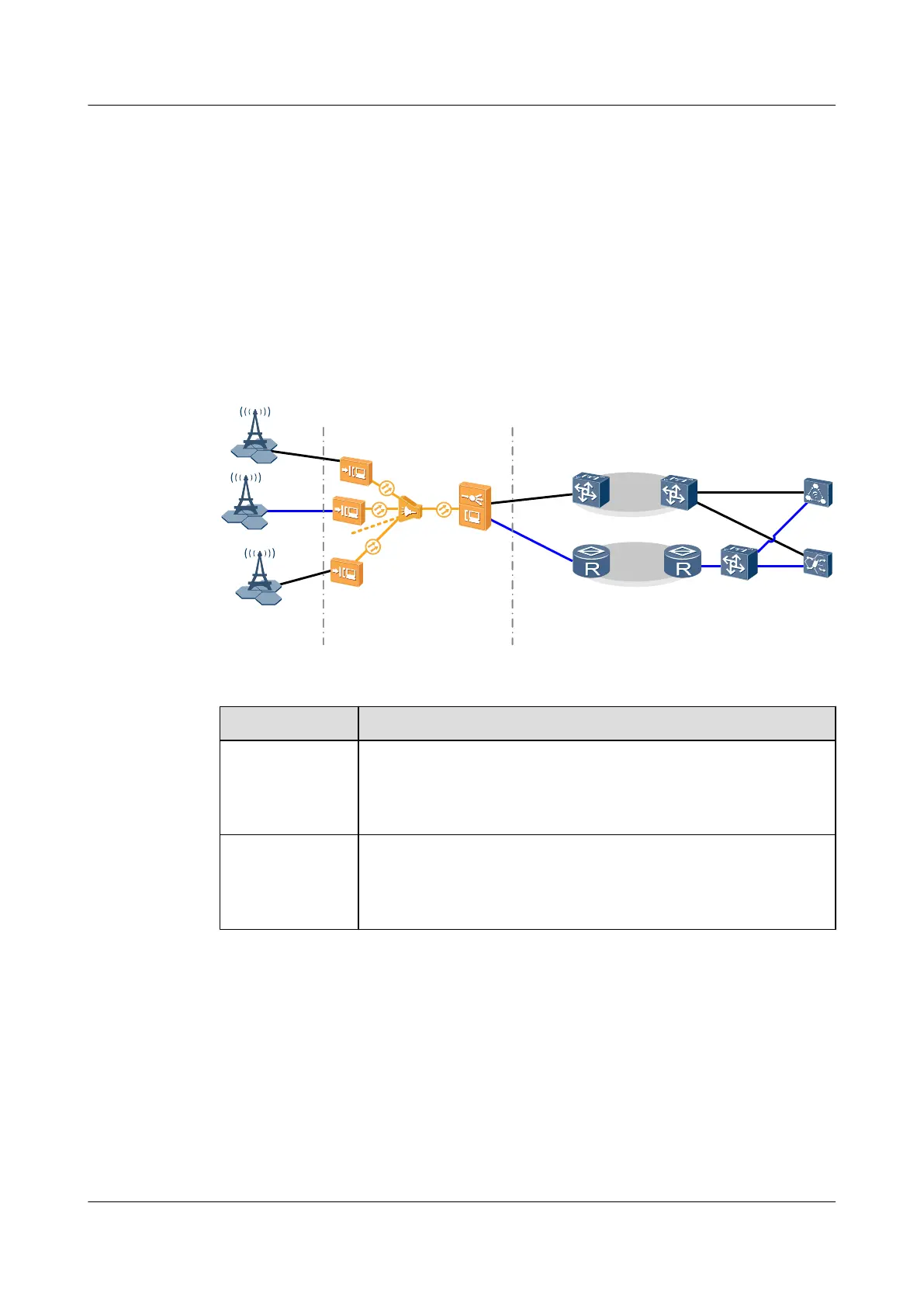

Network Diagram of Base Station Access Service
Splitter
OLT
ONU
ONU
Access Side Network SideBase station Side
E1
E1/STM-1
G
E
/
1
0
G
E
FE/GE
E1
SDH
IP/MPLS
BSC
RNC
E1
STM-1
GE
GE
BTS
NodeB
User Side
Concept Description
BTS Base transceiver station, a 2G base station. BTSs are controlled by base
station controllers (BSCs) and constitute a a base station subsystem
(BSS) with BSCs as radio devices. BTSs serve for a district and
communicate with mobile stations (MSs) through air interfaces.
NodeB A 3G base station, providing physical radio links between mobile
devices (mobile phones) and the universal mobile telecommunications
system (UMTS) network. NodeBs transmit and receive data through
radio interfaces.
