NOTE
For details about how to configure a LAN switch or the BRAS, see related configuration guides.

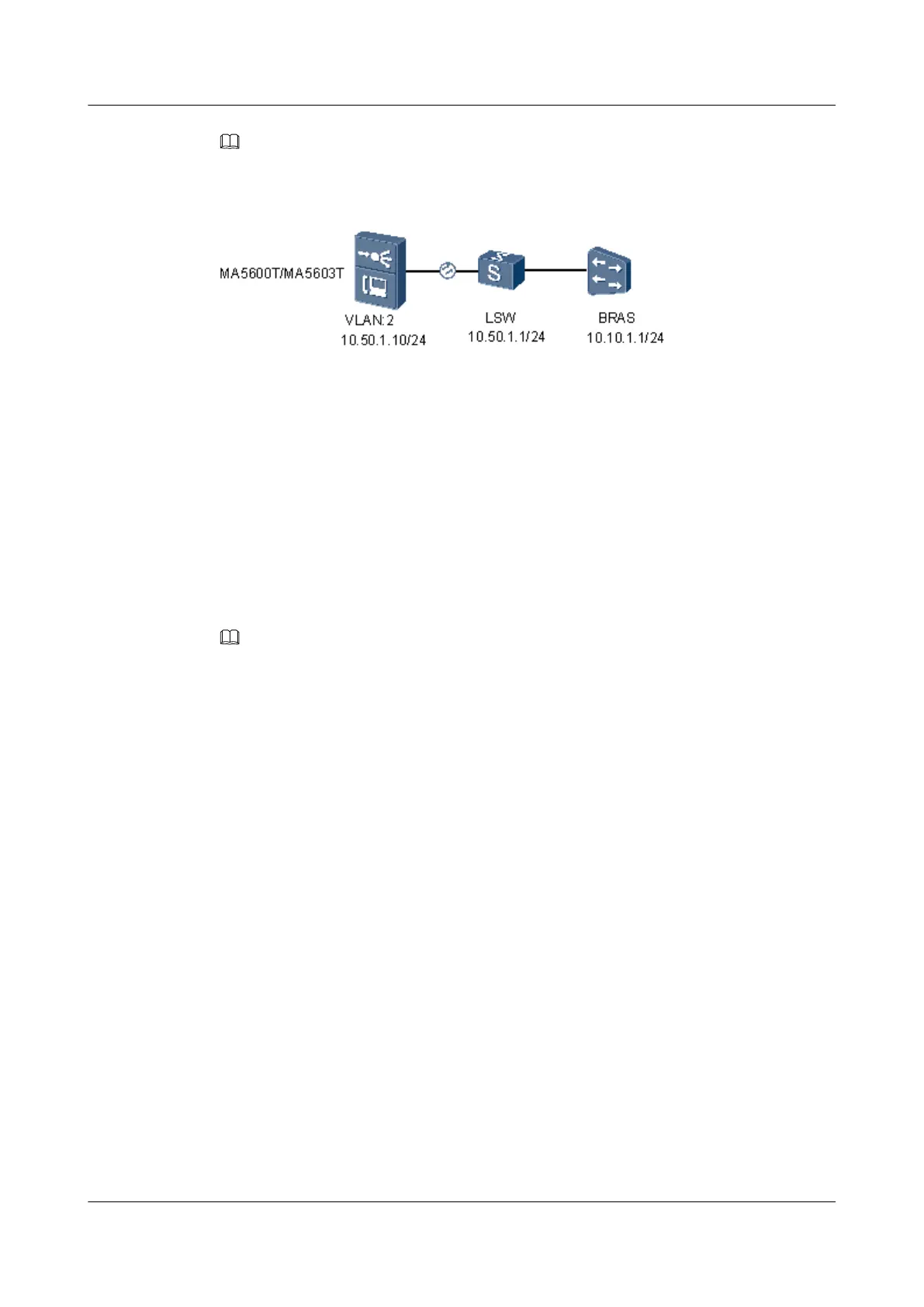

Figure 1-72 Example network for commissioning the interconnection with the BRAS
Procedure
Step 1 Configure a VLAN.
The VLAN ID is 2, and the VLAN type is smart VLAN.
huawei(config)#vlan 2 smart
Step 2 Add an upstream port to the VLAN.
Upstream port 0/19/0 is added to VLAN 2.
huawei(config)#port vlan 2 0/19 0
NOTE
If the packet transmitted from the upstream port is untagged, run the native-vlan command to configure
the native VLAN of the upstream port to be the same as the VLAN of the upstream port.
Step 3 Configure the IP address of the L3 interface.
The L3 interface IP address is 10.50.1.10/24, and this IP address must be in the same network
segment as the gateway IP address (IP address of the router port that is connected to the
MA5600T/MA5603T/MA5608T).
huawei(config)#interface vlanif 2
huawei(config-if-vlanif2)#ip address 10.50.1.10 255.255.255.0
huawei(config-if-vlanif2)#quit
Step 4 Add a static route.
The destination IP address is 10.10.1.0/24 (the network segment of the BRAS), and the next-
hop IP address is gateway IP address 10.50.1.1.
huawei(config)#ip route-static 10.10.1.0 24 10.50.1.1
Step 5 Save the data.
huawei(config)#save
----End
Result
After the MA5600T/MA5603T/MA5608T is interconnected with the BRAS successfully, you
can ping IP address 10.10.1.1 from the MA5600T/MA5603T/MA5608T. After services are
configured on the MA5600T/MA5603T/MA5608T, the authentication and accounting functions
of the BRAS can be implemented.
