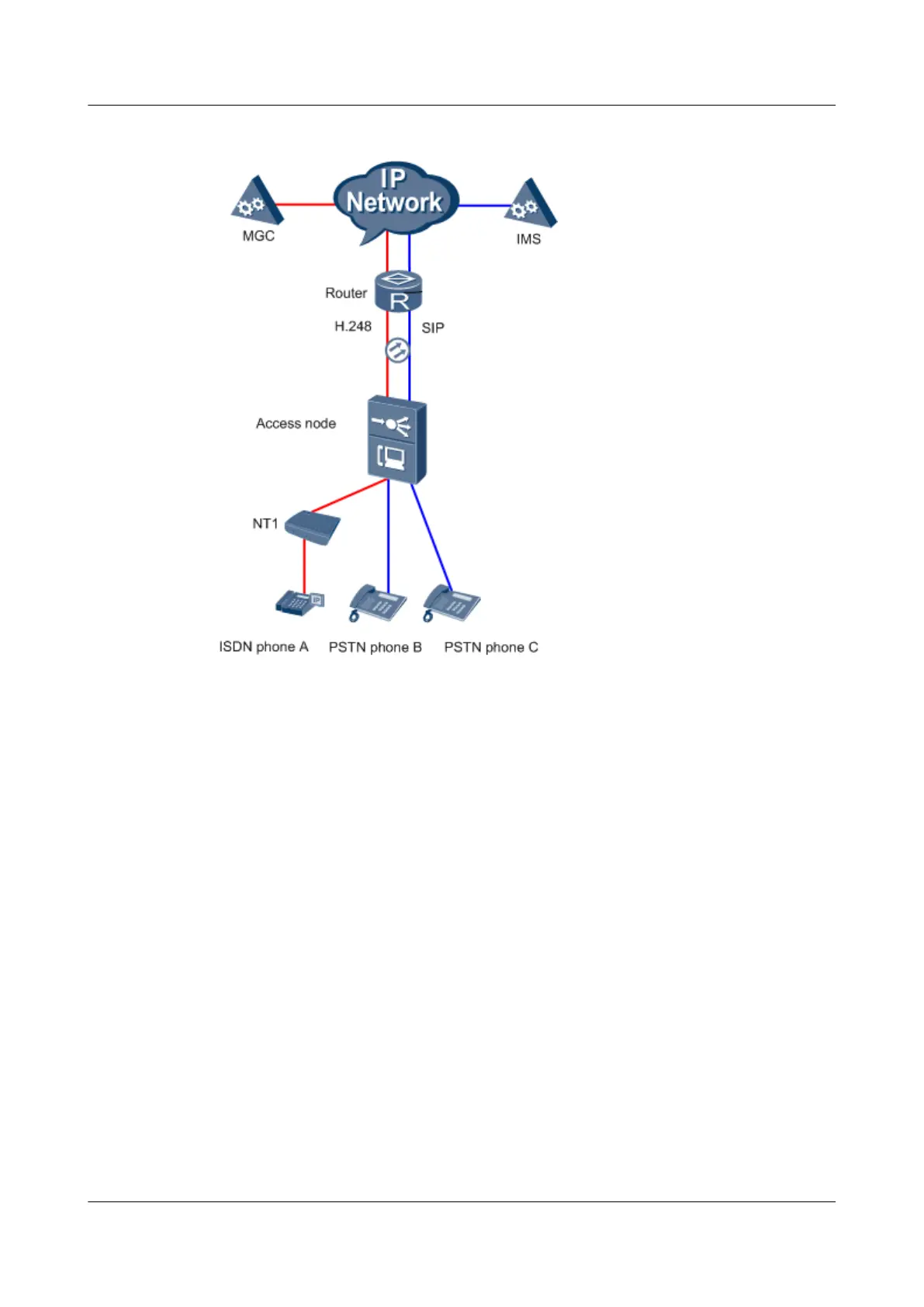

Figure 3-12 the network of the VoIP service that based the SIP protocol and H.248 protocol.
Prerequisite
l The MA5600T/MA5603T must use the H.248 protocol to communicate with the MGC and
use the SIP protocol to communicate with the IMS.
l The H.248 interface and the system parameters must be configured. For the related
operations, see Configuring an MG Interface and (Optional) Configuring the System
Parameters. The H.248 interface must be in the normal state.
l The SIP interface and the system parameters must be configured. For the related operations,
see Configuring an SIP Interface and (Optional) Configuring the System Parameters. The
SIP interface must be in the normal state.
l The system must be configured with the ISDN service board, that is, the DSRD board or
DSRE board.
l The system must be configured with the PSTN service board, that is, the ASRB board or
ASPB board.
l The ISDN digital phone must support the P2P function.
l The terminal endpoint identifier of the ISDN digital phone must be 0.
Data Plan
Table 3-6 provides the data plan .
SmartAX MA5600T/MA5603T/MA5608T Multi-service
Access Module
Commissioning and Configuration Guide
3 Configuring the DSLAM Services
Issue 01 (2014-04-30) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
324
