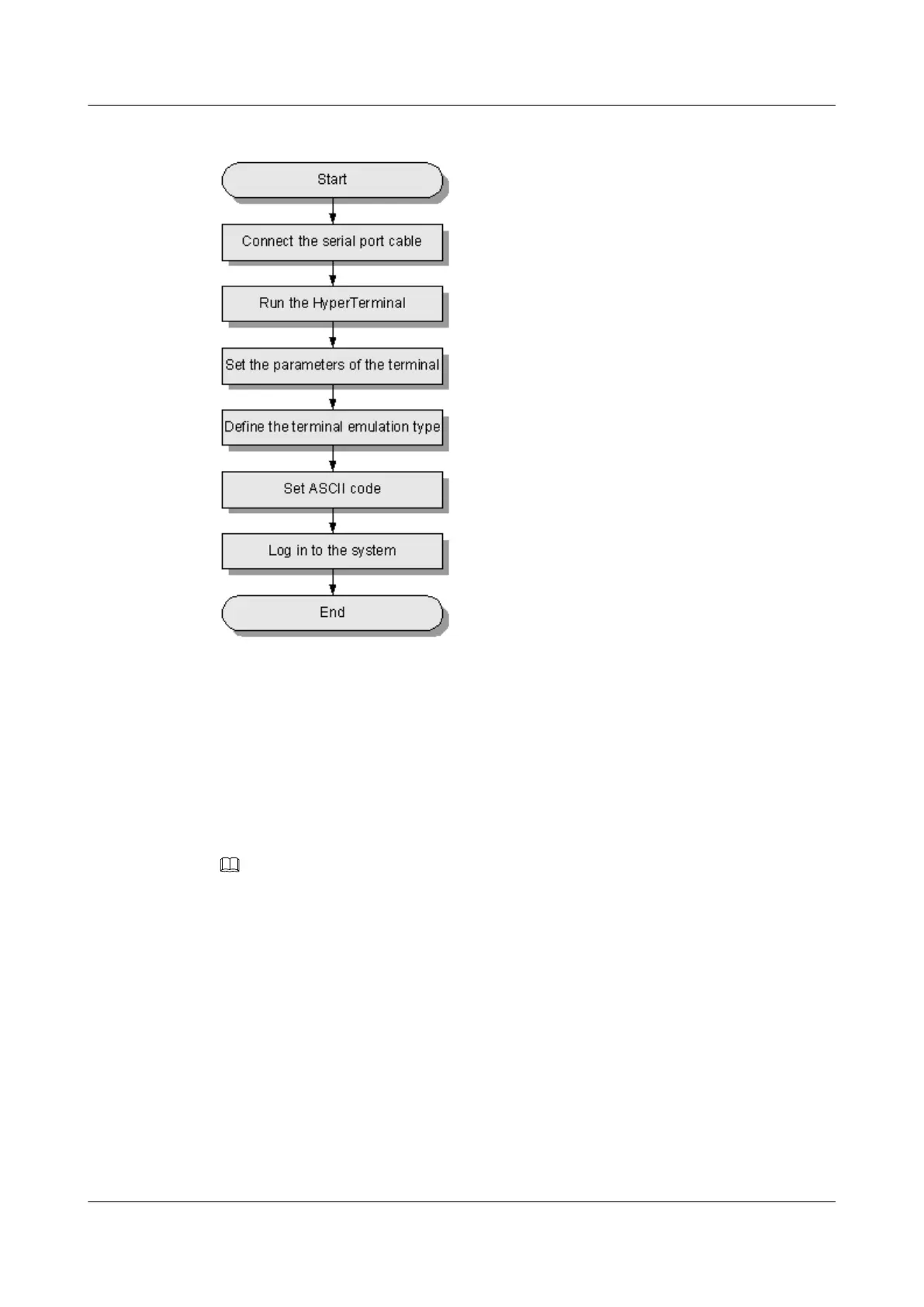

Figure 1-11 Flowchart for logging in to the system through the local serial port
Procedure
Step 1 Connect the serial port cable.
Use an RS-232 serial port cable to connect a serial port of the PC to the CON port of the SCU
control board, as shown in Figure 1-10.
Step 2 Set the HyperTerminal communication parameters.
NOTE
This section uses the HyperTerminal of the Windows XP OS as an example. If other OSs, such as Windows
7, are not equipped with the HyperTerminal, download the HyperTerminal.
The following section considers the typical mode in Windows as an example to describe how to log in to
the system in the local serial port mode. Other modes are not described here.
1. Set up a connection.
Click Start. Choose All Programs > Accessories > Communications > Hyper
Terminal to display the Connection Description dialog box. Input the connection name,
and click OK, as shown in the following figure.
SmartAX MA5600T/MA5603T/MA5608T Multi-service
Access Module
Commissioning and Configuration Guide
1 Commissioning
Issue 01 (2014-04-30) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
22
