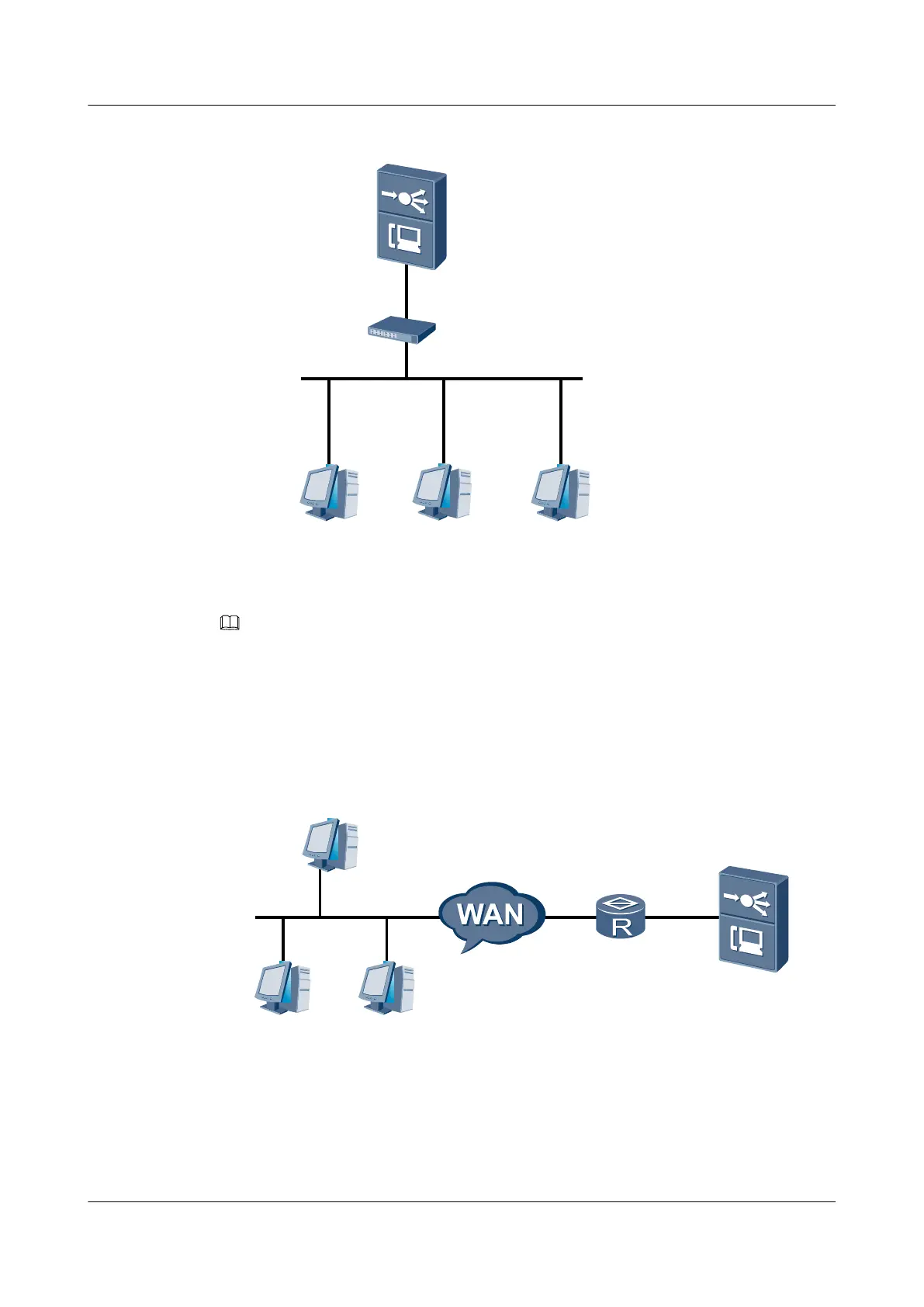

Figure 1-23 Example network for outband management through SSH in a LAN
NOTE
The MA5600T/MA5603T/MA5608T is connected to the LAN using the straight using cable, and the IP
address of the maintenance Ethernet port of the MA5600T/MA5603T/MA5608T is in the same network
segment as the IP address of the maintenance terminal. Alternatively, the Ethernet port of the maintenance
terminal can be directly connected to the maintenance Ethernet port of the MA5600T/MA5603T/
MA5608T to manage the MA5600T/MA5603T/MA5608T in the outband management mode. In such a
condition, if the MA5600T/MA5603T/MA5608T uses SCUL/SCUB control board, and the peer device
does not support the cable autosensing function, a crossover cable must be used.
Figure 1-24 Example network for outband management through SSH in a WAN
PC
PC
PC
Router
LAN
Access node
Data Plan
Table 1-16 and Table 1-17 provide the data plan for the outband management through SSH in
a LAN and in a WAN respectively.
SmartAX MA5600T/MA5603T/MA5608T Multi-service
Access Module
Commissioning and Configuration Guide
1 Commissioning
Issue 01 (2014-04-30) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
39
