NOTE
If dual-homing is configured, Secondary Proxy Server must be set.

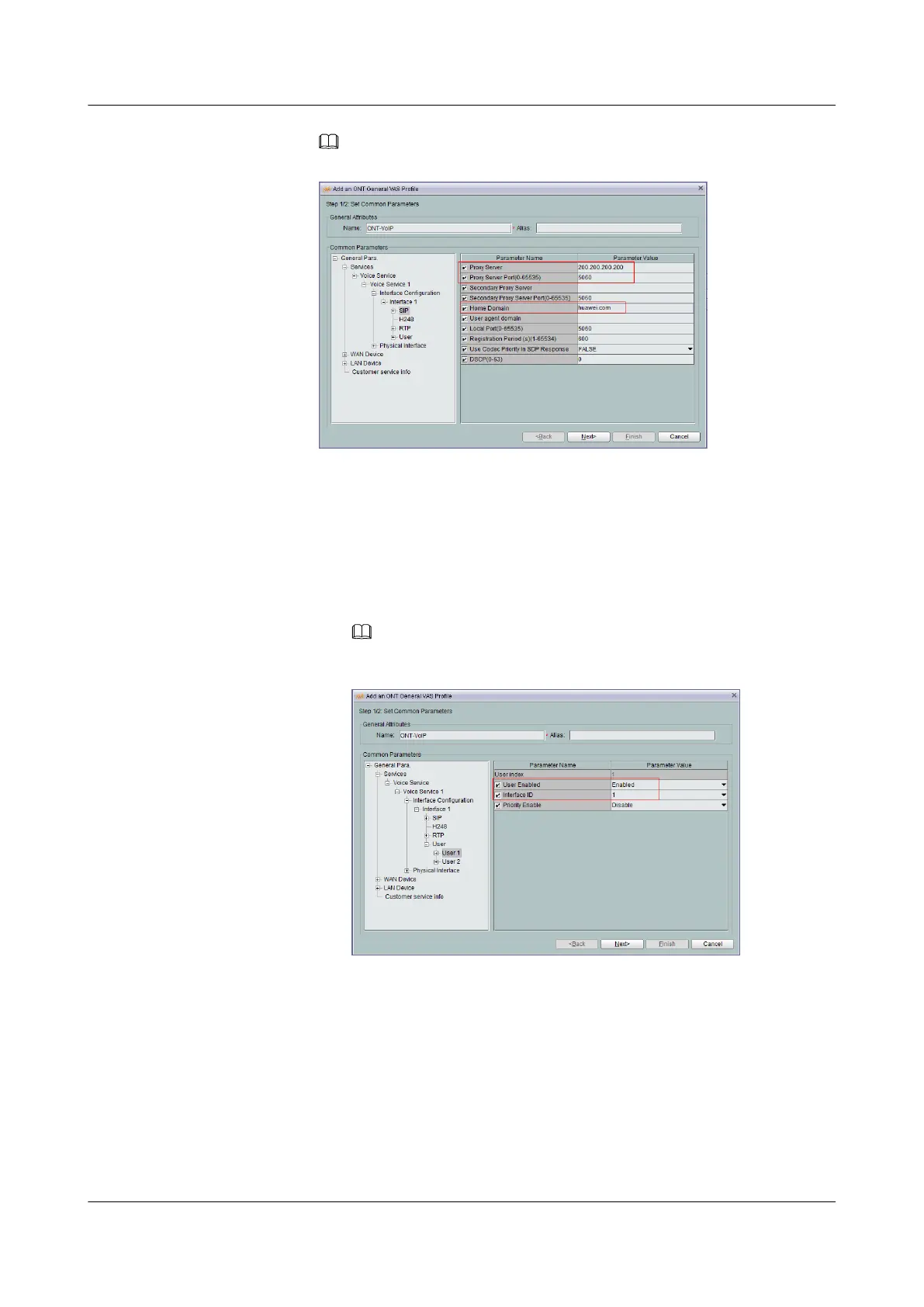

g. Configure the voice users.
a. In the navigation tree, choose General Para > Services > Voice Service >
Voice Service 1 > Interface configuration > Interface 1 > User. Right-
click User and choose Add from the shortcut menu.
b. Select User 1 under the User node. In the right pane, set User Enabled to
Enable, and Interface ID to 1. Then, select User 2 under the User node.
In the right pane, set User Enabled to Enable, and Interface ID to 2.
NOTE
If Interface ID is 1, port TEL1 on the ONT is bound. If Interface ID is 2, port TEL2
on the ONT is bound.
h. Click Next.
i. In the dialog box that is displayed, set vendor ID to HWTC, Terminal Type to
General Type, and Version to V1R003C00-ZZ, click Add.
SmartAX MA5600T/MA5603T/MA5608T Multi-service
Access Module
Commissioning and Configuration Guide
9 FTTH Configuration
Issue 01 (2014-04-30) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
690
