Chapter 3 • Installing the HN7000S remote terminal
10
1037076-0001 Revision C
2. Position the HN7000S and pedestal base as shown in
Figure 4, aligning the bottom set of ventilation openings on
the HN7000S with the guides on the pedestal base.
3. Gently slide the HN7000S into the pedestal base until it locks
into position.

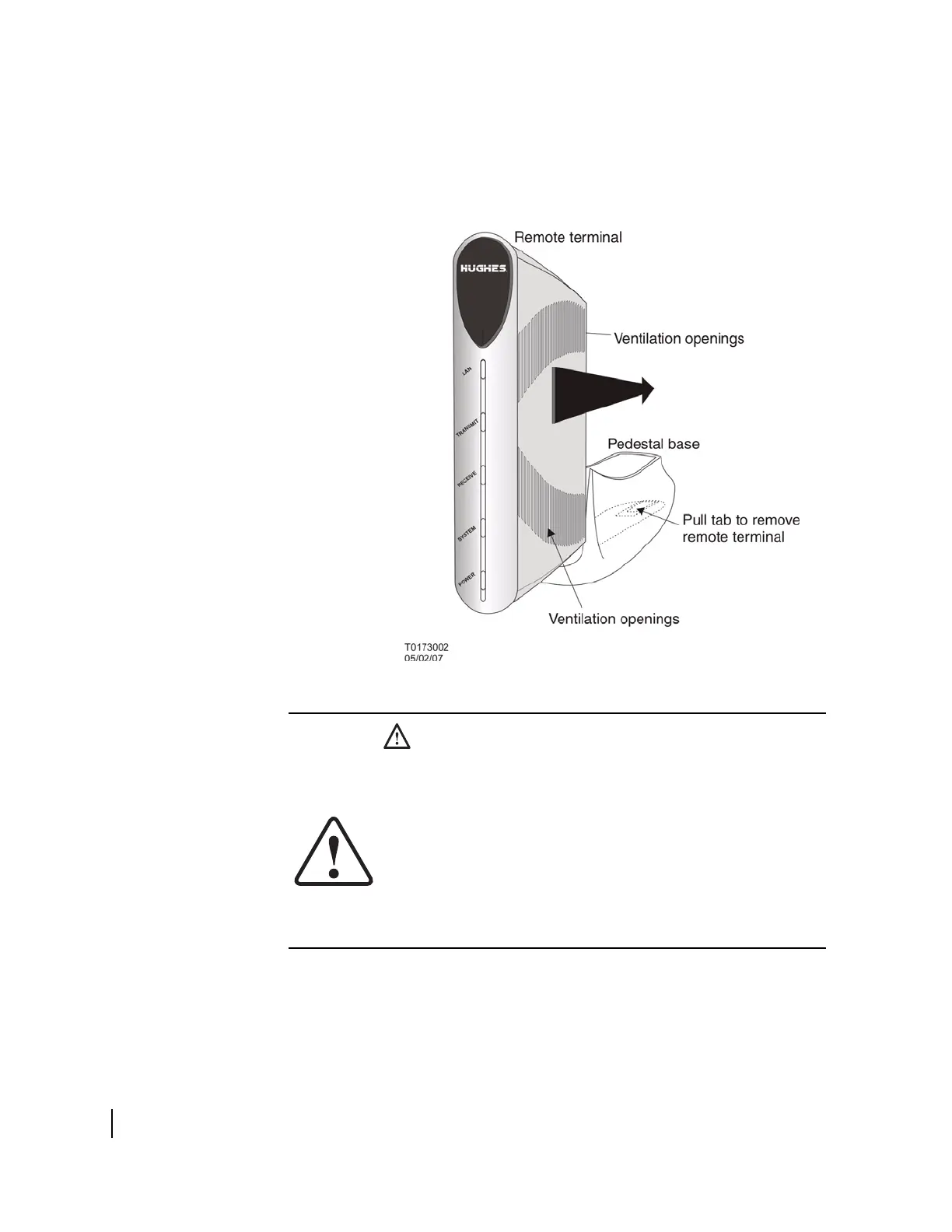

Figure 4: Attaching the HN7000S terminal to the pedestal base
CAUTION
• Do not connect the power supply to the HN7000S
remote terminal and power source until instructed to do
so.
• Do not block the remote terminal’s ventilation openings.
Do not place the remote terminal near heat sources
such as radiators, heat registers, ovens, stoves, or other
components that produce heat.
• Leave approximately 6 inches of space around the top
and sides of the remote terminal to ensure proper
ventilation and to avoid overheating.
