Version 24DM
Adjustments 7--13

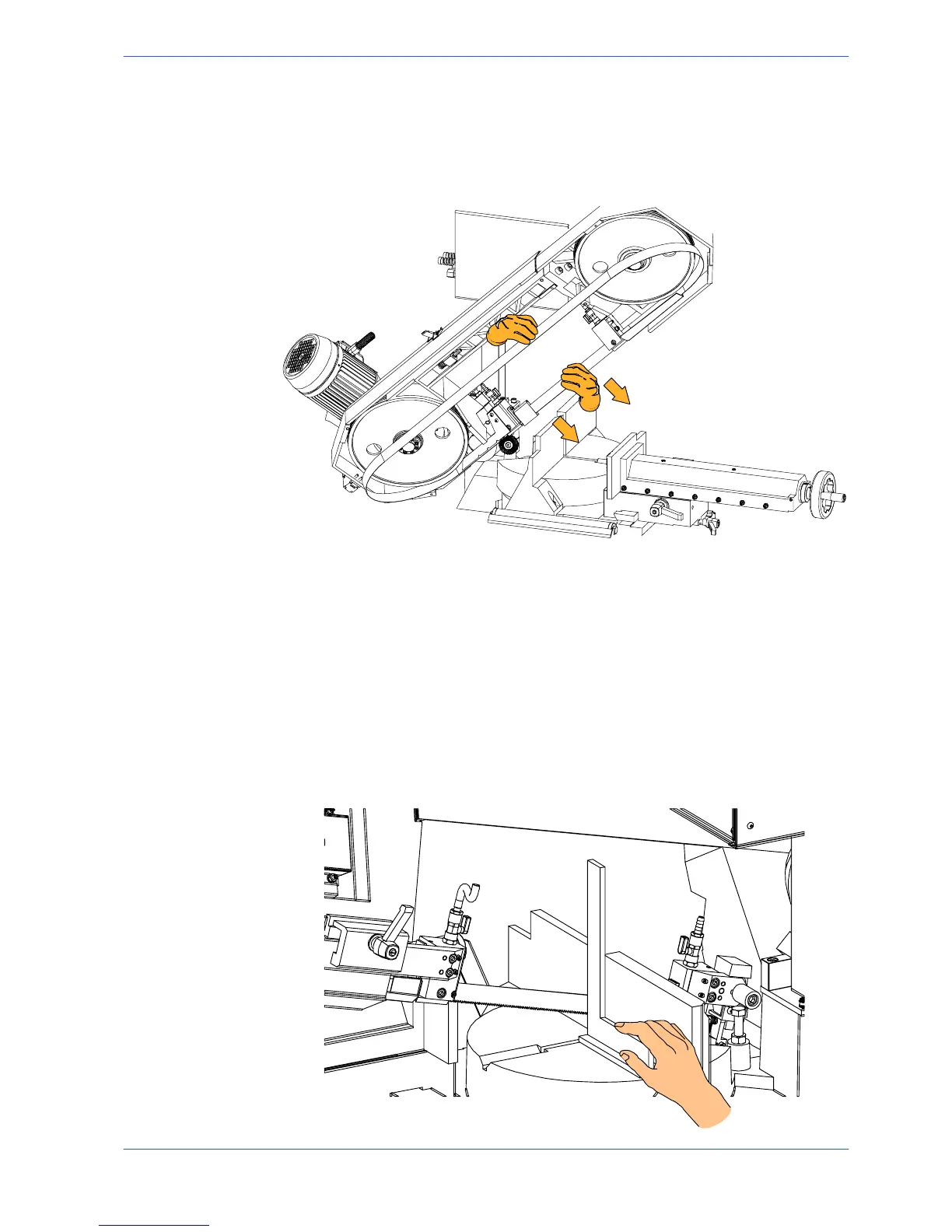

" Fit the new blade into the front blade guide head.
" Make sure the back of the blade is facing the flywheel stop and that the teeth
along the lower part of the blade are inclined towards the head pivot
" Make sure there i s a small amount of play between the blade and guide plate
inserts.
" Repeat the above sequence of steps on the rear blade guide head.
" Fit the blade on the flywheels and remount the front and rear blade guards.
" Close the cutting head cover, correctly tension the blade and power up the
machine.
Blade perpendicu larity
The perpendicularity of the blade to the work surface, and also the blade tension,
are vital for achieving straight cuts. This adjustment is carried out with the help of
a workshop square, which should be placed adjacent to the blade resting on the
work surface.
" Position the square on the cleaned work surface and rest it against the blade,
close to the right vice jaw at a point where the blade teeth do not prevent
contact.
