Hyd-Mech DM8 - Rapid Opening;Closing of the Vice; Rapid Translation of the Vice

Version 24DM
Description of machine operation 5--5

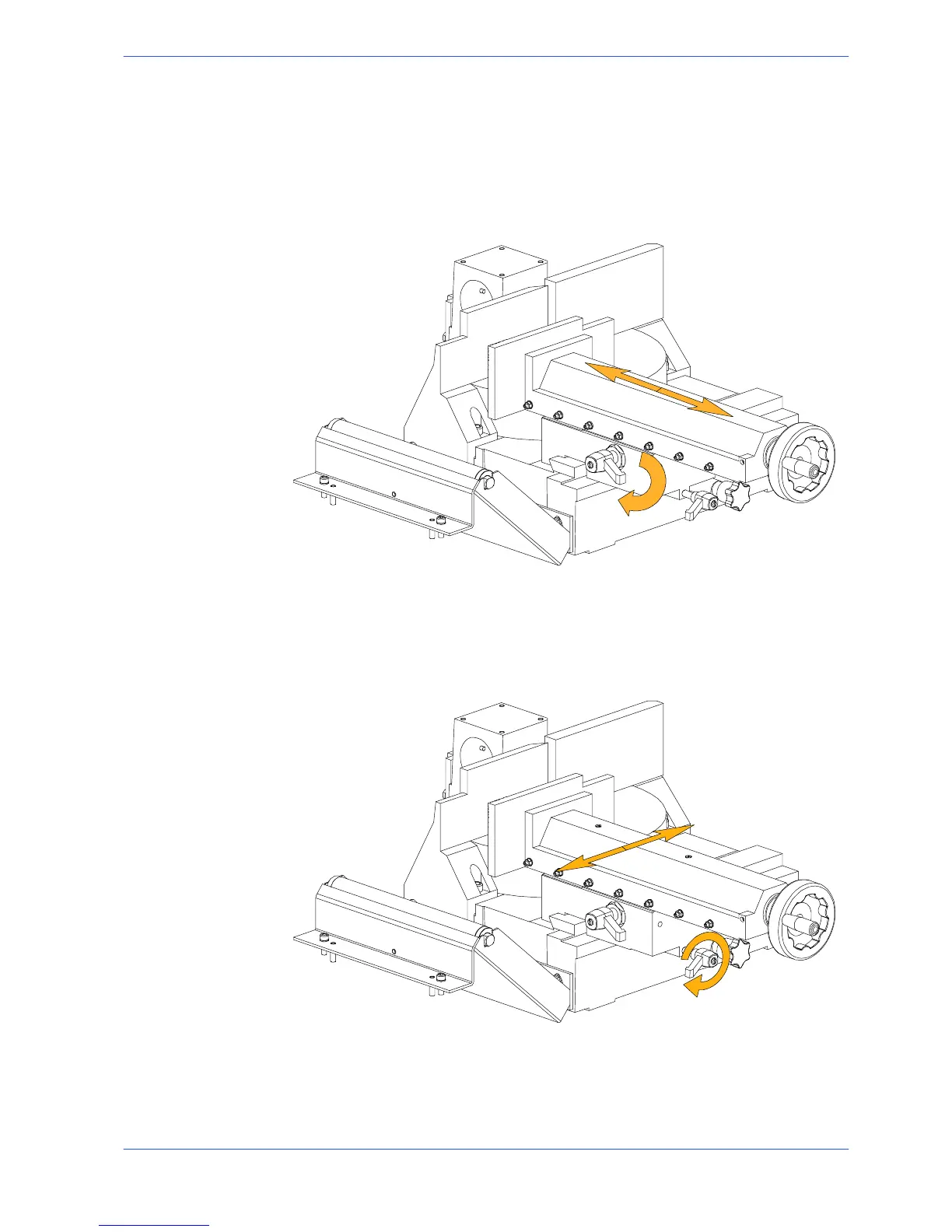

Rapid opening/closing of the vice
Using a simple device the vice can be slid forwards and backwards to accelerate
vice opening and closing operations.
" Grip the lever as indicated in the photograph and rotate in a clockwise direc-
tion: the vice is free to slide forwards and backwards into the desired position.
when the lever is released, the vice blocks in that position.
Rapid translation of the vice
For inclined cuts move the vice to the left or right, sliding it on the sliding guide.
" L oosen the locking lever as i ndicated in the figure;
" position the vice to the right or left and tighten the locking lever;
