Version 24DM
Adjustments 7--17
" This done, adjust the depth of the pin inside the turntable until the error is
corrected.
" Relock the nut, while gripping the grub screw.

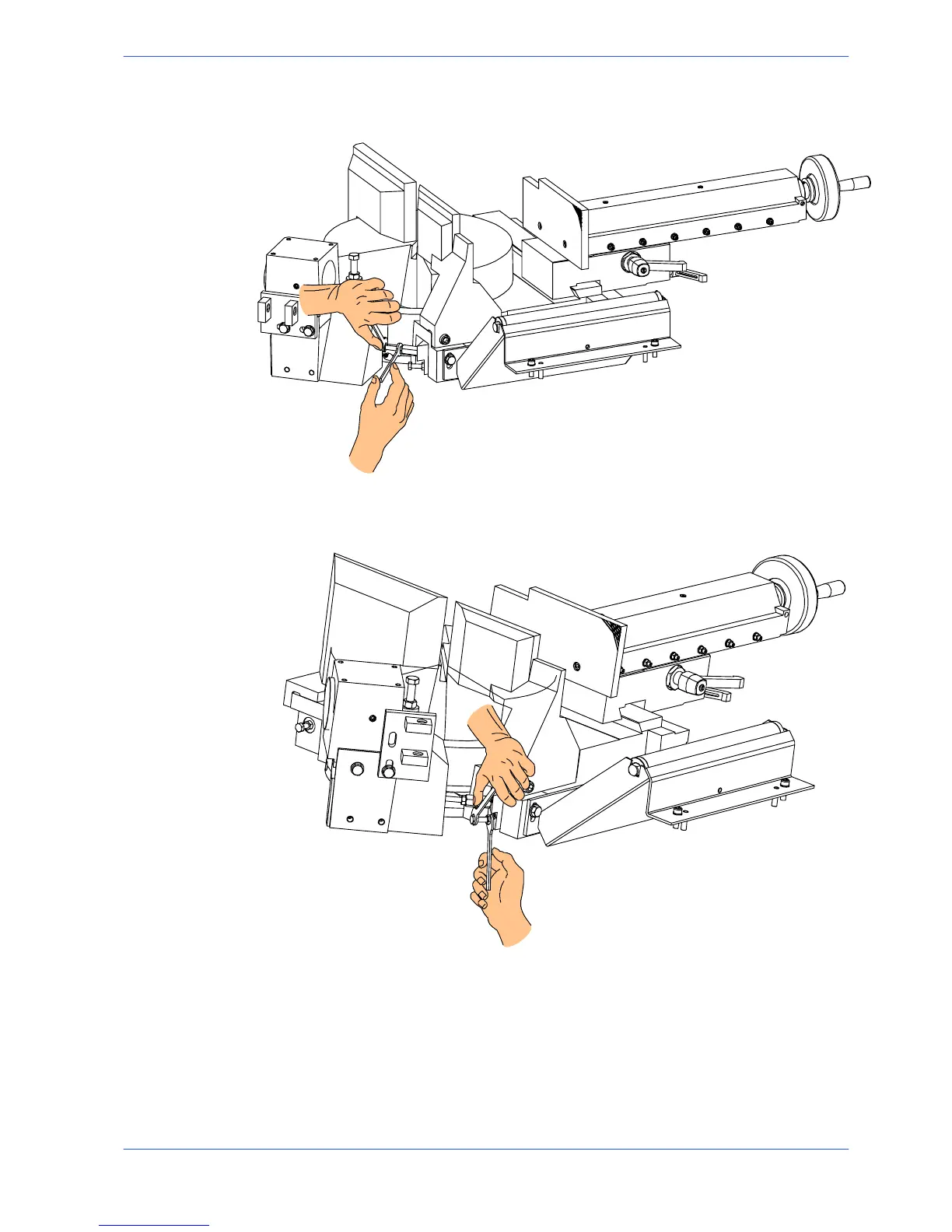

To adjust the blade to 60 degrees left, proceed as described above for a 45 degree
angle, this time however, adjusting the stop indicated in the drawing below.
Front flywheel
The front flywheel must be adjusted so that it is aligned with the rear wheel. The
purposeofthisadjustmentistomakesurethebackofthebladeremainsabout1
mm from the edge of the flywheel during rotation. This prevents premature wear
to the blade which, due to excessive friction with the edge, may crack.
" Slacken the blade tension and open the cutting head cover.
" Slacken the grub screw and, using a mallet, tap the shaft in or out.
" Finally, close the cover and set the blade in motion.
