7--18 Use and maintenance manual DM 8

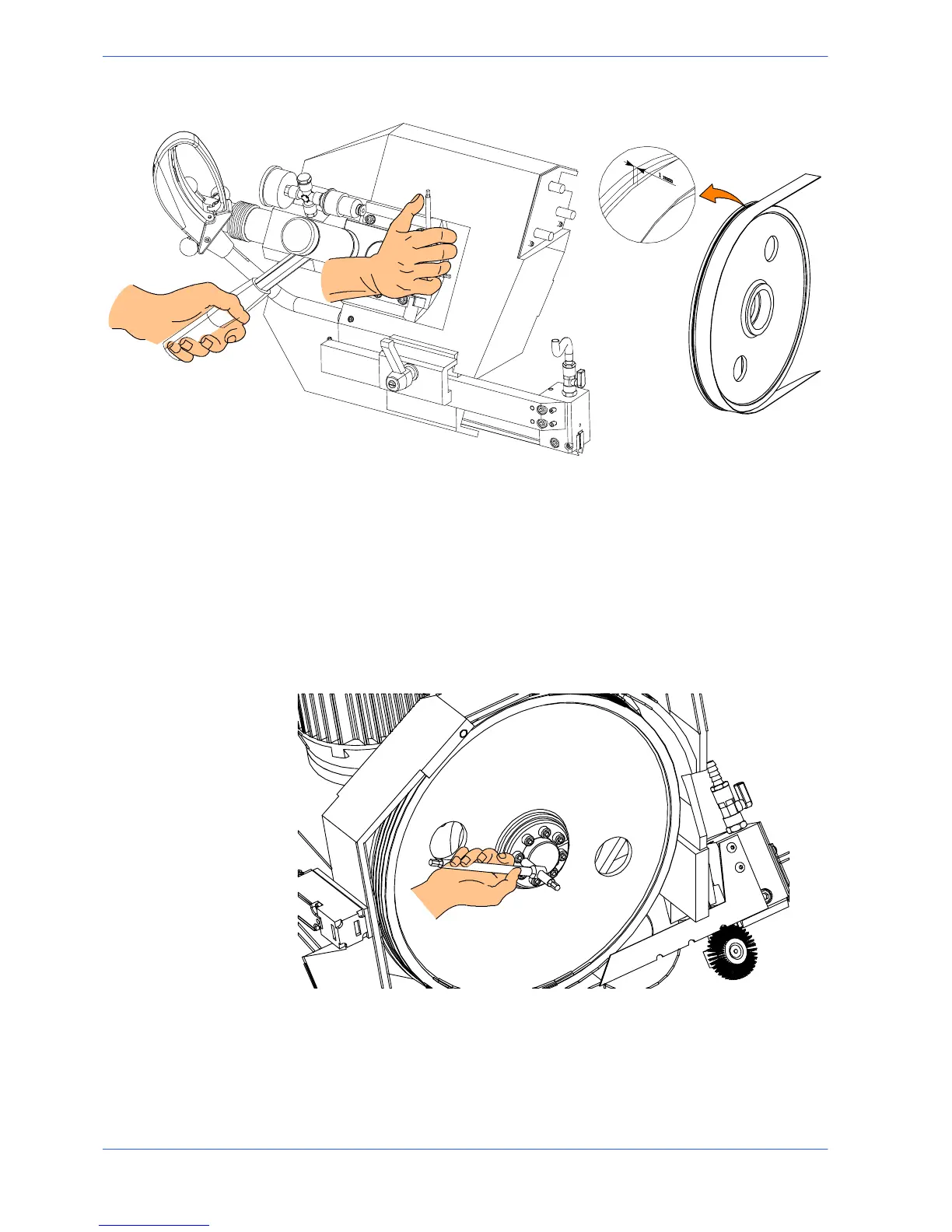

" Check the distance between the blade and edge of the wheels.
" If necessary, repeat the above operation until a gap of 1 mm is obtained be-
tween the back of the blade and edge of the wheels.
Motor flywheel
Rear flywheel alignment is closely linked to adjustment of the front flywheel. As
before, the purpose of this adjustment is to ensure that the back of the blade
remains about 1 mm from the edge of the wheel during rotation.
" To adjust, slacken all the locking screws on the flywheel and manually move it
in or out until the blade is correctly distanced from the edge of the wheel.
Retighten the screws and check alignment by rotating the blade a few times. If
necessary, readjust.
