Version 24DM
Machine installation 4--7
Connection to the power supply
Before connecting the machine to the power supply, check that the socket is not
series---connected with other machines. This requirement is fundamental for
efficient operation of the machine.
To connect the machine to the power supply, proceed as follows:

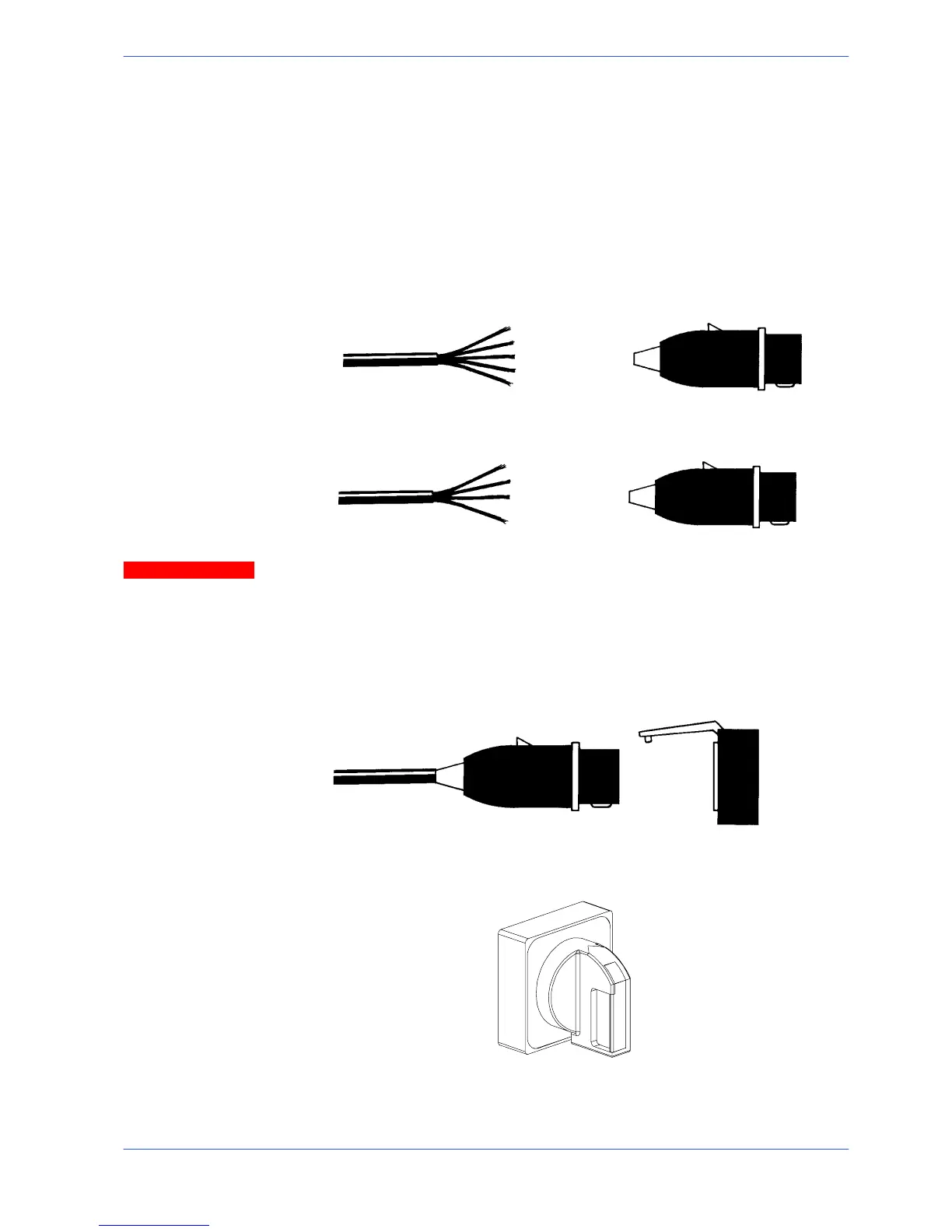

" connect up the machine power supply cable to the correct plug for the socket
to be used (EN 60204---1, se ction 5.3.2)
R=L1
S=L2
T=L3
PE = GND
N = NEUTRAL
CONNECTION FOR 5--CORE WIRE SYSTEMS WITH NEUTRAL
R=L1
S=L2
T=L3
CONNECTION FOR 4--CORE WIRE SYSTEMS WITH NEUTRAL
PE = GND
When using systems with a neutral wire, special care must be taken when con-
necting the blue neutral wire, as if it is connected to a phase wire it will dis-
charge the phase voltage to the equipment connected for voltage: phase--
neutral.
" Insert the plug in the socket, ensuring that the mains voltage is the same as
that for which the machine has been set up.
VOLT ? VOLT ?
" Power up machine by rotating the main switch located on the right side of the
control panel (The STAND BY LED lights up);
Check that the motor is rotating in the correct direction. For this check the
following operations must be carried out:
" set the blade tension to 70 BAR (1015 psi);
Attention
