Version 24DM
Description of machine operation 5--3

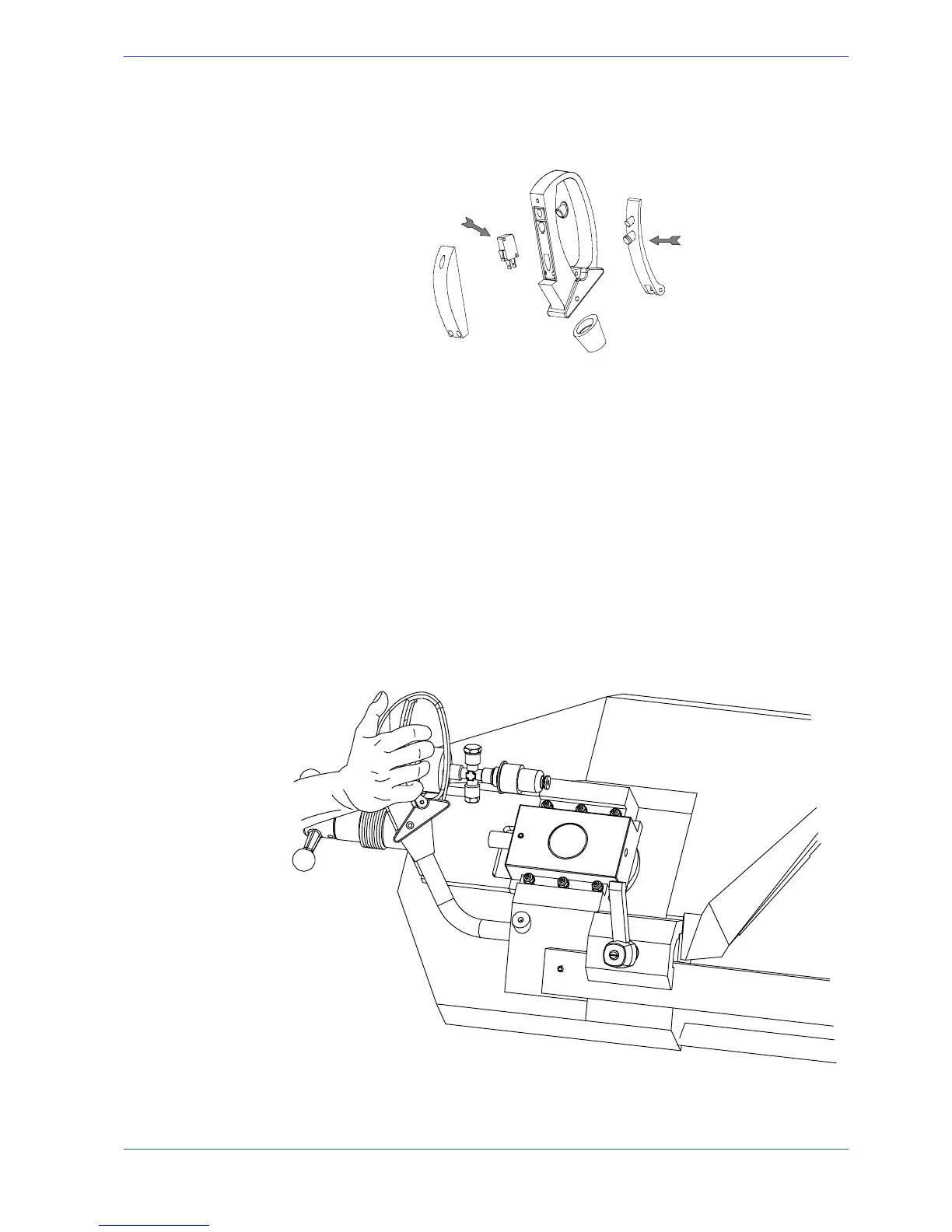

HEAD CONTROL LEVER MICROSWITCH
The grip of the manual head control lever incorporates a microswitch for manual
control of the blade motor.
Operating
lever
Microswitch
The microswitch is enabled when the machine is not in emergency state. In
compliance with the relevant existing standards, voltage is 24V and the micro-
switch is installed in a housing (blue knob) sealed against external agents such as
dust or moisture, with a protection rating of IP 55.
Basic instructions for carrying out a cutting operation cycle.
Manoeuvring the cutting head
Cutting head movement is facilitated by perfect balancing of the head weight,
thanks to the traction force exerted by the two return springs located at the back
of the machine.
Also, the grip on the head control lever enables the operator to achieve a firm
grip in order to start up band saw rotation by pressing the microswitch start lever,
located in the handle itself.
