Version 24DM
Description of machine operation 5--11
" Grip the head control lever and move the blade in the proximity of the mate-
rial to be cut: when you reach a distance of approx. 10 mm select function
type: Semi---automatic or Dynamic and then press microswitch on the hand-
grip to start up blade rotation
" The operating head will now perform cutting until it reaches HDL (Head
Downstroke Limit) at which point the motor will stop.
Angled cuts
The machine can make angled cuts from 60˚ left to 45˚ right. Reference stops are
mounted on the sides of the turntable to facilitate rapid 0˚,45˚ and 60˚ cuts to
the left and 45˚ cuts to the right.

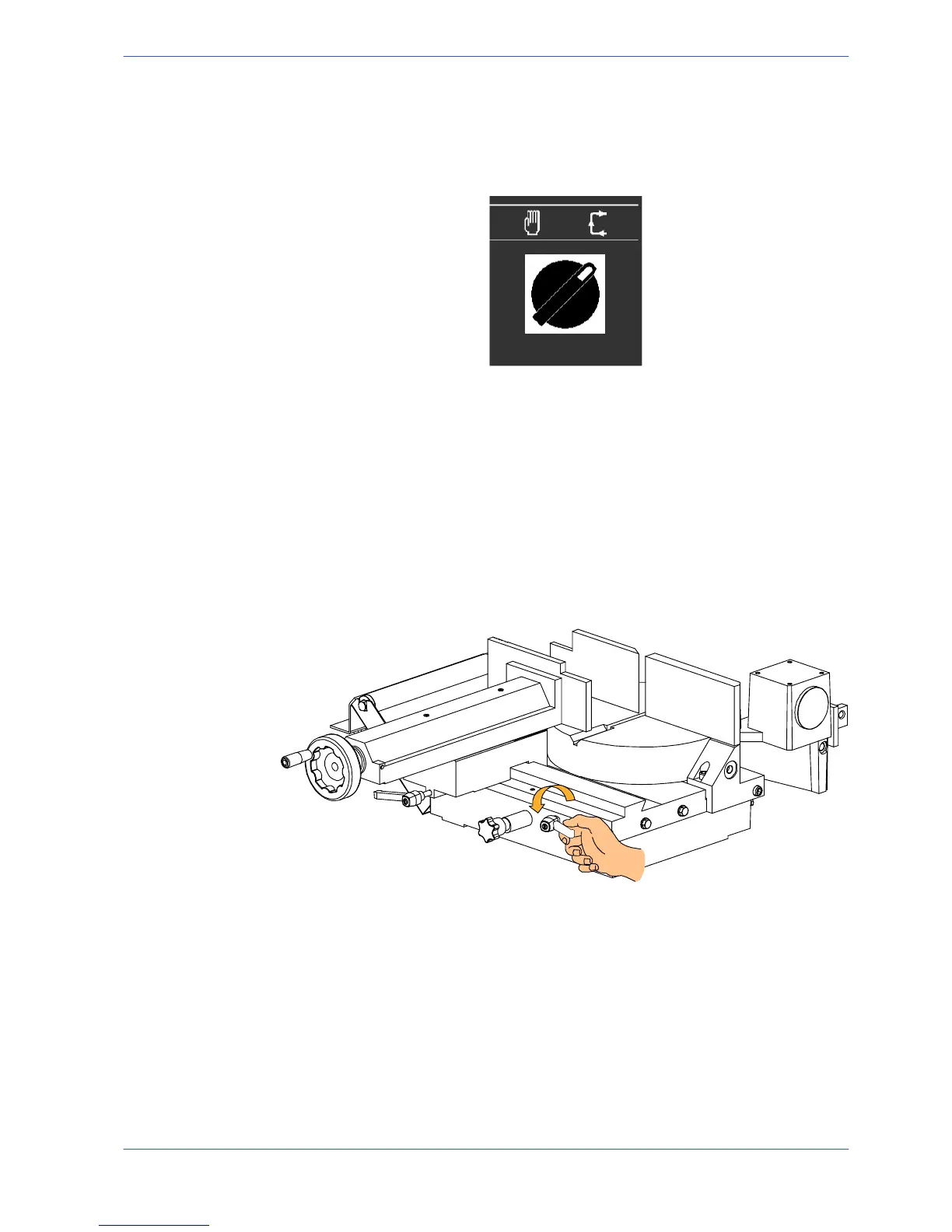

Angled cuts 45˚ to the left
" Make sure the vice is positioned to the left of the 0˚ cutting slot.
" Slacken the turntable lock/release lever.
