Version 24DM
Functional parts 2-- 3

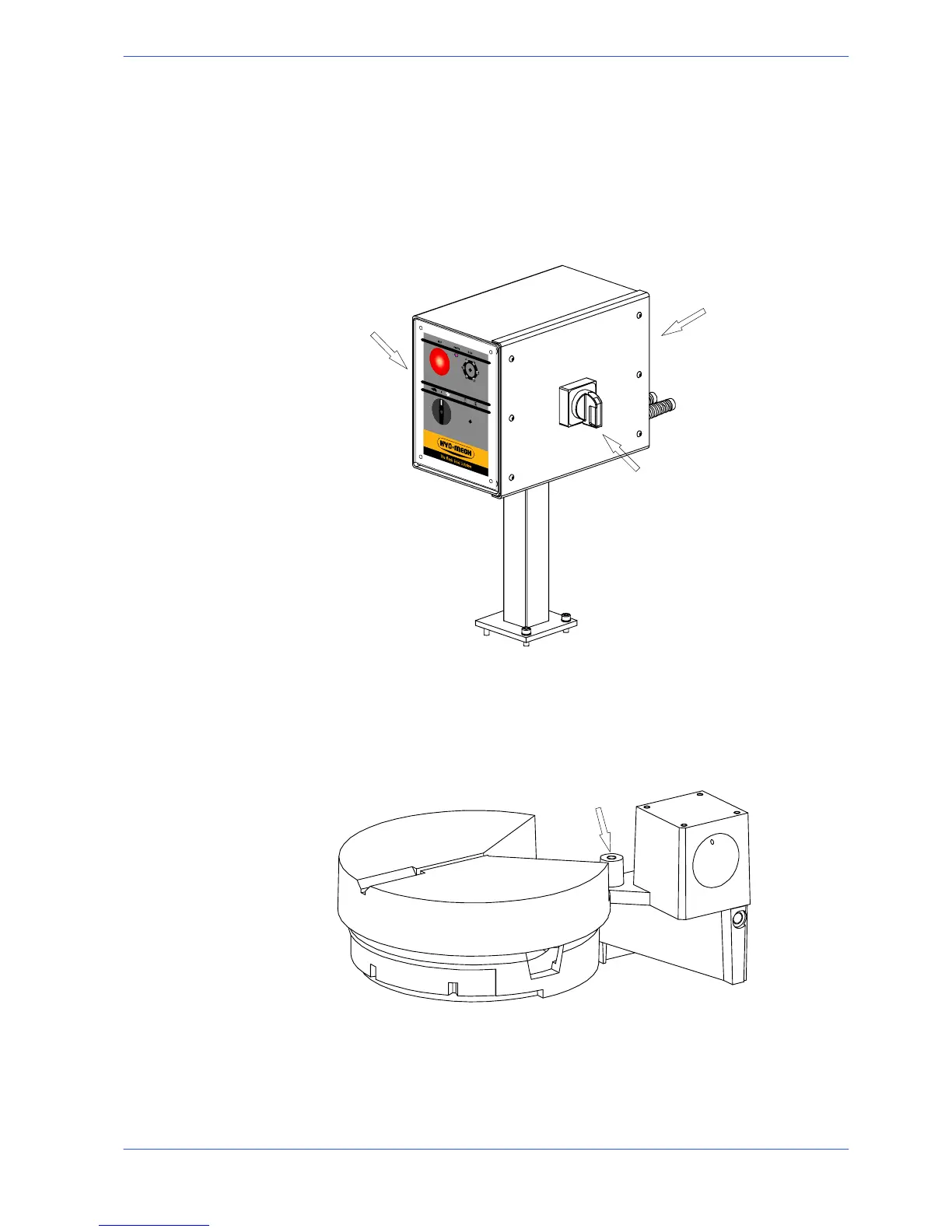

Control panel
The control panel has a protection rating of IP 54 and contains the electrical
equipment. Access is gained by removing the screws fastening a safety panel,
while the operator’s safety is guaranteed by a key---operated safety switch,
designed to prevent any intentional interference with the unit. In order to remove
the panel from its mounting, the main switch has to be shifted to 0 (OFF), which
automatically cuts off the electrical supply.
Panel fastened by
screws
Control
panel
Main switch
Turntable
A cast iron casting forms the fulcrum for the cutting head, and the support for the
work table and the control panel. Releasing the locking lever on the slideway
allows the cutting head to be rotated to the right and to the left.
Cutting head mechanical limiting switch
