MEP S.p.A.
5--14 Use and maintenance manual DM 8
Angled cuts 45˚to the right
" Make sure the vice is positioned to the right of the 0˚ cutting slot.

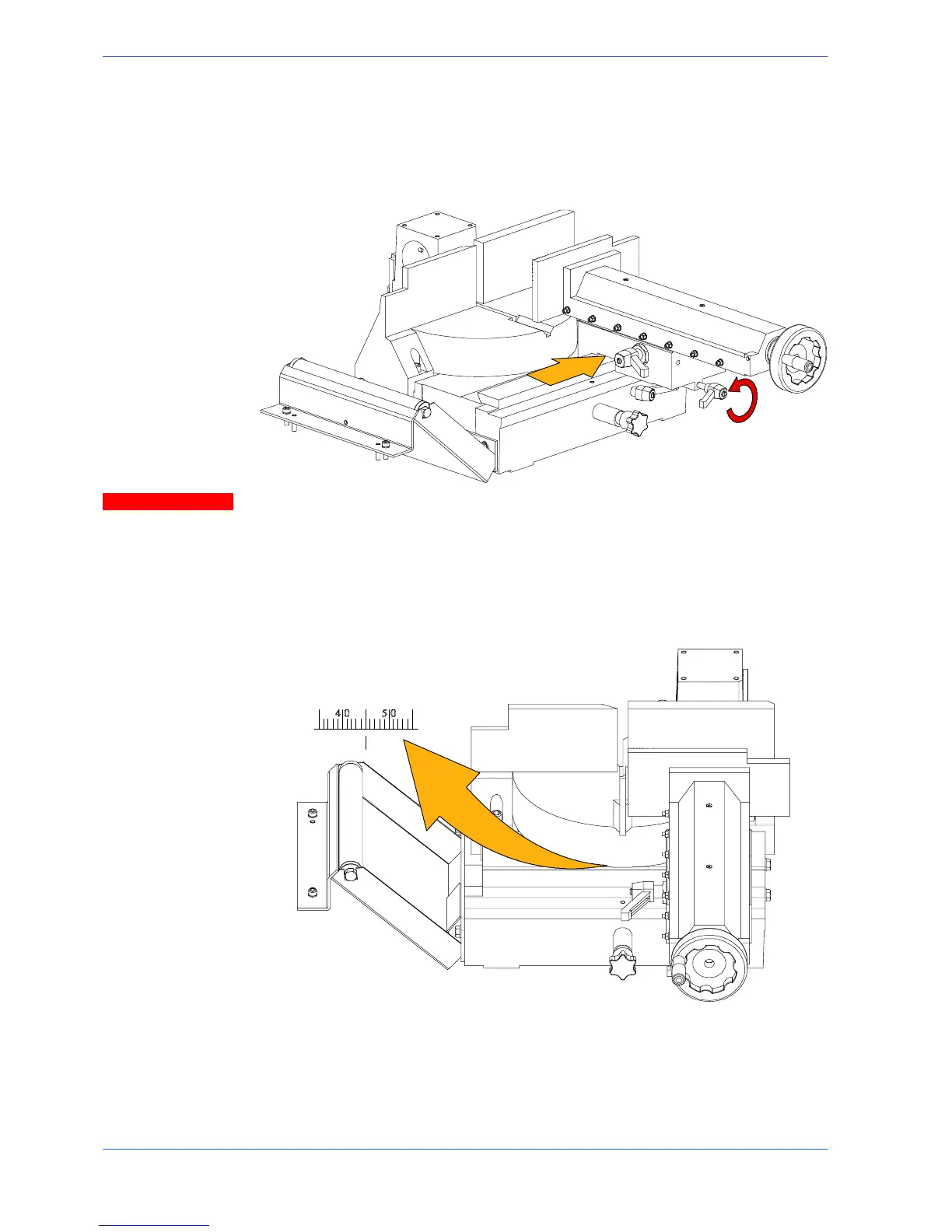

" Slackenthelockingleverasshowninthefigurebelow.
" Position the vice to the right and lock the lever.
When positioning the vice to the left or right, make sure the moving jaw is be-
yond the 0˚cutting slot to avoid any risk of collision with the blade downstroke.
Following the same procedure described above for 45˚ cuts to the left, now
position the head for 45˚ cuts to the right.
" Slacken the turntable lock/release lever.
" Pull the eccentric pin knob towards you (0˚reference stop) and rotate slightly
to raise it.
" Swing the head from left to right until it is positioned at the required angle, as
indicated by the graduated scale on the turntable.
" Relock the turntable lock/release lever.
" Make the cut in the required operating mode, following the preliminary safe-
ty instructions set out in this chapter.
Attention
