4--4 Use and maintenance manual DM 8
To locate the machine in the workplace, the machine dimensions and necessary
operator working space, including the spaces laid down in safety standards, must
be taken into account.
Anchoring the machine
The base of the machine is anchored to the floor by two permanent studs located
on the sides of the base. The studs are screwed into nuts previously sunk into the
concrete, and tightened from above with lock nuts. The schematic specifications
set out in Chapter 1 should be taken into account when positioning the machine.

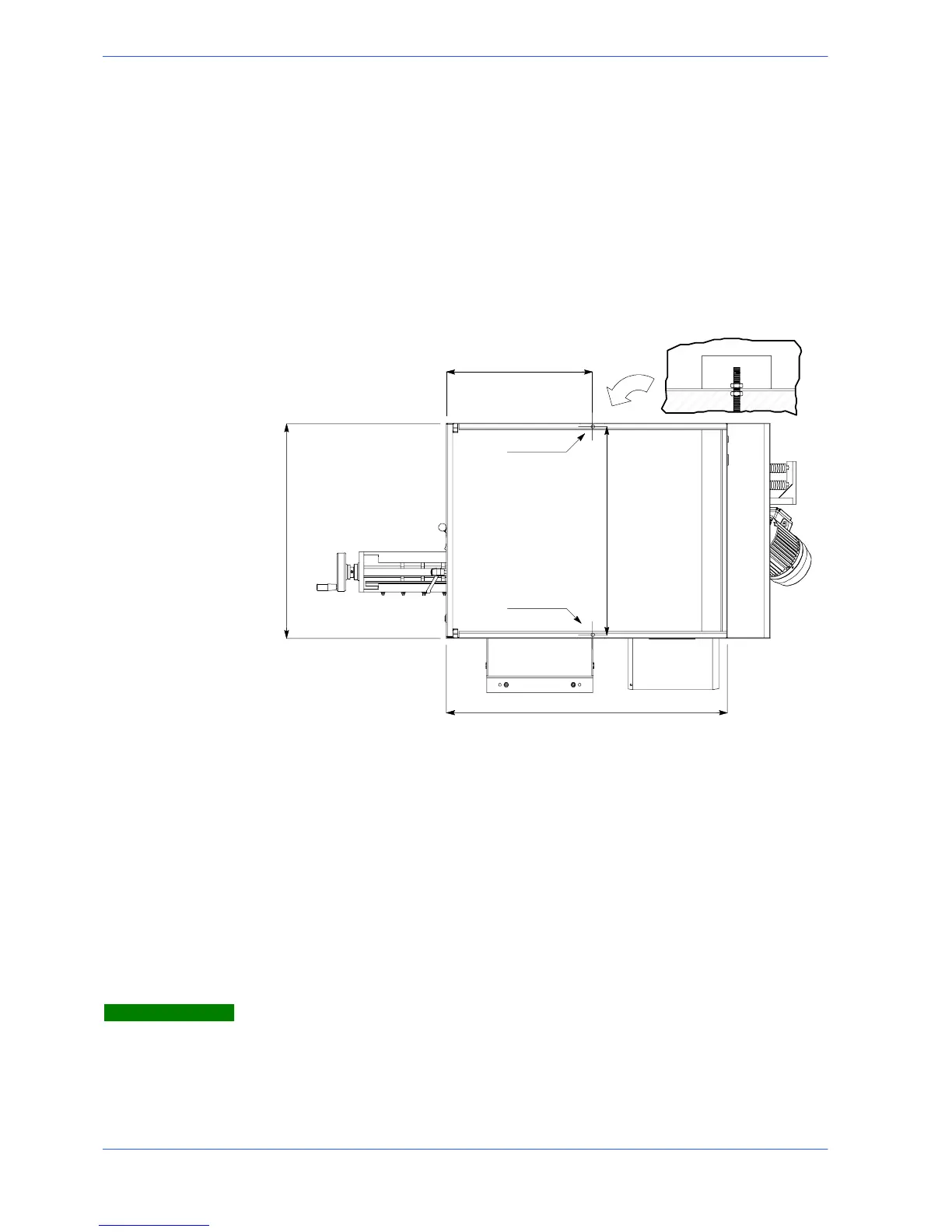

BASE
(seen from below)
Ø12mm0.47in.
920 mm 36.22 in.
480 mm 18.90 in.
704,5 mm 27.74 in.
Ø12mm0.47in.
704,5 mm 27.74 in.
Minimum requirements
For the machine to function correctly, the room in which it is to be installed must
satisfy the following requirements:
- power supply voltage/frequency: refer to the values on the rating plate.
- Working pressure (MA version) not less than 6 Bar (87 psi) and not greater
than 8 Bar (116 psi);
- temperature of machine location: from --- 10 to + 50˚C;
- relative humidity: not more than 90%
- lighting: not less than 500 Lux;
The machine is already protected against voltage variations, but will only run
trouble--free if the variations do not exceed ± 10%.
