Version 24DM
Description of machine operation 5--13
Angled cuts 60˚ to the left

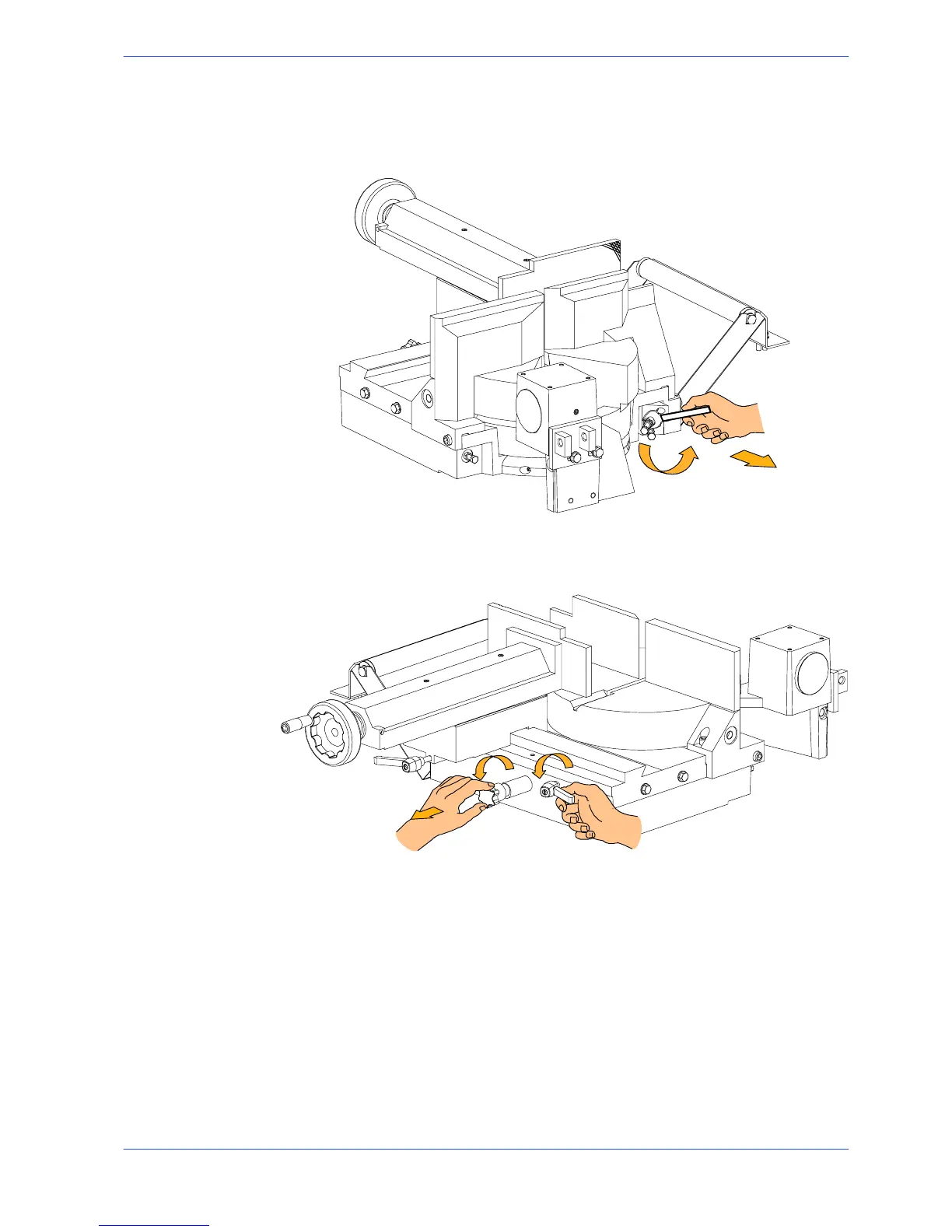

" Undothebushonthe45˚ left reference stop, as illustrated in the figure be-
low, using a 36 mm wrench.
" Slacken the turntable lock/release lever.
" Pull the eccentric pin knob towards you (0˚reference stop) and rotate slightly
to raise it.
" Swing the head from left to right until it is positioned at the required angle, as
indicated by the graduated scale on the turntable.
" Relock the turntable lock/release lever.
" Make the cut in the required operating mode, following the preliminary safe-
ty instructions set out in this chapter.
