MEP S.p.A.
7--16 Use and maintenance manual DM 8

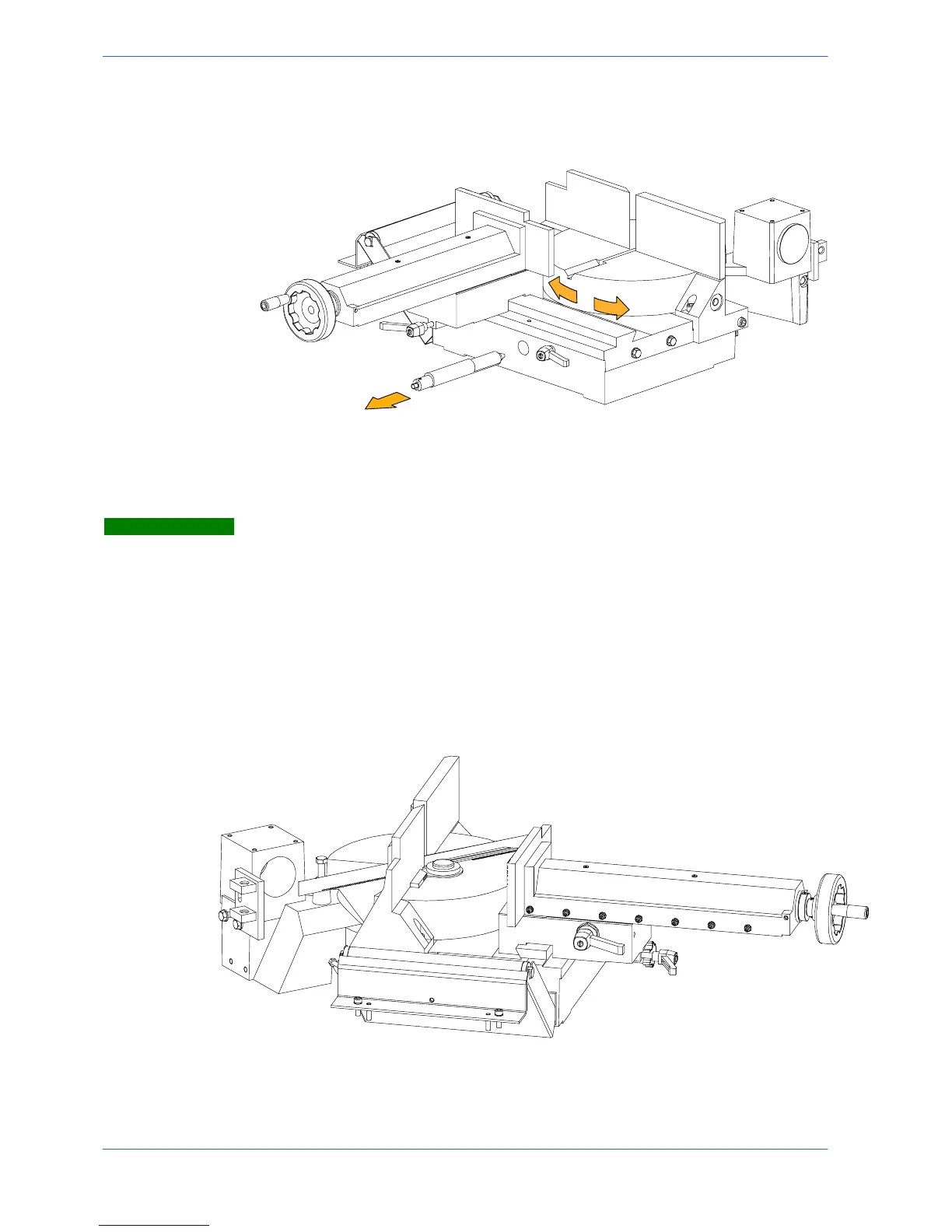

" Turn the head until the error is corrected.
" Refit the eccentric pin, tighten down the grub screw and remount the knob.
" Lock the turntable using the lever.
To adjust the 45˚ and 60˚ fixed points, you will need a workshop machinists
adjustable square or an instrument that can measure the exact angle of the
blade. This operation can also be performed to adjust the blade to 45˚ right,
since a head angle control pin is also mounted on the left hand side of the
work table.
Operation sequence for blade adjustment to 45 degrees:
" Slacken the turntable lock/release lever.
" Turn the head to 45 degrees (left or right).
" Positionthemachinistsadjustablesquareontheworktableandmeasurethe
anglebetweenthevicejawandblade.
" Once you have identified the degree of error, adjust the pins by gripping the
pinwithanAllenkeyandslackeningthelocknutwithanormalwrench.
Warning
