Version 24DM
Adjustments 7--15

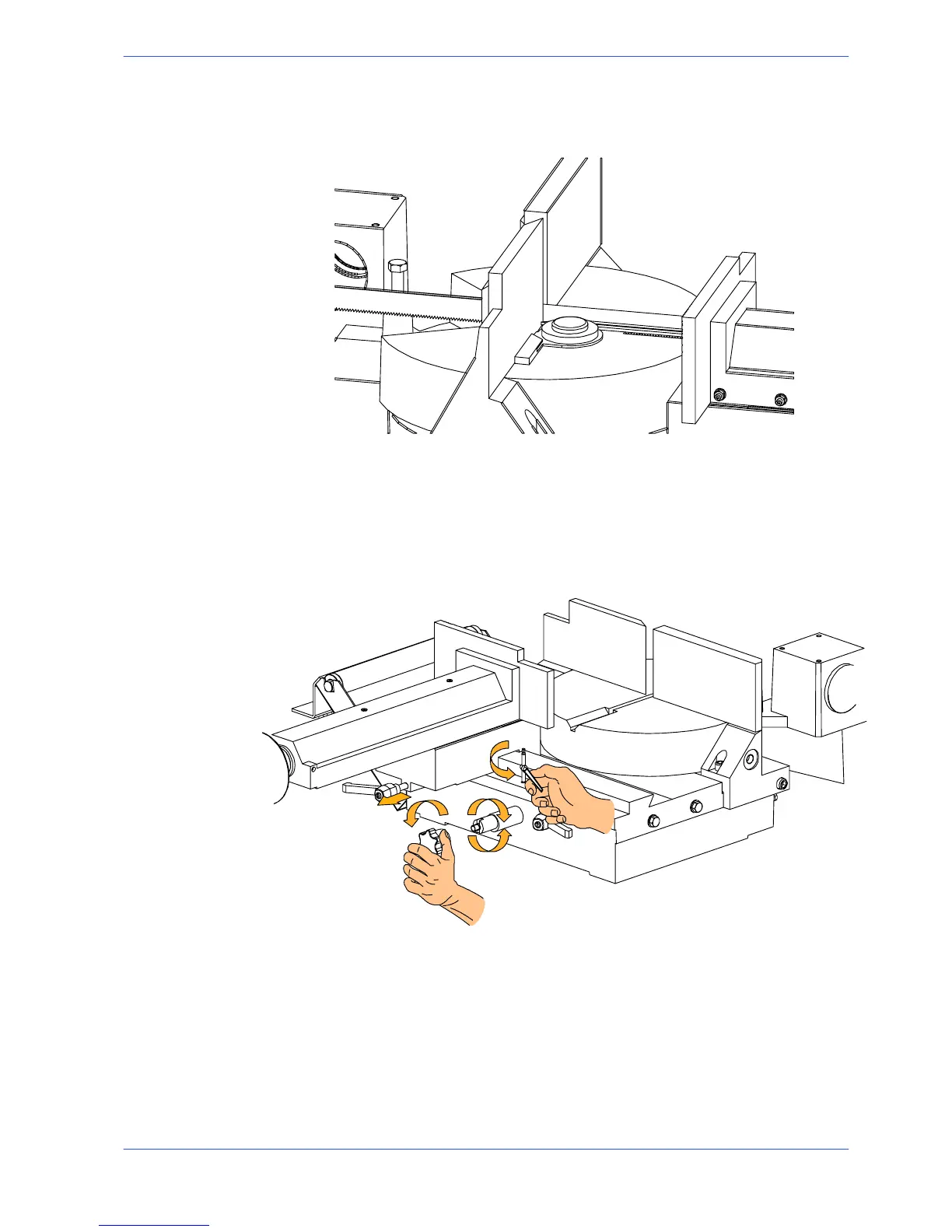

" position the machinists adjustable square or square, resting it on the fixed
vice jaw adjacent to the blade;
" Slacken the turntable lock lever.
" Remove the knob illustrated in the figure below controlling the eccentric lock
pin.
If the degree of error read on the machinists adjustable square is equal to or less
than 1 degree, proceed as follows:
" Using an Allen key, slacken the eccentric pin grub screw and rotate it until
the error is corrected.
If instead, the degree of error read on the machinists adjustable square is greater
than 1 degree, proceed as follows:
" Remove the eccentric pin completely.
