Assemblies and Parts Lists: 8-32

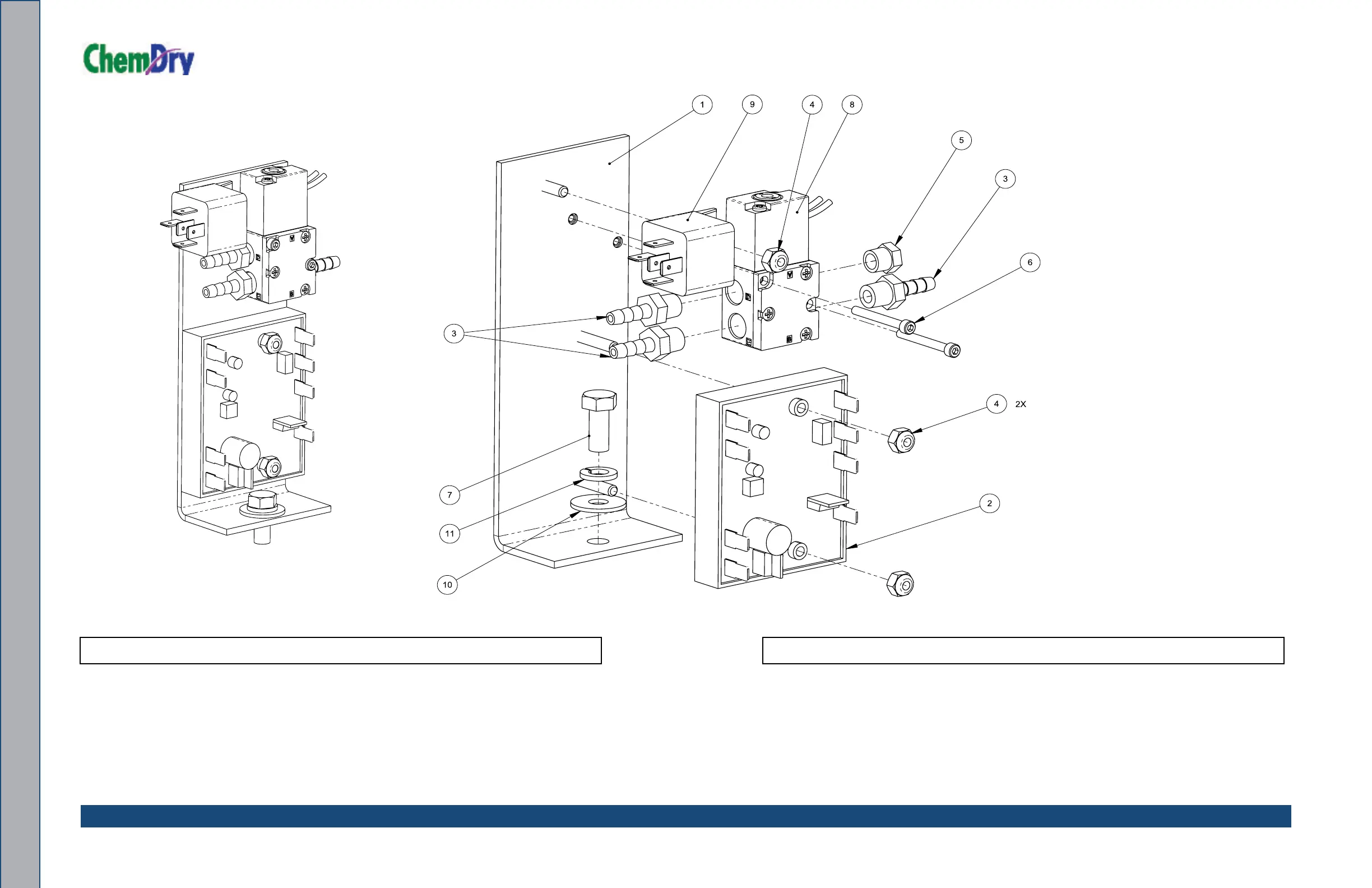

Figure 8-26. Solenoid Valve Assembly
610-026-747 Rev. B
Solenoid Valve Assembly Parts List
Item Part Number Description Qty
1 000-015-1295 Bracket, Temp Control - Coated 1
2 000-074-125 Controller, Temp Single Analog Input - RTD 1
3 000-052-293 Insert, #23 (1/8” NPT X 3/16” Barb) 3
4 000-094-034 Nut, #10-24UNC Hex Nylock 3
5 000-106-014 Plug, Vent 1
6 000-143-700 Screw, #6-32UNC X 1.25” Lg. Socket Head 2
7 000-143-012 Screw, 5/16”-18UNC X 3/4” Lg. 1
8 000-169-226 Solenoid, Air Actuator 4- Way Valve 1
9 000-157-022 Switch, Relay 1
10 000-174-004 Washer, 5/16” Flat, USS 1
11 000-174-018 Washer, 5/16” Lock 1
Item Part Number Description Qty
