8-33: Assemblies and Parts Lists
Back Pressure Switch Mount - CTS 403 Assembly Parts List
Item Part Number Description Qty
1 000-015-1295 BRACKET, TEMP CONTROL - COATED 1
2 000-056-006 FUSE HOLDER, IN-LINE - WEATHERPROOF 2
3 000-056-010 FUSE, 25 AMP 2
4 000-094-034 NUT, #10-24UNC HEX NYLOCK 3
5 000-143-788 SCREW, #2-56UNC X 5/8” LG. PAN PHILLIPS S/S 2
6 000-143-012 SCREW, 5/16”-18UNC x 3/4” LG. HEX HEAD 1
7 000-157-172 SWITCH, PRESSURE 1.125 PSI 1
8 000-157-022 SWITCH, RELAY 12V 1
9 000-174-049 WASHER, 5/16” FLAT 1
10 000-174-018 WASHER, 5/16” LOCK 1
Item Part Number Description Qty

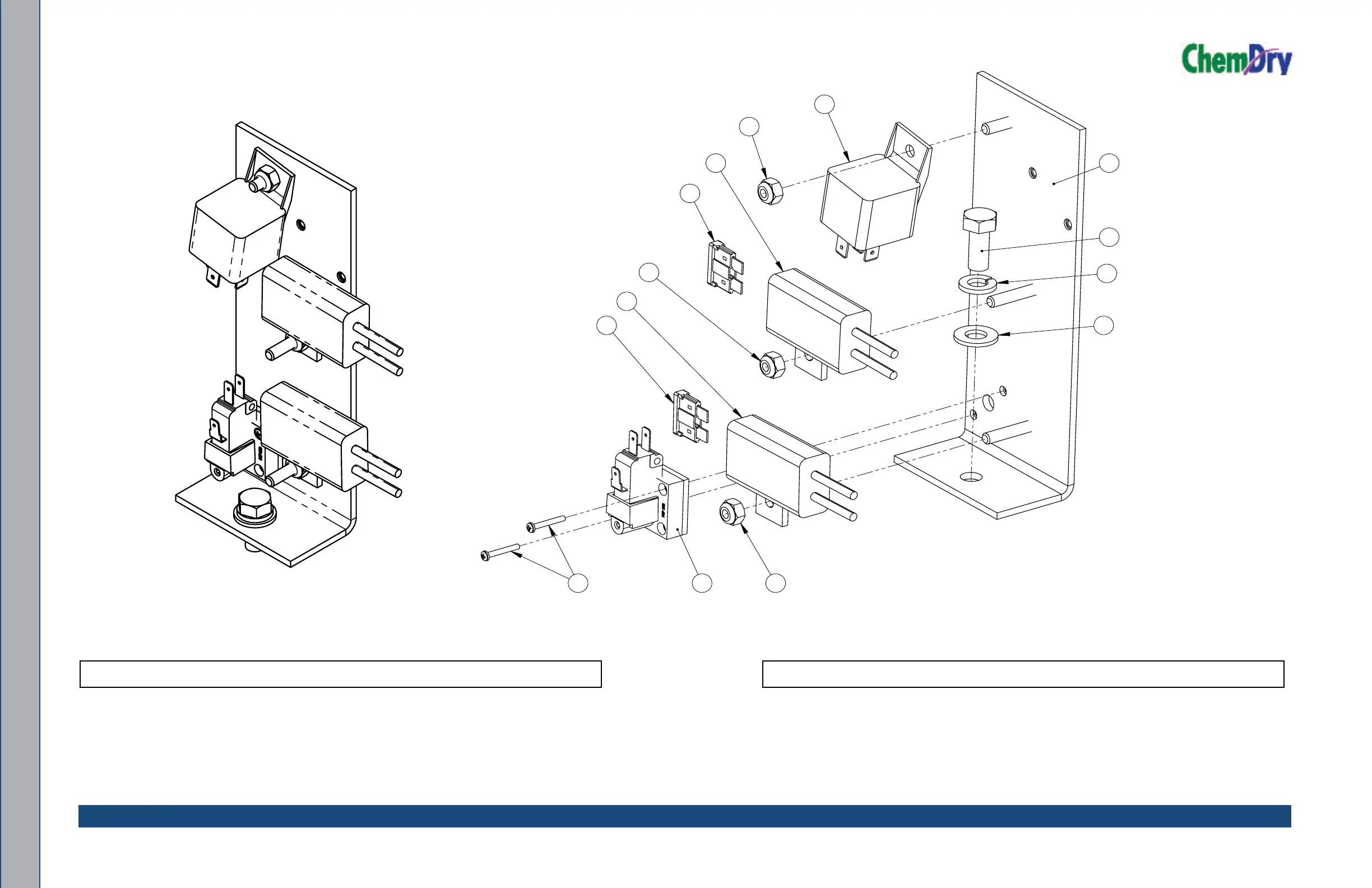

Figure 8-27. Back Pressure Switch Mount - CTS 403 Assembly
610-021-749 Rev. A
8
4
3
2
4
2
3
5 7 4
1
6
10
9
LTR
REVISION DESCRIPTION
CODE
DATE
BY
CHKD
APPVD
A
RELEASE DRAWING.
NEW
12/19/2019
L.O.L.
M.B.B. M.B.B.
ITEM
NO.
QTY.
DESCRIPTION
MATERIAL
PART NO.
10 1
WASHER, 5/16" LOCK
S. STEEL
000-174-018
9 1
WASHER, 5/16" FLAT
18-8 S.
STEEL
000-174-049
8 1
SWITCH, RELAY 12V
VARIOUS
000-157-022
7 1
SWITCH, PRESSURE 1.125 PSI
VARIOUS
000-157-172
6 1
SCREW, 5/16"-18UNC x 3/4" LG. HEX HEAD
S. STEEL
000-143-012
5 2
SCREW, #2-56UNC X 5/8" LG. PAN PHILLIPS S/S
S. STEEL
000-143-788
4 3
NUT, #10-24UNC HEX NYLOCK
S. STEEL
000-094-034
3 2
FUSE, 25 AMP
VARIOUOS
000-056-010
2 2
FUSE HOLDER, IN-LINE - WEATHERPROOF
VARIOUS
000-056-006
1 1
BRACKET, TEMP CONTROL - COATED
ASTM A1008
CS TYPE B
000-015-1295
D
C
B
A
B
C
D
1
2
3
4
8
7
6
5
4
3
2
1
DRAWN
CHECKED
APPVD
SCALE: 1:1
SHEET 1 OF 1
8
7
6
5
A
PROPRIETARY INFORMATION
11015 47th Avenue West,
Mukilteo, Washington 98275
B
SIZE
TOLERANCES
.X=
.1
.XX=
.03
.XXX=
.010
ANGULAR =
2°
BREAK ALL SHARP EDGES 0.005-.015
UNLESS OTHERWISE NOTED
DIMENSIONS ARE IN INCHES
PART NUMBER
WEIGHT:
APPLICATION
NEXT ASSY
USED ON
L.O.L.
12/19/2019
12/19/2019
12/19/2019
REV
A
ASSEMBLY, BACK PRESSURE SWITCH MOUNT
- CTS 403
MACHINE
FINISH
125
M.B.B.
M.B.B.
CTS 403 FLEX
PRJ000242
610-001-749
- - -
- - -
- - -
- - -
- - -
- - -
- - -
- - -
610-021-749
CODE:
1.036
8
4
3
2
4
2
3
5 7 4
1
6
10
9
LTR
REVISION DESCRIPTION
CODE
DATE
BY
CHKD
APPVD
A
RELEASE DRAWING.
NEW
12/19/2019
L.O.L.
M.B.B. M.B.B.
ITEM
NO.
QTY.
DESCRIPTION
MATERIAL
PART NO.
10 1
WASHER, 5/16" LOCK
S. STEEL
000-174-018
9 1
WASHER, 5/16" FLAT
18-8 S.
STEEL
000-174-049
8 1
SWITCH, RELAY 12V
VARIOUS
000-157-022
7 1
SWITCH, PRESSURE 1.125 PSI
VARIOUS
000-157-172
6 1
SCREW, 5/16"-18UNC x 3/4" LG. HEX HEAD
S. STEEL
000-143-012
5 2
SCREW, #2-56UNC X 5/8" LG. PAN PHILLIPS S/S
S. STEEL
000-143-788
4 3
NUT, #10-24UNC HEX NYLOCK
S. STEEL
000-094-034
3 2
FUSE, 25 AMP
VARIOUOS
000-056-010
2 2
FUSE HOLDER, IN-LINE - WEATHERPROOF
VARIOUS
000-056-006
1 1
BRACKET, TEMP CONTROL - COATED
ASTM A1008
CS TYPE B
000-015-1295
D
C
B
A
B
C
D
1
2
3
4
8
7
6
5
4
3
2
1
DRAWN
CHECKED
APPVD
SCALE: 1:1
SHEET 1 OF 1
8
7
6
5
A
PROPRIETARY INFORMATION
11015 47th Avenue West,
Mukilteo, Washington 98275
B
SIZE
TOLERANCES
.X=
.1
.XX=
.03
.XXX=
.010
ANGULAR =
2°
BREAK ALL SHARP EDGES 0.005-.015
UNLESS OTHERWISE NOTED
DIMENSIONS ARE IN INCHES
PART NUMBER
WEIGHT:
APPLICATION
NEXT ASSY
USED ON
L.O.L.
12/19/2019
12/19/2019
12/19/2019
REV
A
ASSEMBLY, BACK PRESSURE SWITCH MOUNT
- CTS 403
MACHINE
FINISH
125
M.B.B.
M.B.B.
CTS 403 FLEX
PRJ000242
610-001-749
- - -
- - -
- - -
- - -
- - -
- - -
- - -
- - -
610-021-749
CODE:
1.036
