HydraMaster CTS 403 Flex - Diverter Valve Actuator Assembly Parts List

8-23: Assemblies and Parts Lists

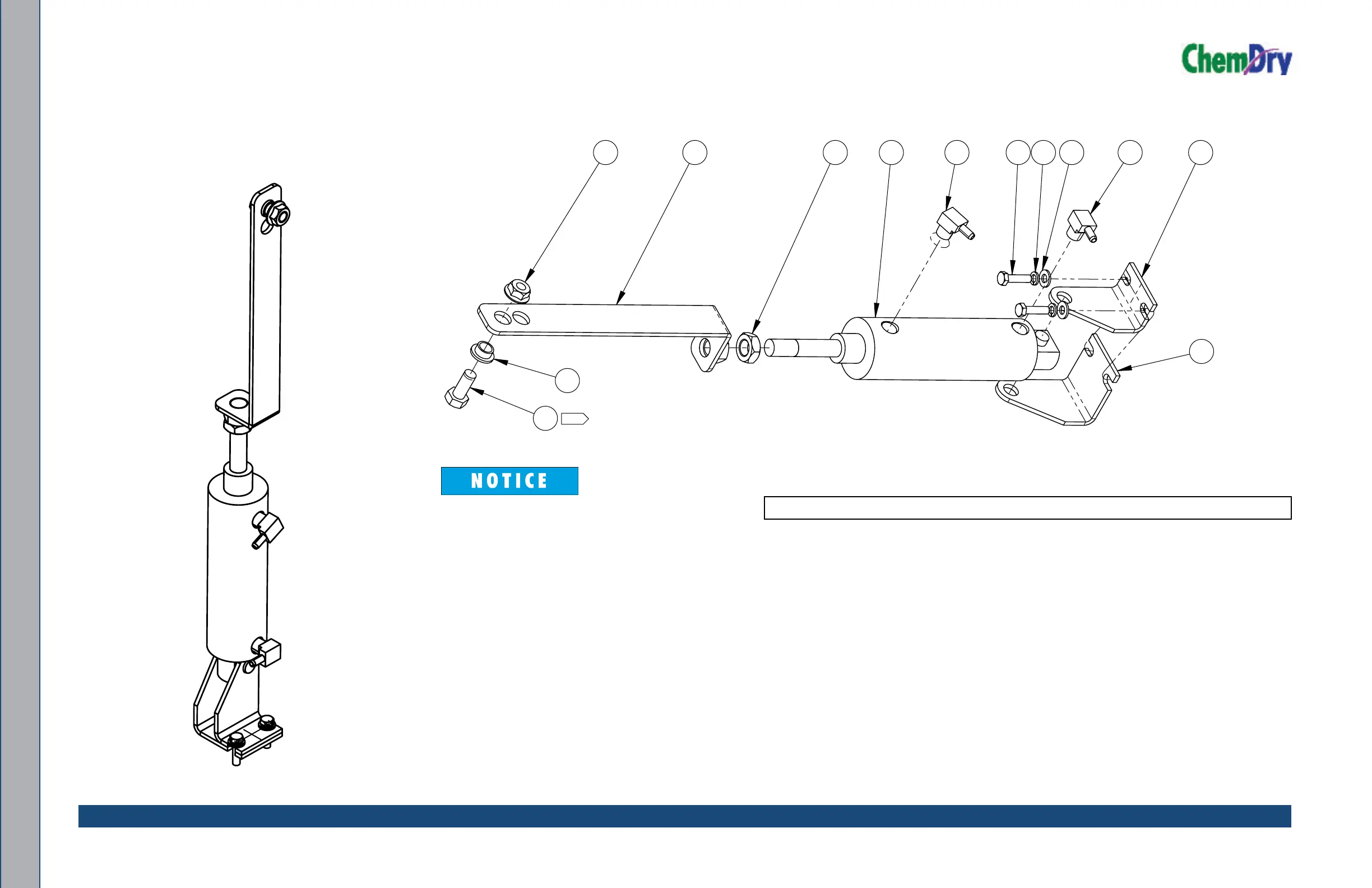

Figure 8-19. Diverter Valve Actuator Assembly
610-014-728 Rev. F
Diverter Valve Actuator Assembly Parts List
1 000-015-016 Bracket Actuator - Coated 1
2 000-015-750 Bracket, Air Cylinder Mount - Inner Coated 1
3 000-015-748 Bracket, Air Cylinder Mount - Outer - Coated 1
4 000-052-106 Insert, 1/8” NPT X 5/32” Barb X 90 Degree 2
5 000-094-092 Nut, 7/16”-20UNF Hex Jam 1
6 000-094-117 Nut, 5/16”-18UNC Hex Spiralock 1
7 000-143-012 Screw, 5/16”-18UNC X 3/4” Lg. 1
8 000-143-132 Screw, #10-24UNC X 0.75” Lg. Hex Head 2
9 000-154-207 Spacer, Ø0.625 X 0.25” Lg. Flanged 1
10 000-169-169 Valve, Air Cylinder 1
11 000-174-001 Washer, #10 Flat 2
12 000-174-014 Washer, #10 Lock 2
Item Part Number Description Qty
See Figure 8-1 for sealant information.
2
3
11
2X
12
2X
8
2X
45
7
1
9
106 4
B3
