Operating Instructions: 2-4
STARTUP PROCEDURE - TILE
1. Connect fresh water to Fresh Water Supply inlet.
The inlet water may require a pressure reducing valve in cases where the water
pressure is higher than 85 psi.
2. Connect solution hose to tile solution outlet and desired cleaning tool.
The water box must be full prior to starting the truckmount.
3. Turn the key to “START”. Pull the choke and start with the throttle in IDLE position.
4. After the engine starts, push the choke in.
5. Adjust the throttle to full throttle.
6. Select “TILE CLEANING” on the Solution Control switch (see Figure 2-3).

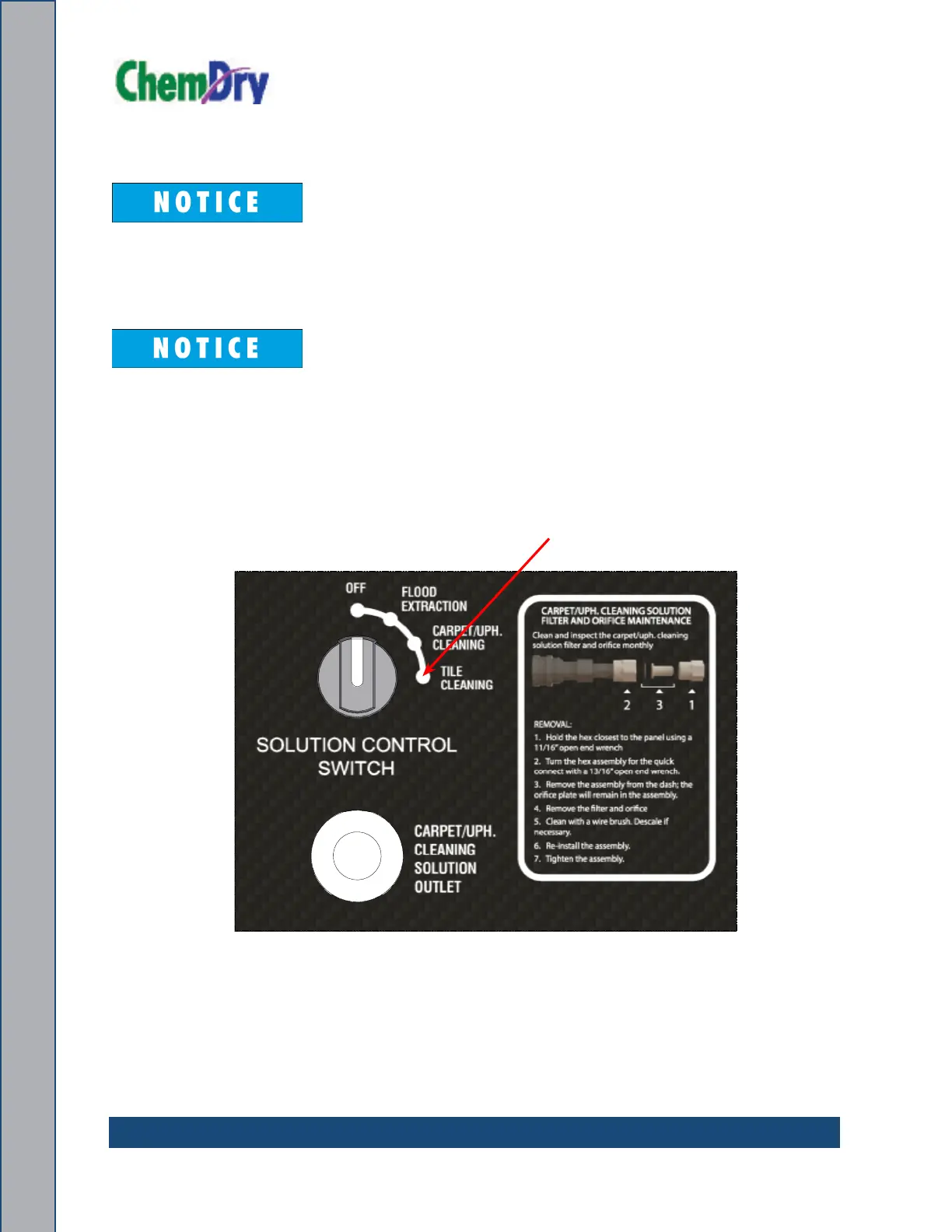

Figure 2-3. Select “TILE” on Solution Control Switch
