8-41: Assemblies and Parts Lists

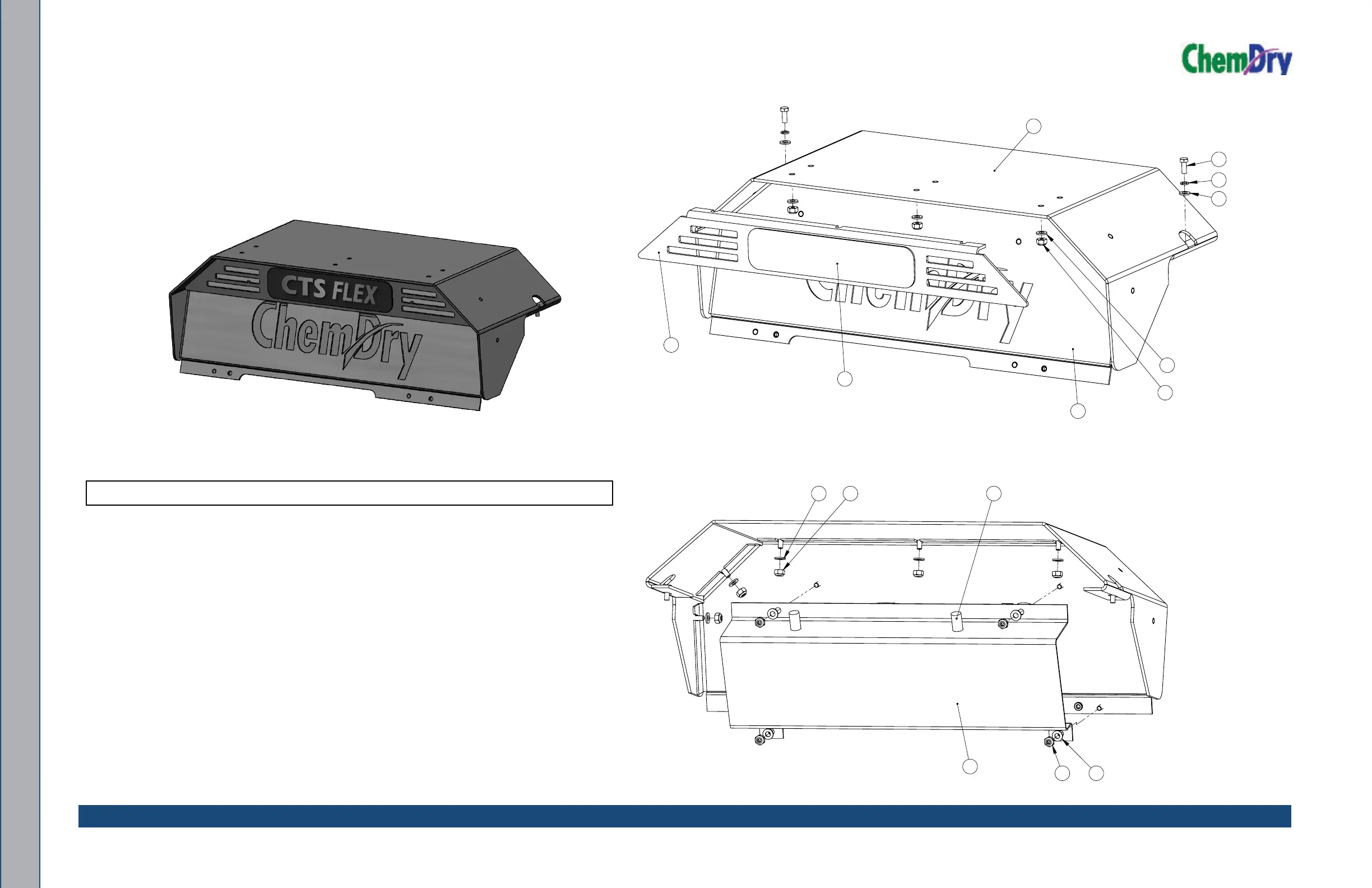

Figure 8-33. Top Cover - CTS 403 FLEX Assembly
610-022-749 Rev. A
1
9
2X
11
2X
10
2X
10
3X
4
3X
7
2
6
8
10
7X
4
7X
5
4X
10
4X
3
2X
LTR
REVISION DESCRIPTION
CODE
DATE
BY
CHKD
APPVD
A
RELEASE DRAWING
NEW
01/03/2020
L.O.L.
M.B.B. M.B.B.
ITEM NO.
QTY.
DESCRIPTION
MATERIAL
PART NO.
11 2
WASHER, #10 LOCK
S. STEEL
000-174-014
10 16
WASHER, #10 FLAT
S. STEEL
000-174-001
9 2
SCREW, #10-24UNC x 0.50" LG. HEX HEAD
S. STEEL
000-143-126
8 1
PLATE, LED DEFLECTOR
AISI 304 2B
000-105-810
7 1
PANEL, BROW FRONT - CTS 403
AISI 304 #4
000-100-398
6 1
PANEL, BROW END - COATED TITAN 325
ASTM A1008
CS TYPE B
000-100-388
5 4
NUT, #10-32UNF HEX NYLOCK
S. STEEL
000-094-058
4 10
NUT, #10-24UNC HEX NYLOCK
S. STEEL
000-094-034
3 2
LAMP, 12V LED 12MM PANEL MOUNT - BLUE
VARIOUS
000-084-027
2 1
LABEL, DOME - CTS FLEX
POLYESTER
000-081-559
1 1
COVER, MACHINE TOP - COATED TITAN 325
STEEL
000-041-921
D
C
B
A
B
C
D
1
2
3
4
5
6
7
8
8
7
6
5
4
3
2
1
E
F
E
F
A
ASSEMBLY, TOP COVER - CTS 403 FLEX
A
REV
610-022-749
01/03/2020
01/03/2020
01/03/2020
USED ON
NEXT ASSY
APPLICATION
WEIGHT:
PART NUMBER
UNLESS OTHERWISE NOTED
DIMENSIONS ARE IN INCHES
BREAK ALL SHARP EDGES 0.005-.015
SIZE
C
11015 47th Avenue West,
Mukilteo, Washington 98275
PROPRIETARY INFORMATION
SHEET 1 OF 1
SCALE: 1:2
APPVD
CHECKED
DRAWN
125
MACHINE
FINISH
L.O.L.
M.B.B.
M.B.B.
PRJ000245
CTS 403 FLEX
- - -- - -
610-050-749
- - -- - -
- - -- - -
- - - - - -
TOLERANCES
.X=
.1
.XX=
.03
.XXX=
.010
ANGULAR =
2°
CODE:
14.035
Top Cover - CTS 403 Flex Assembly Parts List
Item Part Number Description Qty
1 000-041-921 COVER, MACHINE TOP - COATED TITAN 325 1
2 000-081-559 LABEL, DOME - CTS FLEX 1
3 000-084-027 LAMP, 12V LED 12MM PANEL MOUNT - BLUE 2
4 000-094-034 NUT, #10-24UNC HEX NYLOCK 10
5 000-094-058 NUT, #10-32UNF HEX NYLOCK 4
6 000-100-388 PANEL, BROW END - COATED TITAN 325 1
7 000-100-398 PANEL, BROW FRONT - CTS 403 1
8 000-105-810 PLATE, LED DEFLECTOR 1
9 000-143-126 SCREW, #10-24UNC x 0.50” LG. HEX HEAD 2
10 000-174-001 WASHER, #10 FLAT 16
11 000-174-014 WASHER, #10 LOCK 2
