8-15: Assemblies and Parts Lists

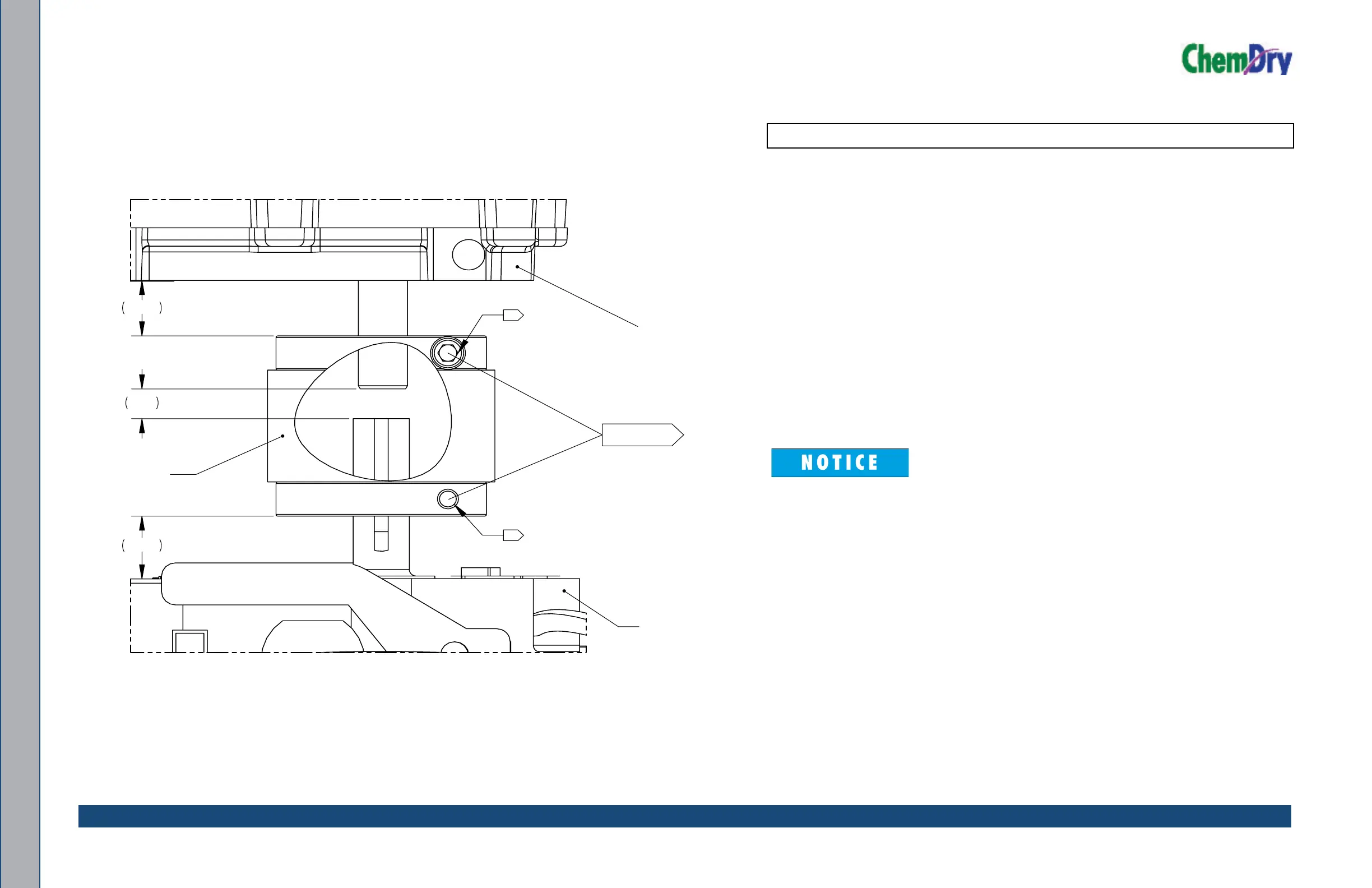

Figure 8-13. Blower Assembly - View 2 of 2
610-002-747 Rev. B
Blower Assembly Parts List
1 000-001-140 Adapter, 2 1/2” Npt To 2 1/2” Od Tube - Coated 1
2 000-001-141 Adapter, 2.5” Mnpt X 2.5” Od Elbow - Coated 1
3 000-111-135 Blower, 3006 Competitor Trilobe 1
4 000-052-061 Bushing, 3/8” Npt X 1/4” Fpt 2
5 000-033-057 Clamp, 1” Cushion Loop 2
6 000-052-085 Elbow, 1/4” Npt Street 2
7 000-068-794 Hose Assembly, 3/8” I.d. Hi Temp Rubber X 17” Lg. Drain 1
8 000-068-794 Hose Assembly, 3/8” I.d. Hi Temp Rubber X 17” Lg. Drain 1
9 000-052-106 Insert, 1/8” Npt X 5/32” Barb X 90° 2
10 000-094-015 Nut, 3/8”-16Unc Hex 2 Way Locking 4
11 000-143-200 Screw, 3/8”-16Unc X 1.50” Lg. Hex Head Grade 8 4
12 000-174-004 Washer, 5/16” Flat, Uss 8
13 000-174-068 Washer, Blower Feet - Coated 4
Item Part Number Description Qty
See Figure 8-1 for adhesive/sealant information.
NOTES:
1. SEE ENG-45975 OR ADHESIVE MATERIAL
PRODUCTION LINE REFERENCE CARD
FOR SEALANT INFORMATION.
CRIMP HOSE CLAMPS
SO THAT HOSES WILL
NOT PULL THROUGH
ADD TIE WRAP TO SECURE
BOTH ENDS TOGETHER
8
5
11
4X
12
4X
12
4X
10
4X
4
2X
6
2X
1
7
3
2
9
13
4X
B
0.56
1.055
1.195
COUPLER
ENGINE
BLOWER
TORQUE TO
30 FT.LBS
B1
B1
TORQUE TO
40 FT LBS
A3
A1
000-027-112
CAP, OIL SIGHT GLASS
000-027-112
CAP, OIL SIGHT GLASS
A1A3
A3
B1
ITEM NO.
QTY
.
DESCRIPTION
MATERIAL
PART NO.
13 4
WASHER, BLOWER FEET - COATED
ASTM A36
000-174-068
12 8
WASHER, 5/16" FLAT, USS
STEEL
000-174-004
11 4
SCREW, 3/8"-16UNC x 1.50" LG. HEX HEAD GRADE 8
STEEL
000-143-200
10 4
NUT, 3/8"-16UNC HEX 2 WAY LOCKING
STEEL Z/P
000-094-015
9 2
INSERT, 1/8" NPT x 5/32" BARB x 90°
BRASS
000-052-106
8 1
HOSE ASSEMBLY, 3/8" I.D. HI TEMP RUBBER X 17" LG. DRAIN
VARIOUS
000-068-794
7 1
HOSE ASSEMBLY, 3/8" I.D. HI TEMP RUBBER X 17" LG. DRAIN
VARIOUS
000-068-794
6 2
ELBOW, 1/4" NPT STREET
BRASS
000-052-085
5 2
CLAMP, 1" CUSHION LOOP
VARIOUS
000-033-057
4 2
BUSHING, 3/8" NPT x 1/4" FPT
BRASS
000-052-061
3 1
BLOWER, 3006 COMPETITOR TRILOBE
STEEL
000-111-135
2 1
ADAPTER, 2.5" MNPT X 2.5" OD ELBOW - COATED
STEEL
000-001-141
1 1
ADAPTER, 2 1/2" NPT TO 2 1/2" OD TUBE - COATED
STEEL
000-001-140
LTR
REVISION DESCRIPTION
CODE
DATE
BY
CHKD
APPVD
A
RELEASED DRAWING.
ECR #2773
6/16/2017
P.E.
C.I.R.
ECRB
B
UPDATED COUPLER ALIGNMENT DRAWING TO
ACCOMEDIATE CTS 403 DESIGN.
NA
03/11/2020
P.E.
M.B.B. M.B.B.
D
C
B
A
A
B
C
D
1
2
3
4
5
6
7
8
8
7
6
5
4
3
2
1
E
F
E
F
MACHINE
FINISH
125
SCALE: 1:4
SHEET 1 OF 1
PROPRIETARY INFORMATION
11015 47th Avenue West,
Mukilteo, Washington 98275
D
SIZE
BREAK ALL SHARP EDGES 0.005-.015
UNLESS OTHERWISE NOTED
DIMENSIONS ARE IN INCHES
PART NUMBER
WEIGHT:
APPLICATION
NEXT ASSY
USED ON
610-002-747
REV
ASSEMBLY, BLOWER - CTS 403 FLEX
B
PRJ000245
CTS 403 FLEX
610-050-749
- - - - - -
- - -- - -
- - - - - -
- - - - - -
ECRB
C.I.R.
P.E.
DRAWN
CHECKED
APPVD
6/14/2017
6/14/2017
6/14/2017
TOLERANCES
.X=
.1
.XX=
.03
.XXX=
.010
ANGULAR =
2°
CODE:
115.53
