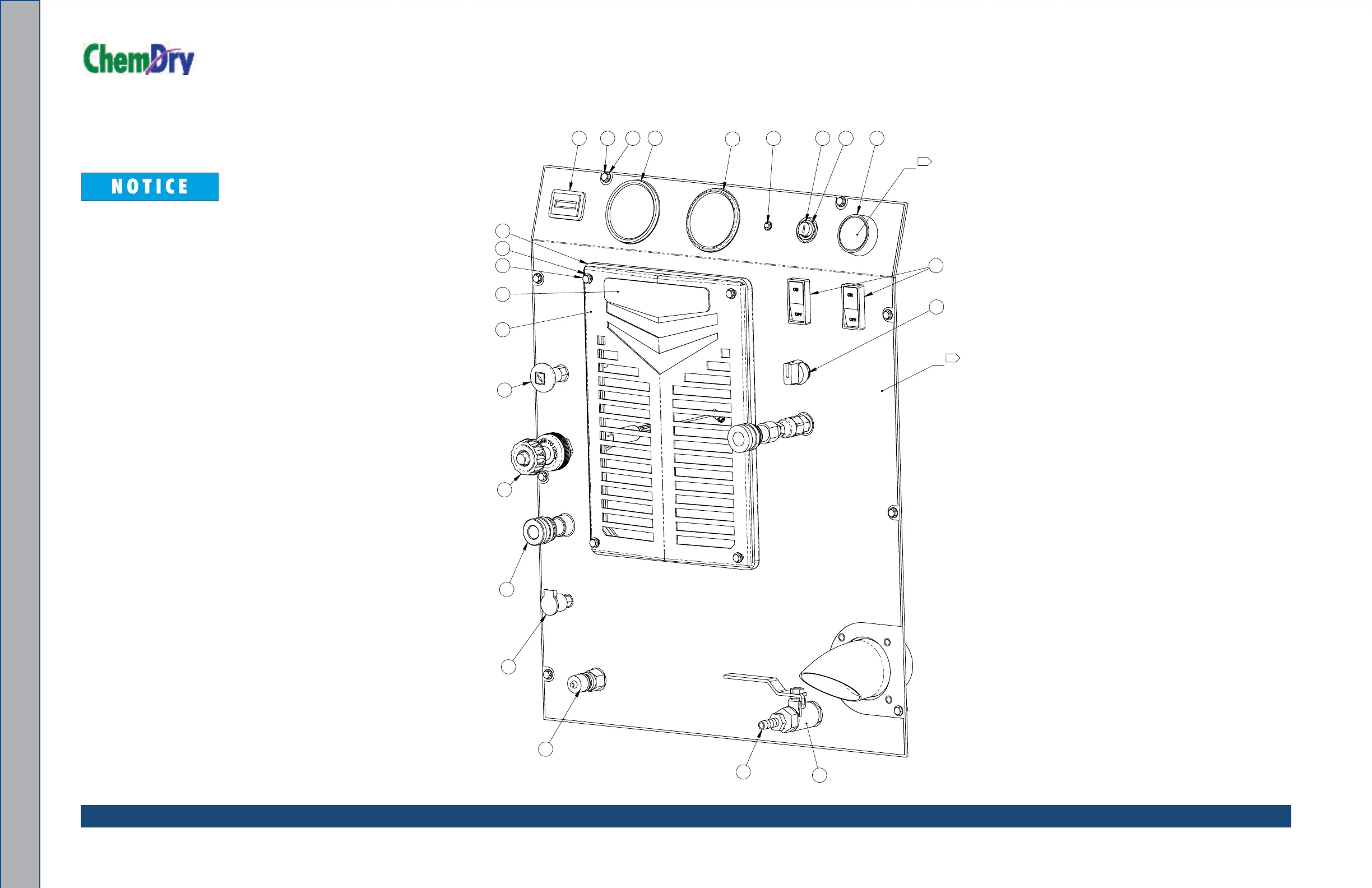

Figure 8-14. Dash Assembly - View 1 of 2
All labels part of label set P/N 000-081-555.
Individual labels not available for purchase.
17 9
8
33 3630
8X
40
8X
32
34
28
5
27
4
3
25
37
31
4X
40
4X
11
38
16 45
000-081-556
LABEL, DASH
000-081-410
LABEL, THERMOSTAT
2
2
15
26
19
1
23
7
10
24
2 44
4X
22
4X
49
12 49 12
46
13
21
42
39
18
6
29
20
A3
A3
A3
A3
A3
A3
A2
A2
35
48
41
5043
47
47
C
15.0°
824
NOTES:
1. SEE ENG-45975 OR ADHESIVE MATERIAL PRODUCTION
LINE REFERENCE CARD FOR SEALANT INFORMATION.
2.
ITEMS ARE PART OF LABEL SET 000-081-555.
B
B
B
B
B
B
ITEM NO.
QTY.
DESCRIPTION
MATERIAL
PART NO.
50 2
WASHER, SWITCH LOCK
STEEL
000-174-046
49 2
WASHER, 7/8" I.D. x 1.50" O.D. x 0.090" THK.
S. STEEL
000-174-028
48 1
WASHER, 5/8" I.D. x 7/8" O.D. x 0.010" THK
S. STEEL
000-174-030
47 2
WASHER, 5/8" FLAT
STEEL
000-174-008
46 2
WASHER, 3/8" FLAT
AISI 304
000-174-032
45 1
WASHER, 21/32" I.D. x 27/32" O.D. NYLON
NYLON
000-174-058
44 4
WASHER, 1/4" FLAT S/S
S. STEEL
000-174-003
43 1
WASHER, 1/2" I.D. x 3/4" O.D. x 0.010" THK
S. STEEL
000-174-062
42 2
WASHER, 1/2" FLAT
STEEL
000-174-007
41 1
WASHER, 1/2 SAE H/D
STEEL
000-174-012
40 12
WASHER, #10 FLAT
S. STEEL
000-174-001
39 1
VALVE, 3000 PSI POP OFF
S.STEEL
000-169-243
38 1
VALVE, 3/8" NPT FULL PORT BALL
ALUMINUM BRONZE
000-169-064
37
3.33'
TRIMLOK, 3/8" x 1/8" RUBBER
RUBBER
000-131-131
36 1
THERMOSTAT, BULB & CAPILLARY
VARIOUS
000-149-025
35 1
TEE, 1/4" FEMALE SS
S. STEEL
000-052-189
34 1
SWITCH, ROTARY, 4 POSITION
VARIOUS
000-157-060
33 1
SWITCH, IGNITION - B & S
VARIOUS
000-157-017
32 2
SWITCH, 20 AMP ROCKER
VARIOUS
000-157-040
31 4
SCREW, #10-24UNC x 1.25" LG. HEX HEAD
S. STEEL
000-143-171
30 8
SCREW, #10-24UNC x 0.50" LG. HEX HEAD
S. STEEL
000-143-126
29 1
REGULATOR, HI PSI SNUBBER
BRASS
000-135-052
28 1
QUICK CONNECT, 660 3/8" BRASS W/ EPDM O-RING
BRASS
000-052-052
27 1
QUICK CONNECT, 440 FEMALE w/ EPDM O-RING
BRASS
000-052-051
26 1
QUICK CONNECT, 1/4" FEMALE S/S
AISI 303
000-052-690
25 1
PANEL, GRILL - TITAN 325/425
AISI 304 #4
000-100-390
24 1
PANEL, DASH - COATED E01
ASTM A1008 CS
TYPE B
000-100-391
23 1
ORIFICE, PLATE 0.052"
303 S.S.
000-180-031
22 4
NUT, 1/4"-20UNC NYLOCK
S STEEL
000-094-009
21 1
NIPPLE, 3/8" JIC x 1/4" NPT
BRASS
000-052-533
20 1
NIPPLE, 1/4" SAE x 1/4" NPT
BRASS
000-052-527
19 1
NIPPLE, 1/4" S/S HEX
S. STEEL
000-052-095
18 1
NIPPLE, 1/4" NPT x 1/4" JIC
S. STEEL
000-052-526
17 1
METER, RECTANGULAR HOUR w/o BEZEL
VARIOUS
000-074-170
16 1
LIGHT, RED LED INDICATOR MINI
VARIOUS
000-084-011
15 1
LABEL, DOME - 403
POLYESTER
000-131-131
14 1
LABEL SET - CTS 403 FLEX
POLYCARBONATE
000-081-555
13 1
INSERT, #F23 (1/8" FPT x 3/16" BARB)
BRASS
000-052-096
12 2
INSERT, #68 (3/8" NPT x 1/2" BARB)
BRASS
000-052-105
11 1
INSERT, #66 (3/8" NPT x 3/8" BARB)
BRASS
000-052-104
10 1
HOUSING, 1/4" S.S. FILTER
303 S.S.
000-052-803
9 1
GAUGE, 30" HG. VACUUM - HYDRAMASTER
VARIOUS
000-074-017
8 1
GAUGE, PRESSURE 0 -1500 PSI, UPC #401406.
VARIOUS
000-074-007
7 1
FILTER CARTRIDGE, 1/4" SS
303 S.S.
000-049-253
6 1
ELBOW, 1/4" FPT x FPT
BRASS
000-052-088
5 1
CUP, GRAVITY FEED OIL BLOWER LUBE PORT
S.STEEL
000-052-272
4 1
CABLE, THROTTLE - MODIFIED 403
VARIOUS
000-025-032
3 1
CABLE, CHOKE WITH DETENT
VARIOUS
000-025-003
2 1
ADAPTER, 2.5" EXHAUST TURNDOWN - COATED
STEEL
000-001-148
1 1
ADAPTER, S.S. JET X 1/4" FNPT
303 S.S.
000-052-804
LTR
REVISION DESCRIPTION
CODE
DATE
BY
CHKD
APPVD
A
RELEASE DRAWING.
NEW
12/19/2019
L.O.L.
M.B.B. M.B.B.
B
ADDED 174-012, 174-028, 174-062, 174-030 & 174-
046; 174-008 WAS QTY. 4.
-
01/21/2020
L.O.L.
M.B.B. M.B.B.
D
C
B
A
A
B
C
D
1
2
3
4
5
6
7
8
8
7
6
5
4
3
2
1
E
F
E
F
MACHINE
FINISH
125
SCALE: 1:2
SHEET 1 OF 1
PROPRIETARY INFORMATION
11015 47th Avenue West,
Mukilteo, Washington 98275
D
SIZE
BREAK ALL SHARP EDGES 0.005-.015
UNLESS OTHERWISE NOTED
DIMENSIONS ARE IN INCHES
PART NUMBER
WEIGHT:
APPLICATION
NEXT ASSY
USED ON
610-018-749
REV
ASSEMBLY, DASH - CTS 403 FLEX
B
PRJ000245
CTS 403 FLEX
610-050-749
- - - - - -
- - -- - -
- - - - - -
- - - - - -
M.B.B.
M.B.B.
L.O.L.
DRAWN
CHECKED
APPVD
12/18/2019
01/21/2020
01/21/2020
TOLERANCES
.X=
.1
.XX=
.03
.XXX=
.010
ANGULAR =
2°
CODE:
21.06
