Assemblies and Parts Lists: 8-60

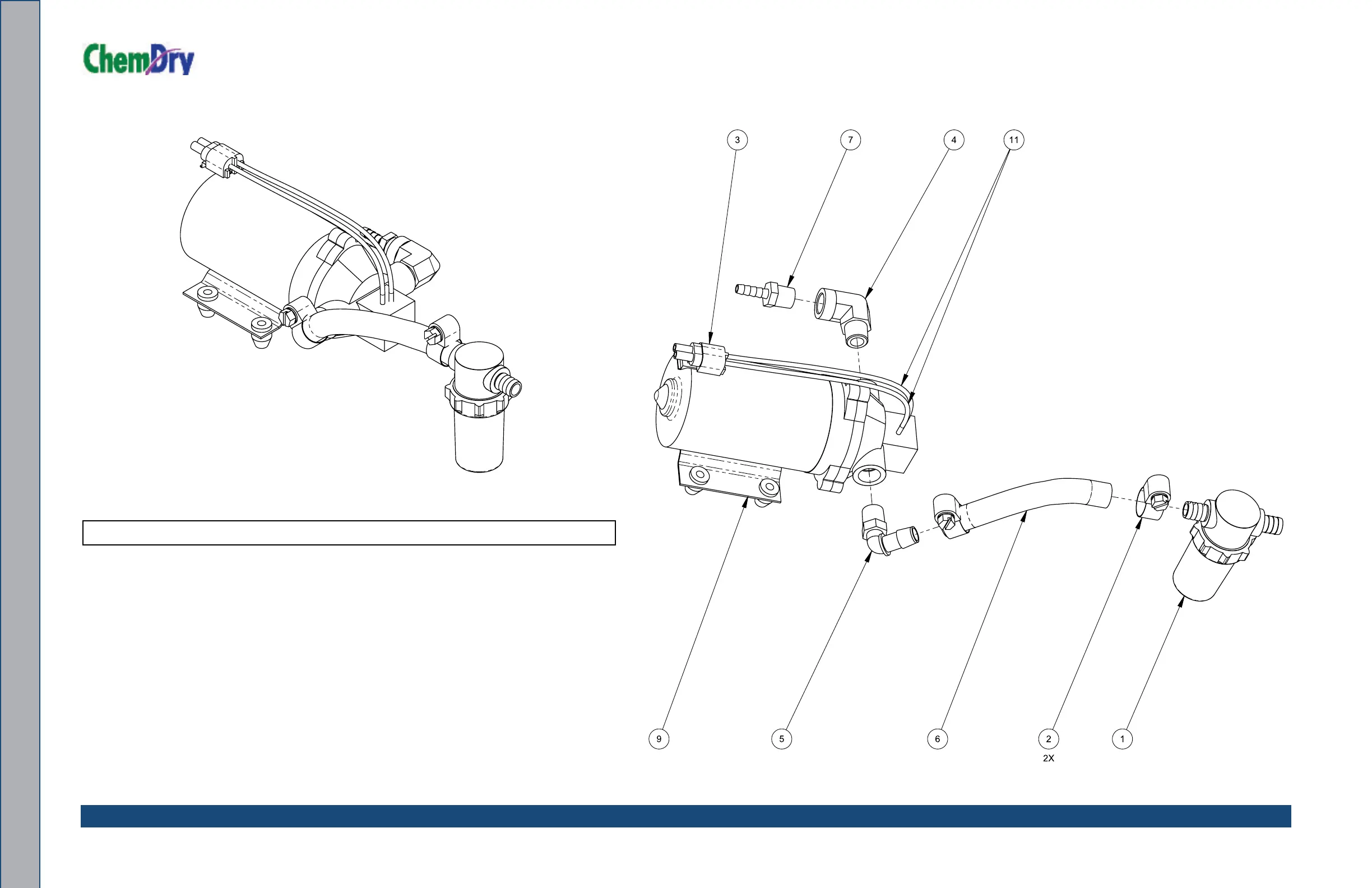

Figure 8-49. Flex Pump Assembly
601-021-800 Rev. B
Flex Pump Assembly Parts List
1 000-049-588 Strainer 1
2 000-033-004 Clamp, Size #6 Mini Hose 2
3 000-037-048 Connector, 2 Pole Water Tight Female 1
4 000-052-747 Elbow,3/8 S/S Street 90 1
5 000-052-355 Elbow, 3/8” NPT X 1/2” Hose, GFBN 1
6 000-068-1032 Hose, 1/2” I.D. PVC X 8” Lg. - Braided -
Pump to Strainer 1
7 000-052-749 Insert, #64 (3/8” NPT X 1/4” Barb) S/S 1
8 000-037-051 Pin, Female 2
9 000-111-588 Pump 1
10 000-147-030 Seal, Water Tite Wire Connector 2
11 000-063-021 Wire, 1/4” Loom 1.5 ft
Item Part Number Description Qty
