Operating Instructions: 2-2
STARTUP PROCEDURE - CARPET/UPHOLSTERY
1. Drain Water Box.
2. Connect solution hose to Carpet/Upholstery Solution outlet and desired cleaning
tool.
3. Turn the key to ”Start”. Pull the choke and start with the throttle in the “IDLE” position.
(“IDLE” position – see Figure 2-1).
4. After the engine starts, push the choke in.
5. Adjust the throttle to full throttle.
6. Select Carpet/Upholstery Cleaning mode on the solution control switch.

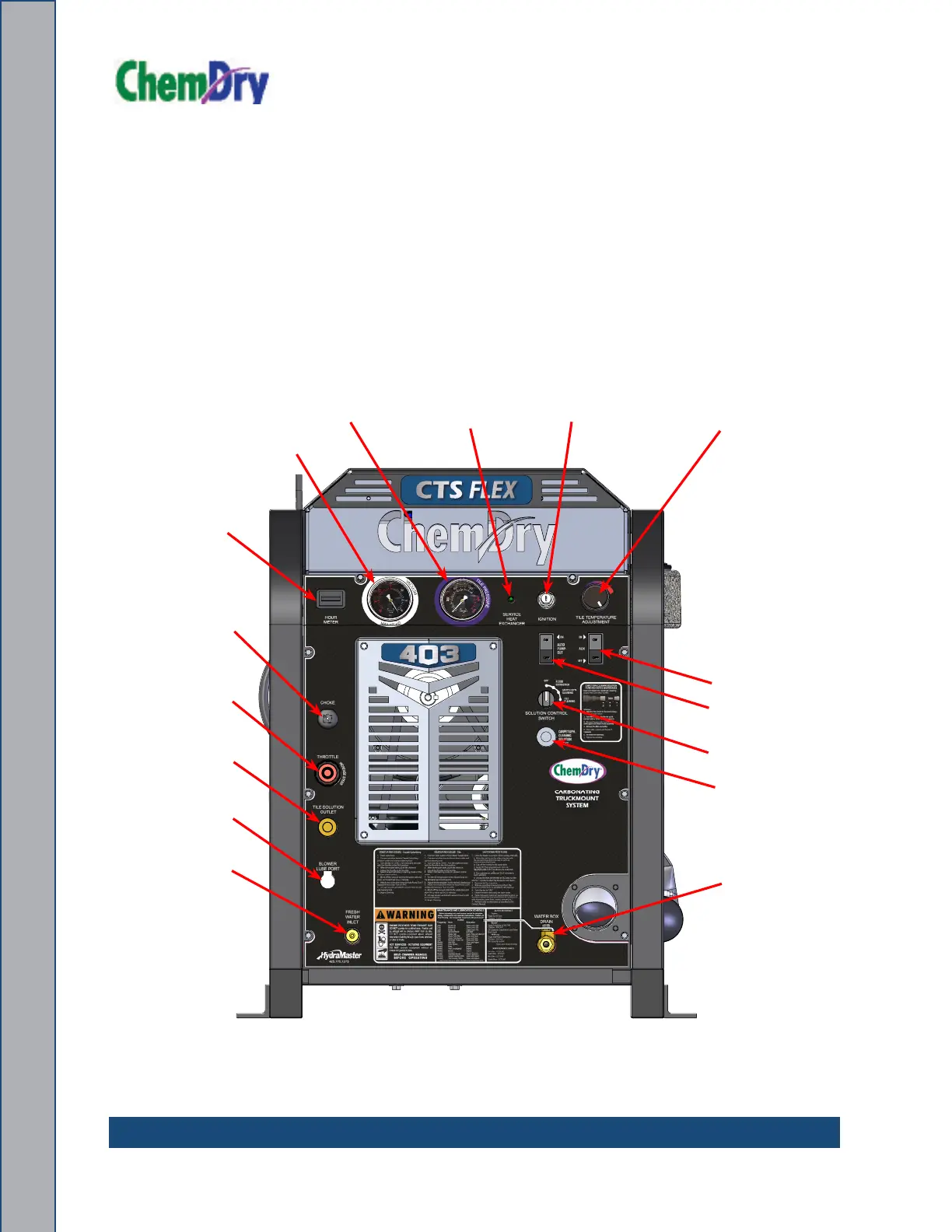

Figure 2-1. CTS 403 Flex Dash Assembly
APO Switch
LTR
REVISION DESCRIPTION
CODE
DATE
BY
CHKD
APPVD
D
C
B
A
A
B
C
D
1
2
3
4
5
6
7
8
8
7
6
5
4
3
2
1
E
F
E
F
MACHINE
FINISH
125
SCALE: 1:8
SHEET 1 OF 2
PROPRIETARY INFORMATION
11015 47th Avenue West,
Mukilteo, Washington 98275
D
SIZE
BREAK ALL SHARP EDGES 0.005-.015
UNLESS OTHERWISE NOTED
DIMENSIONS ARE IN INCHES
PART NUMBER
WEIGHT:
APPLICATION
NEXT ASSY
USED ON
610-050-749
REV
ASSEMBLY, CONSOLE - CTS 403 FLEX
PRJ000245
CTS 403 FLEX 50
750-010-749-10
750-010-758-10
CTS 403 FLEX 35/15
- - -- - -
- - - - - -
- - - - - -
M.B.B.
M.B.B.
L.O.L.
DRAWN
CHECKED
APPVD
01/15/2020
01/15/2020
01/15/2020
TOLERANCES
.X=
.1
.XX=
.03
.XXX=
.010
ANGULAR =
2°
CODE:
567.10
Ignition and
Key
Tile
Temperature Control
Choke
Throttle
Tile
Solution Outlet
Blower Lube
Port
Vacuum Gauge
Pressure Gauge
Water Box
Drain
Incoming Fresh
Water
Solution
Control Switch
Carpet/Uph.
Cleaning
Solution
Outlet
AUX Switch
Service Heat
Exchanger Light
Hour
Meter
