8-39: Assemblies and Parts Lists

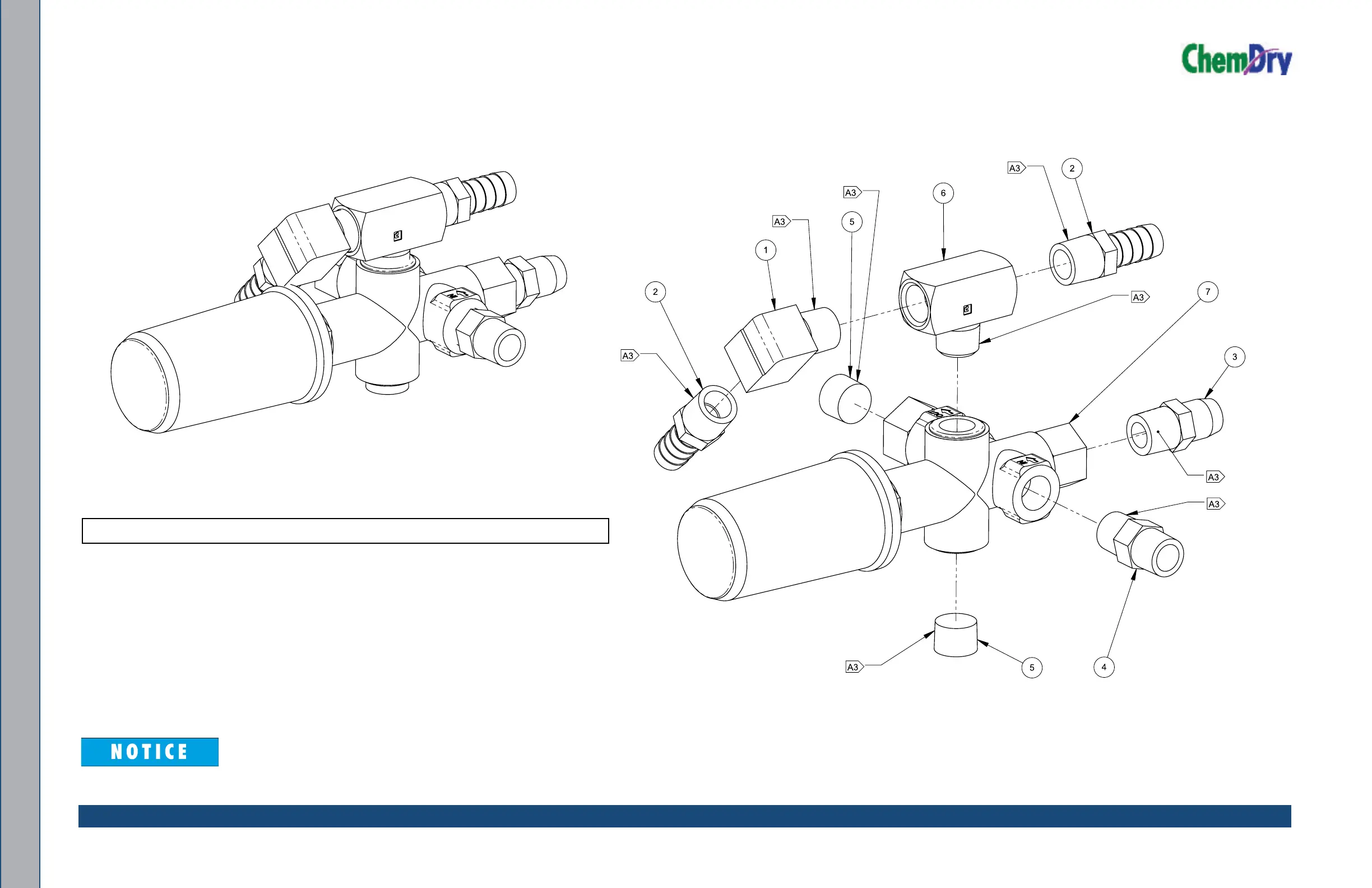

Figure 8-31. By-Pass Valve Assembly
610-009-747 Rev. B
See Figure 8-1 for adhesive/sealant information.
By-Pass Valve Assembly Parts List
1 000-052-086 Elbow, 3/8” NPT Street 1
2 000-052-105 Insert, #68 (3/8” NPT X 1/2” Barb) 2
3 000-052-528 Nipple, 3/8” M JIC X 3/8” NPT 1
4 000-052-074 Nipple, 3/8” NPT Hex 1
5 000-106-008 Plug, 3/8” NPT Allen Head 2
6 000-052-447 Tee, 3/8” NPT Male Branch 1
7 000-169-351 Valve, Pressure Regulator-Modied 1
Item Part Number Description Qty
